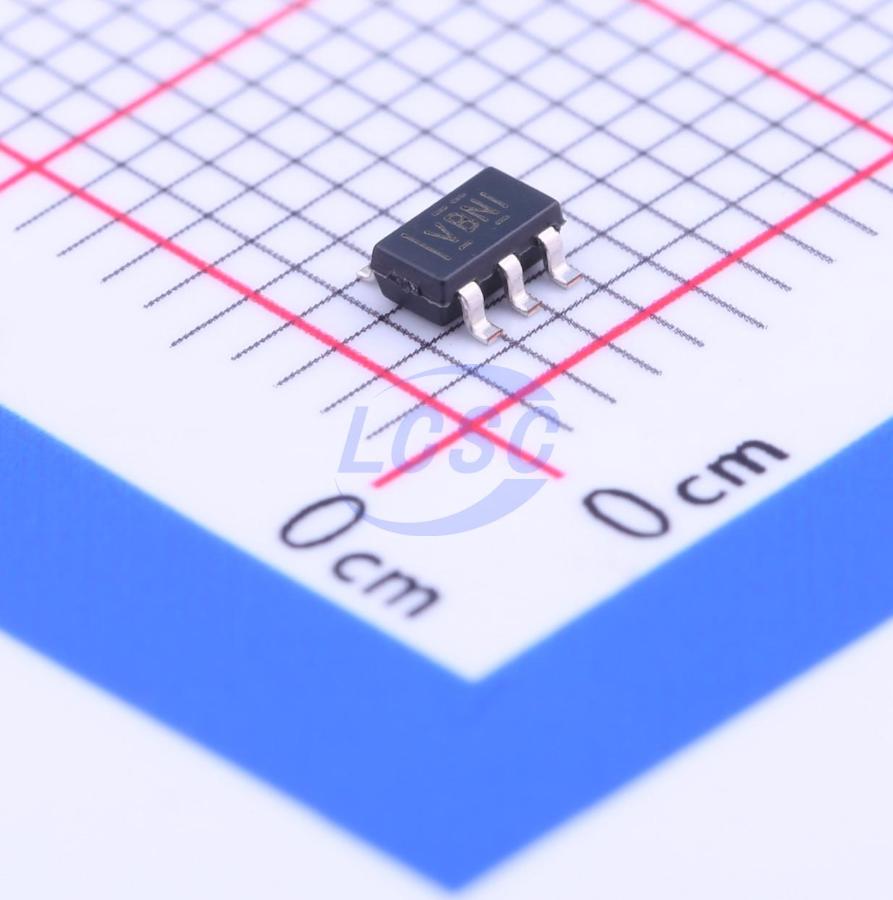

TLV3491AIDBVR
1 850nA 15mV Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Comparators RoHS
Nanopower, Push-Pull Output Comparator
- Manufacturer
- TI
- Manufacturer part #
- TLV3491AIDBVR
- Store part #
- C41155
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,938 in stock
#C41155
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.96 | ₹158.96 |
| 10+ | ₹132.43 | ₹1,324.30 |
| 30+ | ₹117.87 | ₹3,536.10 |
| 100+ | ₹101.33 | ₹10,133.00 |
| 500+ | ₹85.03 | ₹42,515.00 |
| 1,000+ | ₹81.76 | ₹81,760.00 |
1 × ₹158.96
₹158.96
excl. GST
₹187.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV3491AIDBVR
₹158.96 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 1pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Features
- Overvoltage protection
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 1000uV/℃
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 74dB
- Propagation Delay(tpd)
- 6us
- Quiescent Current(Iq)
- 850nA
- Vos - Input Offset Voltage
- 15mV
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
- Response Time (tr)
- 6us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TLV349x family of push-pull output comparators features a fast 6µs response time and <1.2µA (max) nanopower capability, allowing operation from 1.8V - 5.5V. Input common-mode range beyond supply rails make the TLV349x an ideal choice for low-voltage applications. Micro-sized packages provide options for portable and space-restricted applications. The single (TLV3491) is available in SOT23-5 and SO-8. The dual (TLV3492) comes in SOT23-8 and SO-8. The quad (TLV3494) is available in TSSOP-14 and SO-14. The TLV349x is excellent for power-sensitive, low-voltage (2-cell) applications.
Applications
- PORTABLE MEDICAL EQUIPMENT
- WIRELESS SECURITY SYSTEMS
- REMOTE CONTROL SYSTEMS
- HANDHELD INSTRUMENTS
- ULTRA-LOW POWER SYSTEMS
Key features
- VERY LOW SUPPLY CURRENT: 0.8µA (typ)
- INPUT COMMON-MODE RANGE 200mV BEYOND SUPPLY RAILS
- SUPPLY VOLTAGE: +1.8V to +5.5V
- HIGH SPEED: 6µs
- PUSH-PULL CMOS OUTPUT STAGE
- SMALL PACKAGES: SOT23-5 (Single) SOT23-8 (Dual)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV3491AIDBVT#C353022TI · SOT-23-5 | TI | SOT-23-5 | 1 | ₹151.70 · 1 in stock | View |
