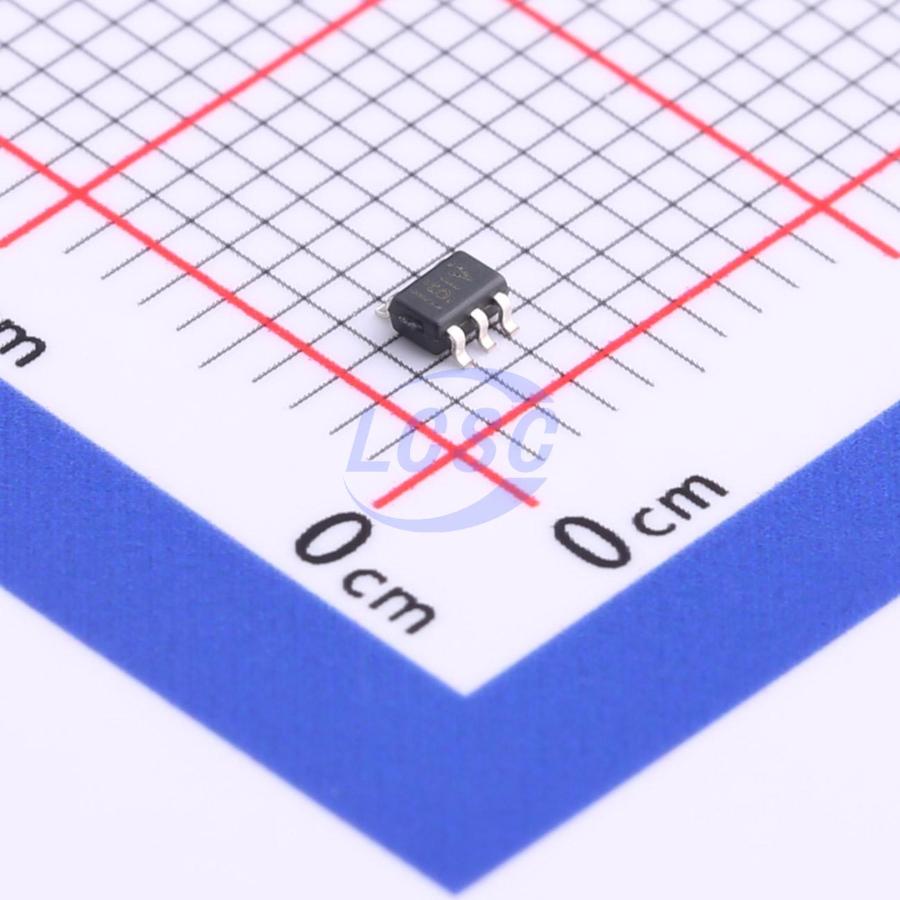

TLV3691IDCKR
1 75nA 3mV Rail-to-rail input SC-70-5 Comparators RoHS
Nanopower comparators, wide supply voltage range, low quiescent current, rail-to-rail input
- Manufacturer
- TI
- Manufacturer part #
- TLV3691IDCKR
- Store part #
- C180352
- Package / case
- SC-70-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,589 in stock
#C180352
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.46 | ₹112.46 |
| 10+ | ₹90.06 | ₹900.60 |
| 30+ | ₹78.74 | ₹2,362.20 |
| 100+ | ₹67.43 | ₹6,743.00 |
| 500+ | ₹60.69 | ₹30,345.00 |
| 1,000+ | ₹57.43 | ₹57,430.00 |
1 × ₹112.46
₹112.46
excl. GST
₹132.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV3691IDCKR
₹112.46 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 8pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 0.45V~3.25V;-3.25V~-0.45V
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 70uV/℃
- Output Type
- Push-pull
- Propagation Delay(tpd)
- 24us
- Input Hysteresis Voltage (Vhys)
- 17mV
- Quiescent Current(Iq)
- 75nA
- Vos - Input Offset Voltage
- 3mV
- Maximum Power Supply Range (Vdd-Vss)
- 6.5V
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 0.9V~6.5V
- Response Time (tr)
- 24us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TLV3691 offers a wide power supply voltage range, a quiescent current as low as 150 nA (maximum), and rail - to - rail inputs. All these features, combined with industry - standard ultra - small packages, make this device an ideal choice for low - voltage and low - power applications in portable electronics and industrial systems. The single - channel, low - power design, along with a wide power supply and temperature range, enables this device to handle almost all applications from consumer to industrial sectors with flexibility. The TLV3691 comes in SC70 - 5 and 1nm×1mm DFN - 6 packages. This device can operate in the extended industrial temperature range from - 40°C to 125°C. The TLV3691 is a nano - power comparator with push - pull output. Operating from 0.9V to 6.5V and consuming a maximum quiescent current of only 200 nA over the temperature range from - 40°C to 125°C, the TLV3691 is ideally suited for portable and industrial applications. The TLV3691 is available in the 5 - pin SC70 and 6 - pin DFN packages.
Applications
- Overvoltage and undervoltage detection
- Window comparator
- Overcurrent detection
- Zero-crossing detection
- System monitoring:
- Smartphones
- Tablets
- Industrial sensors
- Portable medical devices
Key features
- Low quiescent current: 75nA
- Wide supply range: 0.9V to 6.5V, ±0.45V to ±3.25V
- Compact packages: DFN-6 (1mm × 1mm), 5-pin SC70
- Input common-mode range extends 100mV beyond both supply rails
- Response time: 24μs
- Low input offset voltage: ±3mV
- Push-pull output
- Industrial temperature range: -40°C to 125°C
