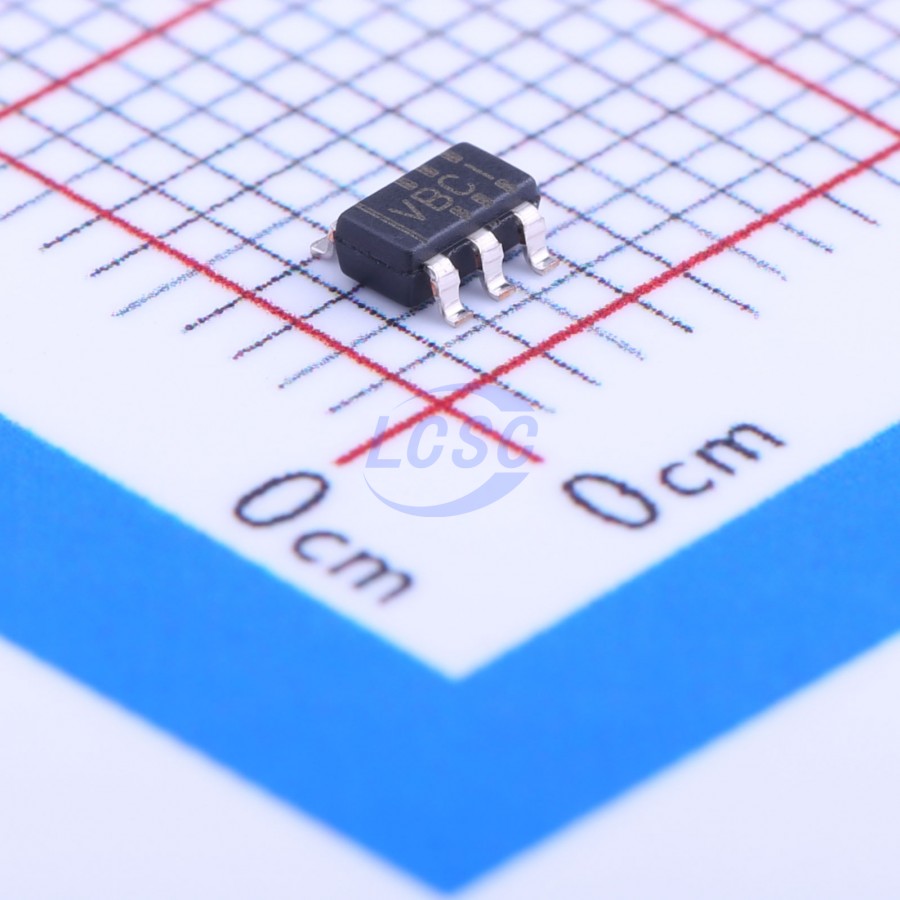

TLV3701IDBVR
1 560nA 250uV Rail-to-rail input SOT-23-5 Comparators RoHS
TLV370x Family of Nanopower, Push-Pull Output Comparators
- Manufacturer
- TI
- Manufacturer part #
- TLV3701IDBVR
- Store part #
- C139630
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,882 in stock
#C139630
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.03 | ₹133.03 |
| 10+ | ₹107.98 | ₹1,079.80 |
| 30+ | ₹95.45 | ₹2,863.50 |
| 100+ | ₹83.15 | ₹8,315.00 |
| 500+ | ₹75.60 | ₹37,800.00 |
| 1,000+ | ₹71.71 | ₹71,710.00 |
1 × ₹133.03
₹133.03
excl. GST
₹156.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV3701IDBVR
₹133.03 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 20pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.25V~8V;-8V~-1.25V
- Ib - Input Bias Current
- 80pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Output Type
- Push-pull
- Propagation Delay(tpd)
- 36us
- Common Mode Rejection Ratio(CMRR)
- 76dB
- Quiescent Current(Iq)
- 560nA
- Vos - Input Offset Voltage
- 250uV
- Maximum Power Supply Range (Vdd-Vss)
- 16V
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2.5V~16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TLV370x is a family of nanopower comparators with only 560 nA per channel supply current, which make this device ideal for battery power and wireless handset applications. The TLV370x has a minimum operating supply voltage of 2.7 V over the extended industrial temperature range (TA = -40°C to 125°C), while having an input common - mode range of -0.1 to VCC + 5 V. The low supply current makes it an ideal choice for battery - powered portable applications where quiescent current is the primary concern. Reverse battery protection guards the amplifier from an overcurrent condition due to improper battery installation. For harsh environments, the inputs can be taken 5 V above the positive supply rail without damage to the device. All members are available in PDIP and SOIC with the singles in the small SOT - 23 package, duals in the MSOP, and quads in the TSSOP package.
Applications
- Portable Battery Monitoring
- Consumer Medical Electronics
- Security Detection Systems
- Handheld Instruments
- Ultra - Low Power Systems
Key features
- Low Supply Current: 560 nA/Per Channel
- Input Common - Mode Range Exceeds the Rails: -0.1 V to VCC + 5 V
- Supply Voltage Range: 2.5 V to 16 V
- Reverse Battery Protection Up to 18 V
- Push - Pull CMOS Output Stage
- Specified Temperature Range:
- 0°C to 70°C – Commercial Grade
- -40°C to 125°C – Industrial Grade
- Ultra - Small Packaging:
- 5 - Pin SOT - 23 (TLV3701)
- 8 - Pin MSOP (TLV3702)
- Universal Op - Amp EVM (Reference SLOU060 for More Information)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV3701QDBVRQ1#C140261TI · SOT-23-5 | TI | SOT-23-5 | 3 | ₹166.23 · 3 in stock | View |
