ChipNobo

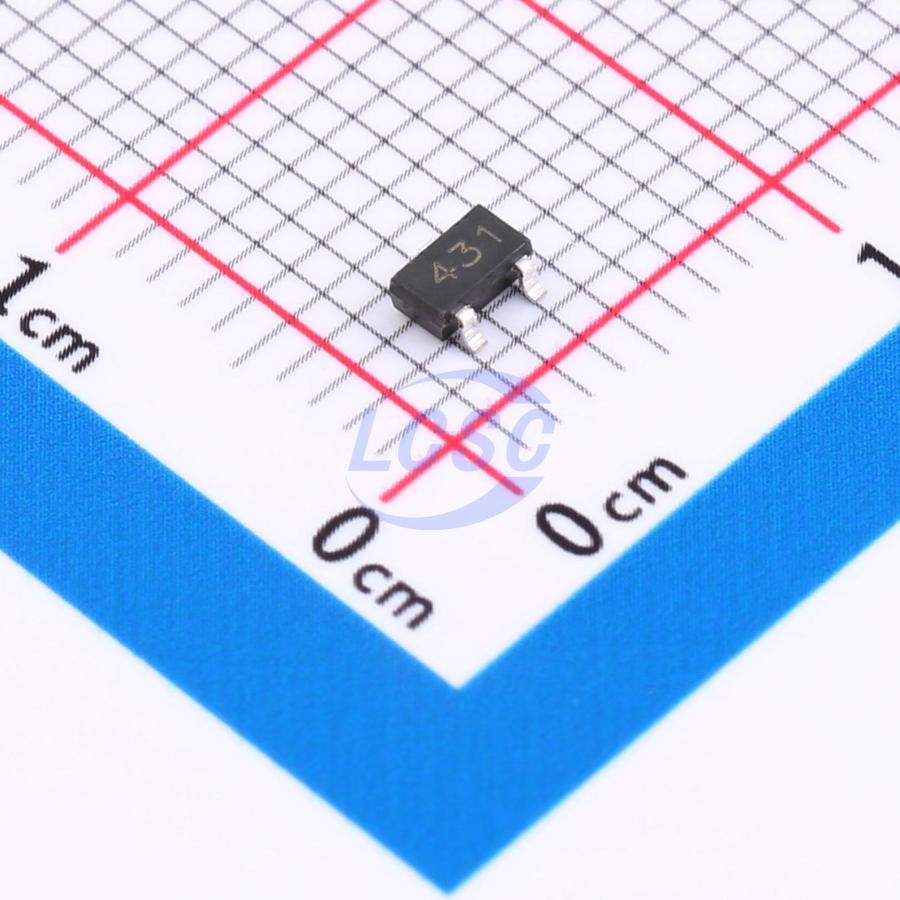

TLV431BQDBZR-CN

2.5V~36V ±2% 100mA Adjustable SOT-23 Voltage Reference

SOT-23RoHSActive

Manufacturer: ChipNobo
Manufacturer part #: TLV431BQDBZR-CN
Store part #: C49006724
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,630 in stock

#C49006724

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹9.29	₹92.90
100+	₹7.34	₹734.00
300+	₹6.38	₹1,914.00
3,000+	₹5.64	₹16,920.00
6,000+	₹5.05	₹30,300.00
9,000+	₹4.76	₹42,840.00

Quantity (min 10, multiples of 10)

10 × ₹9.29

₹92.90

excl. GST

₹109.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV431BQDBZR-CN

₹92.90 for 10 + GST

Specifications

Output Voltage: 2.5V~36V
Tolerance: ±2%
Minimum Cathode Current for Regulation: 500uA
Reference Type: Parallel
Output Current: 100mA
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

TLV431BQDBZR-CN is a programmable shunt voltage reference with guaranteed temperature stability across the full operating temperature range. Using two external resistors, the output voltage can be set to any value between 2.5V and 36V. The TLV431BQDBZR-CN features a wide operating current range of 1mA to 100mA, with a typical dynamic impedance of 0.22Ω.
