TIDatasheet (PDF)

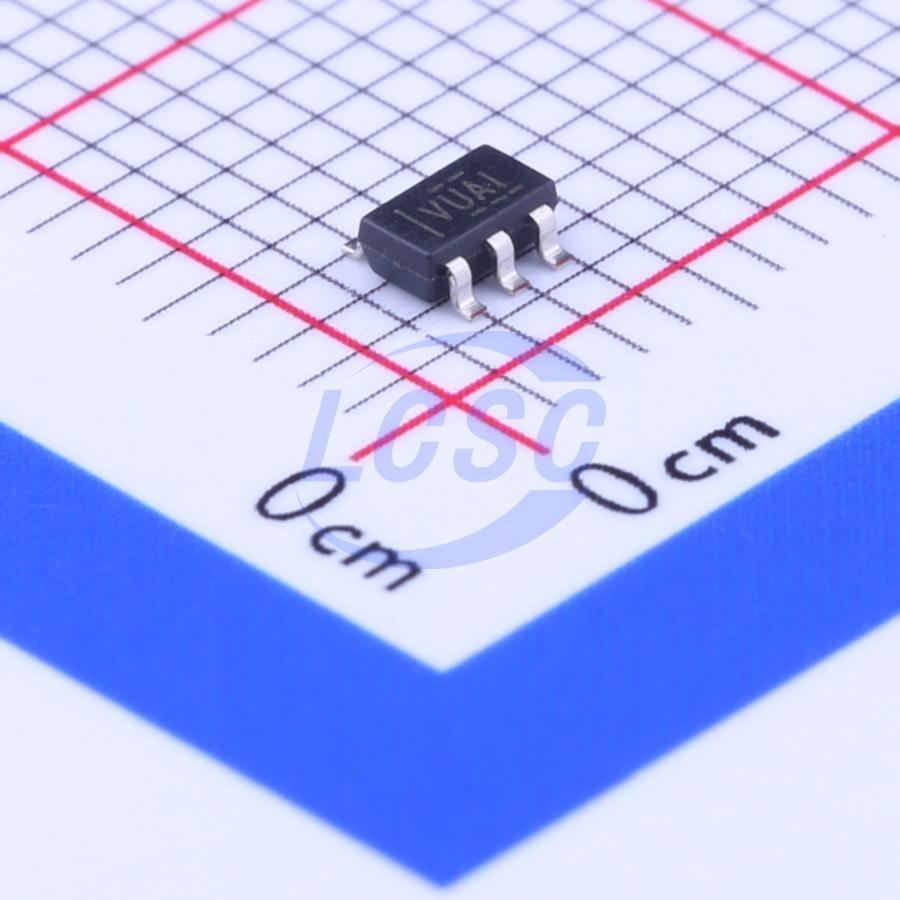

TLV61220DBVR
Boost Switching Regulator IC Adjustable 1.8V~5.5V 1 Output 220mA SOT-23-6
SOT-23-6ROHS CompliantActive
High-Efficiency Low-Input-Voltage Boost Converter
- Manufacturer
- TI
- Manufacturer part #
- TLV61220DBVR
- Store part #
- C111811
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,425 in stock
#C111811
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.69 | ₹138.45 |
| 50+ | ₹22.74 | ₹1,137.00 |
| 150+ | ₹20.63 | ₹3,094.50 |
| 500+ | ₹17.99 | ₹8,995.00 |
| 3,000+ | ₹16.81 | ₹50,430.00 |
| 6,000+ | ₹16.09 | ₹96,540.00 |
5 × ₹27.69
₹138.45
excl. GST
₹163.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV61220DBVR
₹138.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 700mV~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.8V~5.5V
- Output Current
- 220mA
- Quiescent Current
- 900nA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The TLV61220 device provides a power solution for products powered by one, two, or three alkaline, NiCd, or NiMH cells, or a single Li-ion or Li-polymer cell. The achievable output current depends on the input-to-output voltage ratio. The boost converter is based on a hysteretic controller topology with synchronous rectification, achieving maximum efficiency with minimal quiescent current. The output voltage of this adjustable version can be set via an external resistor divider, or can be internally set to a fixed value. The converter can be shut down via a dedicated enable pin. During shutdown, battery consumption is minimized. The device is available in a 6-pin thin SOT-23 package (DBV).
Applications
- Battery-powered applications
- 1 to 3 alkaline, NiCd, or NiMH cells; single Li-Ion or primary lithium cell
- Solar or fuel cell-powered applications
- Consumer and portable medical products
- Personal care products
- White or status LEDs
- Smartphones
Key features
- Up to 95% efficiency under typical operating conditions
- 5.5μA quiescent current
- 0.7V startup input voltage with load
- 0.7V to 5.5V operating input voltage range
- Pass-through function during shutdown
- 200mA minimum switching current
- 1.8V to 5.5V adjustable output voltage range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ9113T6A#C2829460JSCJ · SOT-23-6L | JSCJ | SOT-23-6L | 8,450 | ₹22.25 · 8,450 in stock | View |
 | CJ9112T6A#C2829459JSCJ · SOT-23-6L | JSCJ | SOT-23-6L | 1,475 | ₹17.89 · 1,475 in stock | View |
 | AW36099STR#C52200713AWINIC(Shanghai Awinic Tech) · SOT-23-6L | AWINIC(Shanghai Awinic Tech) | SOT-23-6L | 290 | ₹14.86 · 290 in stock | View |
 | MCP1640BT-I/CHY#C478087MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 4,022 | ₹99.69 · 4,022 in stock | View |
| MCP1640DT-I/CHY#C625336MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 711 | ₹116.36 · 711 in stock | View | |
