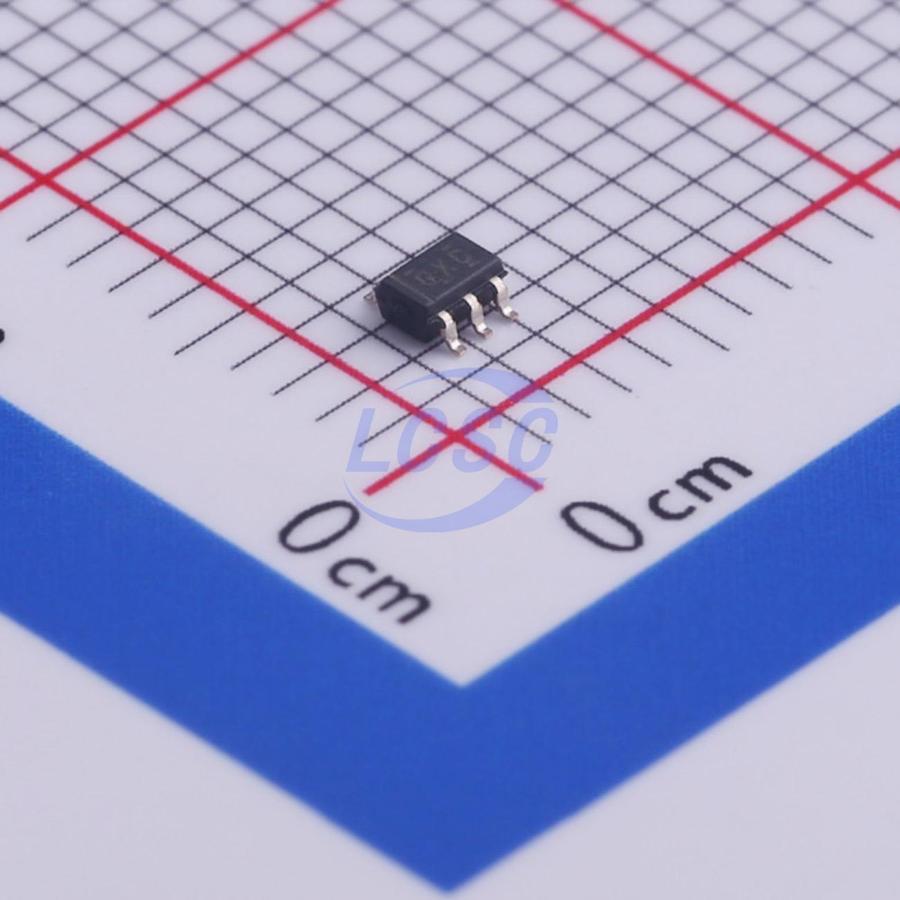

TLV61224DCKR
Boost Fixed 3V 160mA SC-70-6 Voltage Regulators - DC DC Switching Regulators RoHS
SC-70-6ROHS3 CompliantActive
High-Efficiency Boost Converter
- Manufacturer
- TI
- Manufacturer part #
- TLV61224DCKR
- Store part #
- C473358
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
114 in stock
#C473358
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.18 | ₹105.18 |
| 10+ | ₹90.40 | ₹904.00 |
| 30+ | ₹79.98 | ₹2,399.40 |
| 100+ | ₹71.28 | ₹7,128.00 |
| 500+ | ₹68.68 | ₹34,340.00 |
| 1,000+ | ₹66.93 | ₹66,930.00 |
1 × ₹105.18
₹105.18
excl. GST
₹124.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV61224DCKR
₹105.18 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 700mV~3V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3V
- Output Current
- 160mA
- Quiescent Current
- 500nA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.015 g
Overview
The TLV61224 device provides a power-supply solution for products powered by either a single-cell or 2-cell alkaline or NiMH, or 1-cell Li-primary battery. Possible output currents depend on the input-tooutput voltage ratio. The boost converter is based on a hysteretic controller topology using synchronous rectification to obtain maximum efficiency at minimal quiescent currents. The output voltage of this device is set internally to a fixed output voltage of 3 V. The converter can be switched off by a featured enable pin. While being switched off, battery drain is minimized. The device is offered in a 6-pin SC-70 package (DCK) measuring 2 mm × 2 mm to enable small circuit layout size.
Applications
- Battery Powered Applications
- 1- to 2-Cell NiMH or Alkaline 1-Cell Li-Primary
- Consumer and Portable Medical Products
- Personal Care Products
Key features
- Up to 94% Efficiency at Typical Operating Conditions
- 5 μA Quiescent Current
- Operating Input Voltage From 0.7 V to 3 V
- Pass-Through Function During Shutdown
- Output Current of More Than 40 mA From a 1.2-V Input
- Typical Switch Current Rating 400 mA
- Output Overvoltage Protection
- Overtemperature Protection
- Fixed 3-V Output Voltage
- Small 6-Pin SC-70 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV61225DCKR#C316456TI · SC-70-6 | TI | SC-70-6 | 1,806 | ₹138.72 · 1,806 in stock | View |
| TLV61224DCKT#C2070779TI · SC-70-6 | TI | SC-70-6 | On request | ₹205.36 · 0 in stock | View | |
| TLV61225DCKT#C2071729TI · SC-70-6 | TI | SC-70-6 | On request | ₹205.36 · 0 in stock | View | |
