TECH PUBLIC

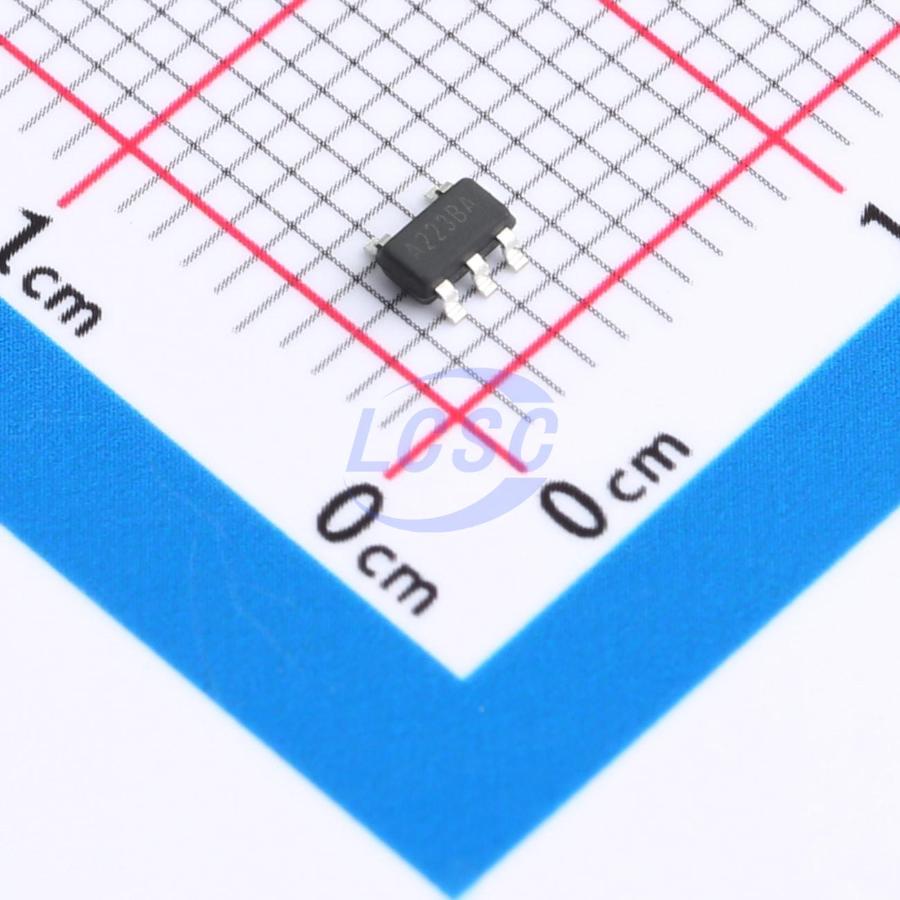

TLV62569DBVR-TP

Buck Switching Regulator IC Adjustable 1 Output 2A SOT-23-5

SOT-23-5RoHSActive

1.5MHz, 2A Step-Down DC-DC Buck Converter

Manufacturer: TECH PUBLIC
Manufacturer part #: TLV62569DBVR-TP
Store part #: C47117578
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,025 in stock

#C47117578

Stock & price checked 39 h ago

Quantity	Unit price	Pack price
5+	₹11.19	₹55.95
50+	₹8.90	₹445.00
150+	₹7.77	₹1,165.50
500+	₹6.91	₹3,455.00
3,000+	₹6.22	₹18,660.00
6,000+	₹5.87	₹35,220.00

Quantity (min 5, multiples of 5)

5 × ₹11.19

₹55.95

excl. GST

₹66.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV62569DBVR-TP

₹55.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Step-down type
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Features: Output discharge;Light load efficient mode
Topology: Buck
Output Type: Adjustable
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 40uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.039 g

Overview

Applications

LCD TV
Set Top Box
Net PC
Mini-Notebook PC
Access Point Router

Key features

Up to 2A Max Output Current
2.7V to 5.5V Input Voltage Range
Fixed 1.5MHz Switching Frequency
Light Load Operation
100% Duty Operation
Internal Compensation
RoHS Compliant and Halogen Free
Compact package: SOT23-5
