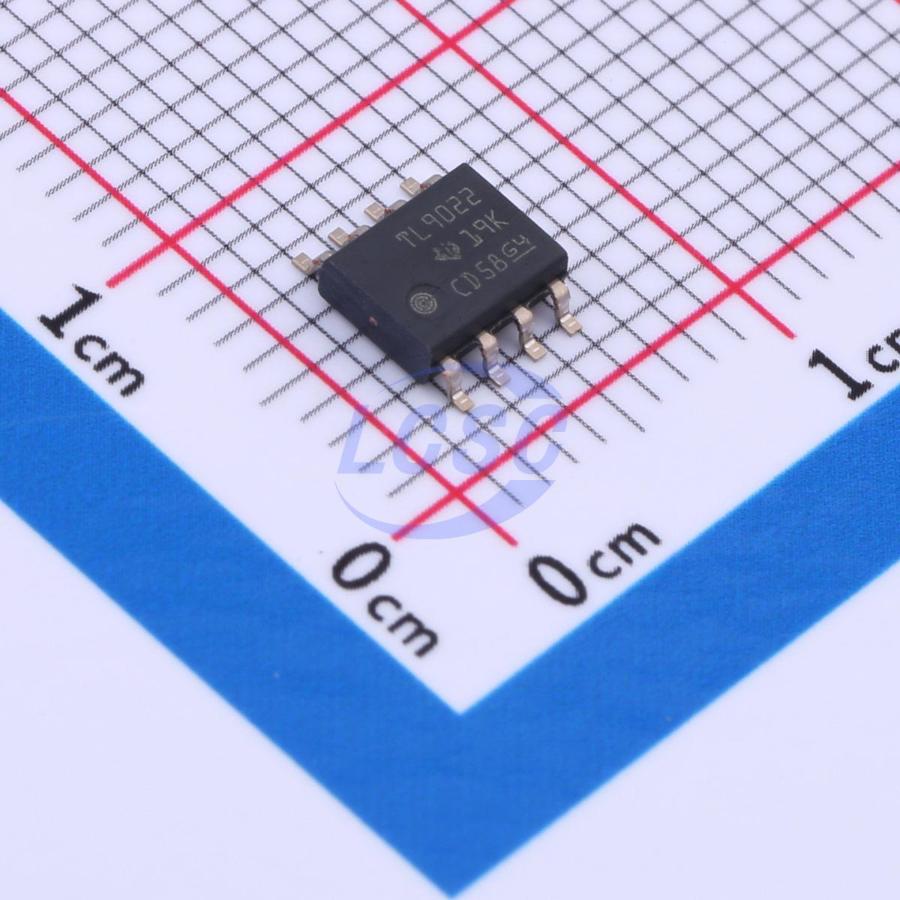

TLV9022DR
2 16uA 300uV Rail-to-rail input SOIC-8 Comparators RoHS
High-precision dual-channel and quad-channel comparators
- Manufacturer
- TI
- Manufacturer part #
- TLV9022DR
- Store part #
- C2871718
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,192 in stock
#C2871718
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹157.85 | ₹157.85 |
| 10+ | ₹140.07 | ₹1,400.70 |
| 30+ | ₹123.37 | ₹3,701.10 |
| 100+ | ₹110.80 | ₹11,080.00 |
| 500+ | ₹105.81 | ₹52,905.00 |
| 1,000+ | ₹103.21 | ₹1,03,210.00 |
1 × ₹157.85
₹157.85
excl. GST
₹186.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV9022DR
₹157.85 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Features
- ESD protection
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 0.5uV/℃
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 100ns
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Quiescent Current(Iq)
- 16uA
- Vos - Input Offset Voltage
- 300uV
- Maximum Power Supply Range (Vdd-Vss)
- 6V
- Rail to Rail
- Rail-to-rail input
- Response Time (tr)
- 3ns
- Single Supply
- 1.65V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The TLV902x and TLV903x are dual and quad comparator families. This family offers low input offset voltage, an integrated power-on reset (POR) circuit, and fault-tolerant inputs, featuring an excellent speed-power combination with a propagation delay of 100 ns. The operating voltage range is from 1.65 V to 5.5 V, and the quiescent supply current per channel is 18 μA. This device family also includes power-on reset (POR) performance, which ensures that the output remains in a known state until the minimum supply voltage is reached, and only after a short period of time does the output start to respond to the input. This prevents output transients during system power-up and power-down. Additionally, these comparators do not produce output phase reversal, and the fault-tolerant input voltage can rise up to 6 V without damaging the device. Therefore, the comparators in this family are well-suited for precise voltage monitoring in harsh and noisy environments. The TLV902x comparators have an open-drain output stage that can be pulled below or above the supply voltage, making them suitable for low-voltage logic and level shifters. The TLV903x comparators have a push-pull output stage that can sink/source milliamperes of current when controlling LEDs or driving capacitive loads such as MOSFET gates. The TLV902x and TLV903x are specifically designed for the industrial temperature range of -40°C to +125°C and are available in standard leaded and leadless packages.
Applications
- Electrical
- Building Automation
- Factory Automation & Control
- Motor Drivers
- Infotainment Systems & Instrument Clusters
Key features
- Supply voltage range: 1.65V to 5.5V
- Precision input offset voltage: 300 μV
- Power-on reset (POR) for known startup
- Fault-tolerant rail-to-rail inputs
- Typical propagation delay: 100ns
- Low quiescent current per channel: 16 μA
- Low input bias current: 5pA
- Open-drain output option (TLV902x)
- Push-pull output option (TLV903x)
- Full temperature range: -40°C to +125°C
- 2kV ESD protection
Same category
