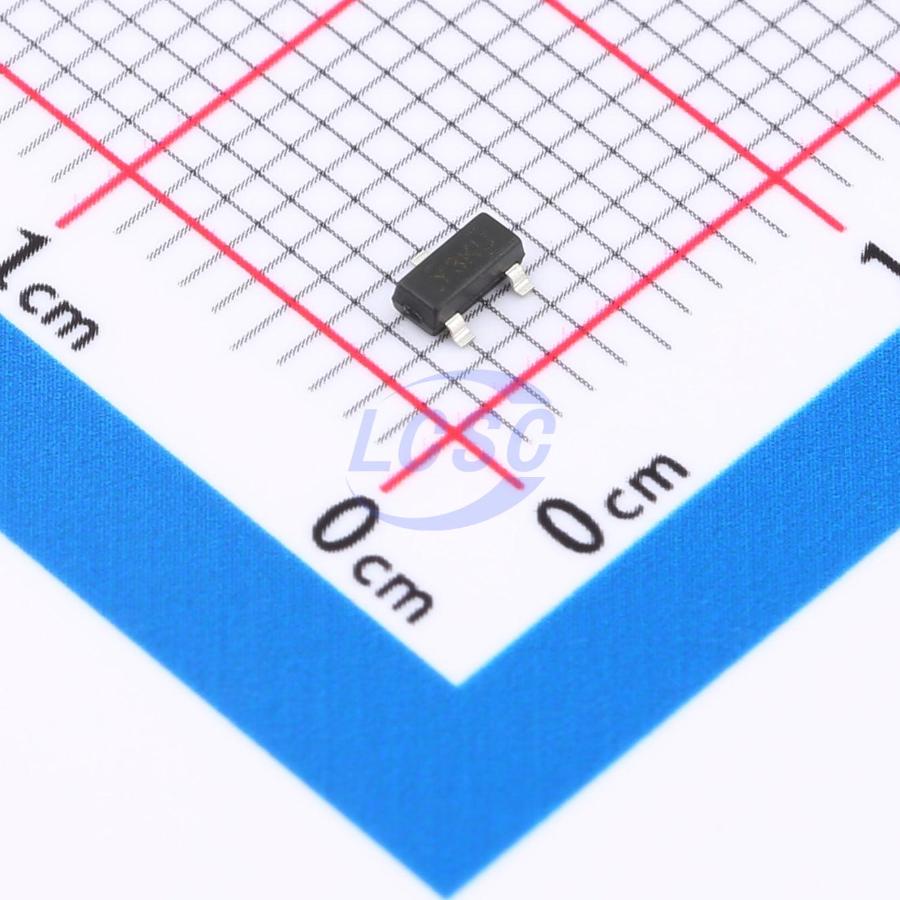

TLVH431CDBZR-TP
Shunt Voltage Reference IC Adjustable 1.24V~18V ±0.5% 100mA SOT-23
SOT-23RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TLVH431CDBZR-TP
- Store part #
- C48586702
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,795 in stock
#C48586702
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.31 | ₹76.55 |
| 50+ | ₹13.32 | ₹666.00 |
| 150+ | ₹12.48 | ₹1,872.00 |
| 500+ | ₹11.42 | ₹5,710.00 |
| 3,000+ | ₹10.94 | ₹32,820.00 |
| 6,000+ | ₹10.66 | ₹63,960.00 |
5 × ₹15.31
₹76.55
excl. GST
₹90.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLVH431CDBZR-TP
₹76.55 for 5 + GST
Specifications
- Output Voltage
- 1.24V~18V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 55uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
This is a three-terminal adjustable shunt regulator that allows the output voltage to be set to any value between the reference voltage (approximately 1.24V) and 18V using two external resistors. The device features a typical output impedance of 0.05Ω. Its active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications. These applications include on-board voltage regulation, adjustable power supplies, and power-on/power-off control.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Voltage comparator with integrated reference
- Secondary-side voltage regulation for flyback switching power supplies
Key features
- Adjustable output voltage range: 1.24V~18V
- Low dynamic output resistance: 0.05Ω (typical)
- Low temperature drift: 2mV (typical)
- Low output noise
- High capacitive load stability
- Current capacity range: 0.1-100 mA
- Accuracy: 0.5%
- Package: SOT23
