STDatasheet (PDF)

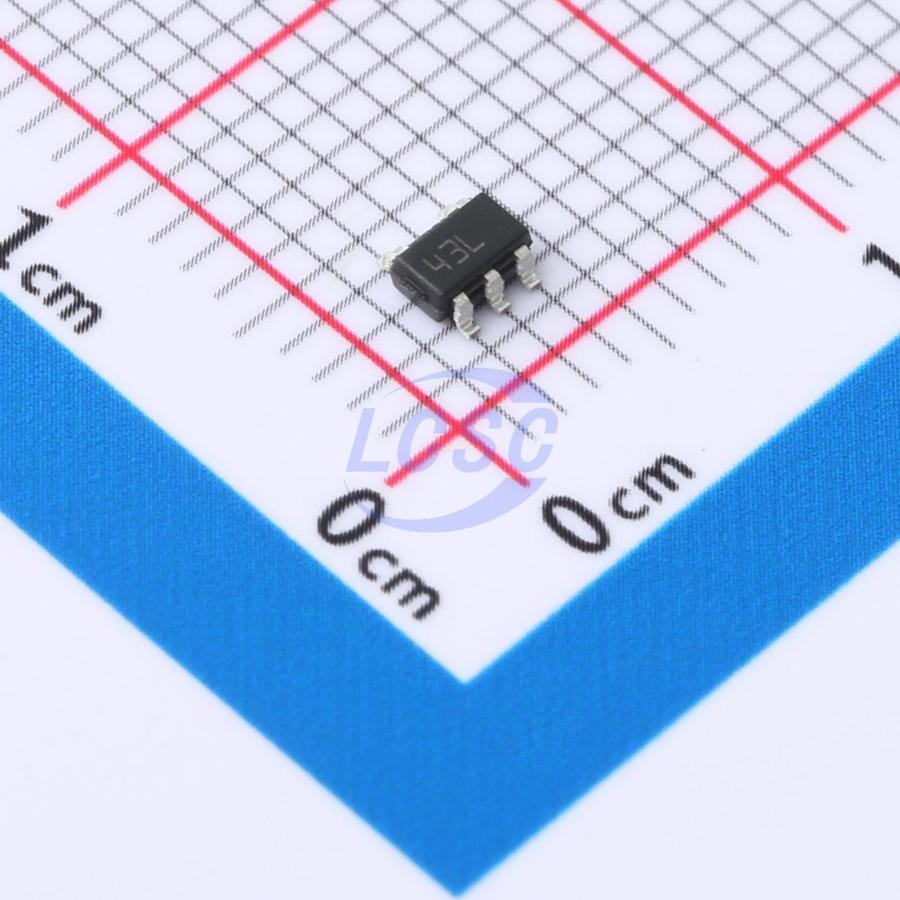

TLVH431LIL5T
1.24V~18V ±1.5% 1.24V~18V 60mA Adjustable SOT-23-5L Voltage Reference RoHS
SOT-23-5LROHS3 CompliantActive
Adjustable Shunt Voltage Reference
- Manufacturer
- ST
- Manufacturer part #
- TLVH431LIL5T
- Store part #
- C5267736
- Package / case
- SOT-23-5L
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C5267736
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.00 | ₹135.00 |
| 50+ | ₹23.44 | ₹1,172.00 |
| 150+ | ₹21.92 | ₹3,288.00 |
| 500+ | ₹20.02 | ₹10,010.00 |
| 3,000+ | ₹19.17 | ₹57,510.00 |
| 6,000+ | ₹18.65 | ₹1,11,900.00 |
5 × ₹27.00
₹135.00
excl. GST
₹159.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLVH431LIL5T
₹135.00 for 5 + GST
Specifications
- Output Voltage
- 1.24V~18V
- Tolerance
- ±1.5%
- Voltage - Supply
- 1.24V~18V
- Minimum Cathode Current for Regulation
- 60uA
- Reference Type
- Parallel
- Output Current
- 60mA
- Operating Temperature
- -40℃~+125℃@(Ta)
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The TLVH431 is a low power adjustable shun voltage. It can stably over the entire operating temperature range. The output voltage can be set between 1.24 V and 18 V by means of an external resistor. The TLVH431 can operate from 100 μA to 60 mA with a typical dynamic impedance of 0.22 Ω. Available in SOT23-3L, SOT23-5L and SOT32-6L surface mount packages, it is suitable for applications where space saving is a critical issue.
Applications
- Battery chargers
- Shunt power supplies
- Battery operated equipment
- Energy management
Key features
- 18 V or 100 μA at 25 °C
- 0.25%, 0.5%, 1%, 1.5% tolerance
- 60 mA current capability
- -25 °C to +125 °C operating temperature range
- 100 ppm/°C maximum temperature coefficient
