TECH PUBLICDatasheet (PDF)

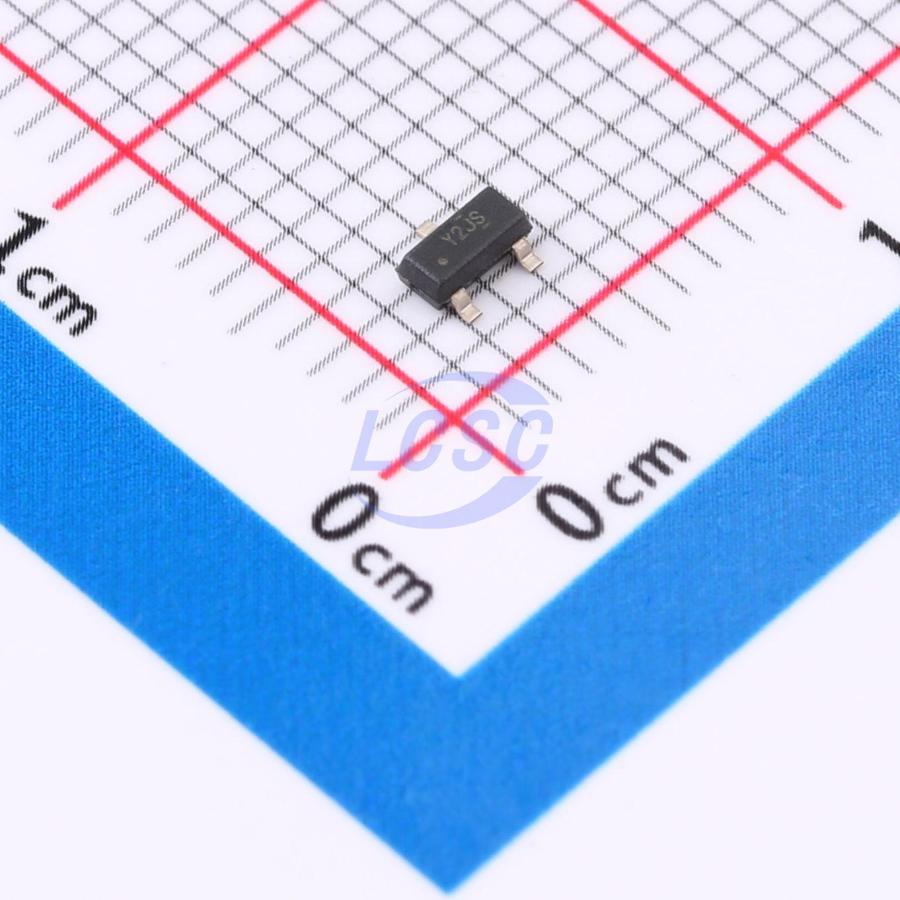

TLVH432BIDBZR-TP
1.24V~18V ±0.5% 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TLVH432BIDBZR-TP
- Store part #
- C47117579
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,025 in stock
#C47117579
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.46 | ₹52.30 |
| 50+ | ₹8.23 | ₹411.50 |
| 150+ | ₹7.12 | ₹1,068.00 |
| 500+ | ₹6.28 | ₹3,140.00 |
| 3,000+ | ₹5.61 | ₹16,830.00 |
| 6,000+ | ₹5.28 | ₹31,680.00 |
5 × ₹10.46
₹52.30
excl. GST
₹61.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLVH432BIDBZR-TP
₹52.30 for 5 + GST
Specifications
- Output Voltage
- 1.24V~18V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 55uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
A three terminal adjustable parallel regulator that can set the output voltage through two external resistors to any value between Vref (approximately 1.24V) and 18V. These devices have an output impedance of 0.05Ω (typ). Active output circuits can provide very sharp conductivity characteristics, enabling them to be an excellent substitute for Zener diodes in many applications, including onboard voltage regulation, adjustable power supply, and power on/off.
Applications
- Adjustable voltage and current reference
- Zener diode replacement products
- Voltage monitoring
- A comparator with an integrated benchmark
- Secondary side voltage regulation in flyback switch mode power supply (SMPS)
Key features
- Adjustable output voltage range: 1.24V~18V
- Low Dynamic Output Resistance: 0.05Ω(typ)
- Low Temperature Deviation: 2mV(typ)
- Low Output Noise
- High Stability under Capacitive Load
- Current capacity range 0.1~100 mA
- accuracy 0.5%
- Package appearance SOT23
