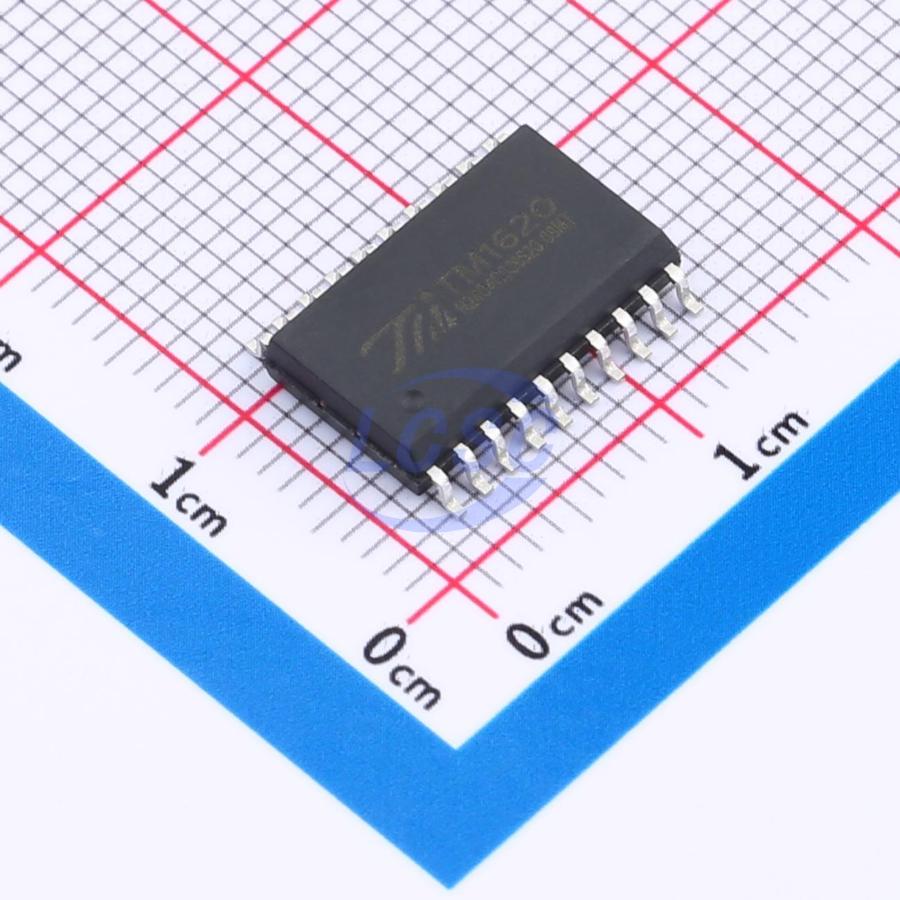

TM(Shenzhen Titan Micro Elec)

TM1620-SOP20-TA2108

3V~6V SOP-20 LED Drivers ICs

SOP-20RoHSActive

Dedicated circuit for LED drive control

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TM1620-SOP20-TA2108
Store part #: C42418157
Package / case: SOP-20
Category: LED Drivers ICs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

468 in stock

#C42418157

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
6+	₹14.46	₹86.76
60+	₹14.12	₹847.20
180+	₹13.89	₹2,500.20
612+	₹13.67	₹8,366.04

Quantity (min 6, multiples of 6)

6 × ₹14.46

₹86.76

excl. GST

₹102.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 36 per tube

TM1620-SOP20-TA2108

₹86.76 for 6 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating temperature: -40℃~+85℃
Voltage - Input(DC): 3V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 36 / Tube
Sold per: Piece
Minimum order: 6 (multiples of 6)
Unit weight: 0.864 g

Overview

TM1620 is a dedicated LED (Light Emitting Diode display) driver control IC, integrating MCU digital interface, data latch, LED driver, and other circuits. The product offers reliable quality, good stability, and strong anti-interference capability. It is primarily suited for digital tube or LED display applications in home appliances (smart water heaters, microwave ovens, washing machines, air conditioners, induction cookers), set-top boxes, electronic scales, smart meters, and similar devices.

Applications

Home Appliances
Set-Top Box
Electronic Scale
Smart Meter

Key features

CMOS process
Display modes (8-segment × 6-digit ~ 10-segment × 4-digit)
Brightness control circuit (8-level adjustable duty cycle)
Serial interface (CLK, STB, DIN)
Oscillation: built-in RC oscillator
Built-in power-on reset circuit
Built-in data latch circuit
Built-in optimization circuit for LED reverse-bias leakage-induced dim-glow issue
Strong noise immunity
Package: SOP20
