TM(Shenzhen Titan Micro Elec)Datasheet (PDF)

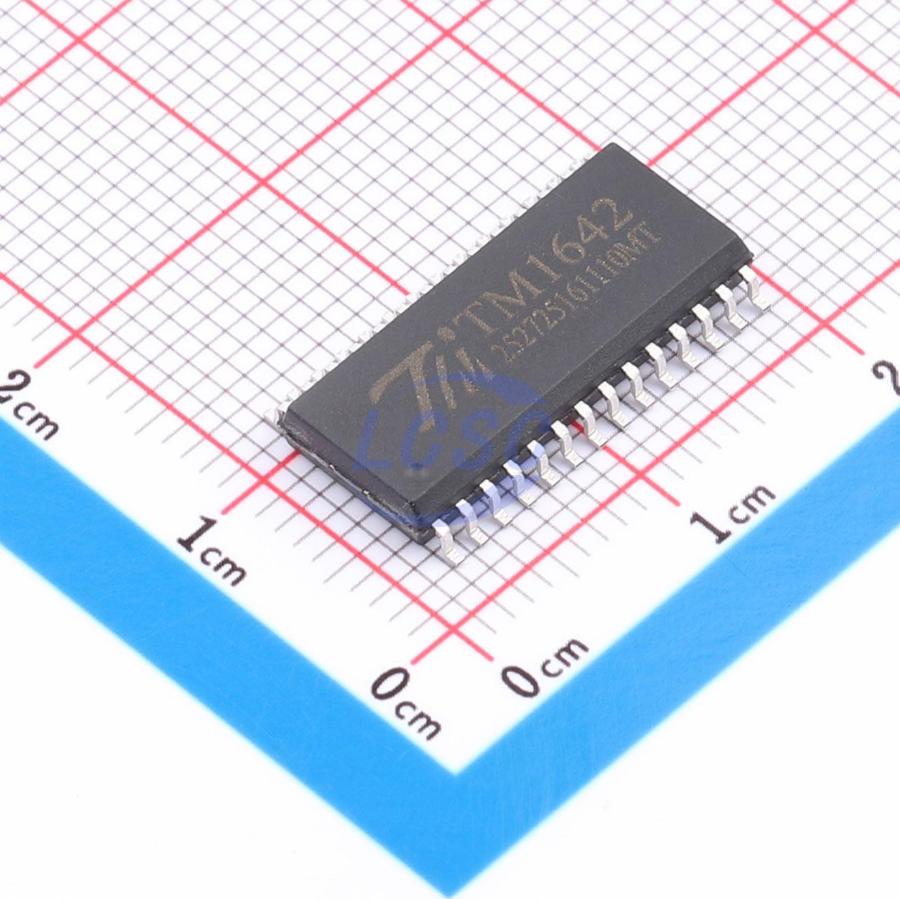

TM1642-SOP28-TA2405B
SOP-28 LED Drivers ICs
SOP-28RoHSActive
- Manufacturer
- TM(Shenzhen Titan Micro Elec)
- Manufacturer part #
- TM1642-SOP28-TA2405B
- Store part #
- C51026292
- Package / case
- SOP-28
- Category
- LED Drivers ICs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C51026292
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.53 | ₹172.65 |
| 50+ | ₹30.34 | ₹1,517.00 |
| 150+ | ₹28.54 | ₹4,281.00 |
| 500+ | ₹26.30 | ₹13,150.00 |
| 2,000+ | ₹25.30 | ₹50,600.00 |
| 4,000+ | ₹24.70 | ₹98,800.00 |
5 × ₹34.53
₹172.65
excl. GST
₹203.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
TM1642-SOP28-TA2405B
₹172.65 for 5 + GST
Specifications
- Features
- Keyboard scanning
- Operating temperature
- -40℃~+85℃
- Constant Current Accuracy
- 6%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.748 g
Overview
Key features
- Power CMOS process
- Multiple display modes (10-segment × 7-digit to 13-segment × 4-digit)
- SEG constant current drive maximum voltage: VDD-1V
- Channel-to-channel mismatch: max ±3%; chip-to-chip mismatch: max ±6%
- Key scan (8×2)
- Brightness adjustment circuit (software-controlled 8-level constant current adjustment)
- Serial interface (CLK, STB, DIN)
- Oscillation method: built-in RC oscillator (450kHz ±5%)
- Built-in power-on reset circuit
