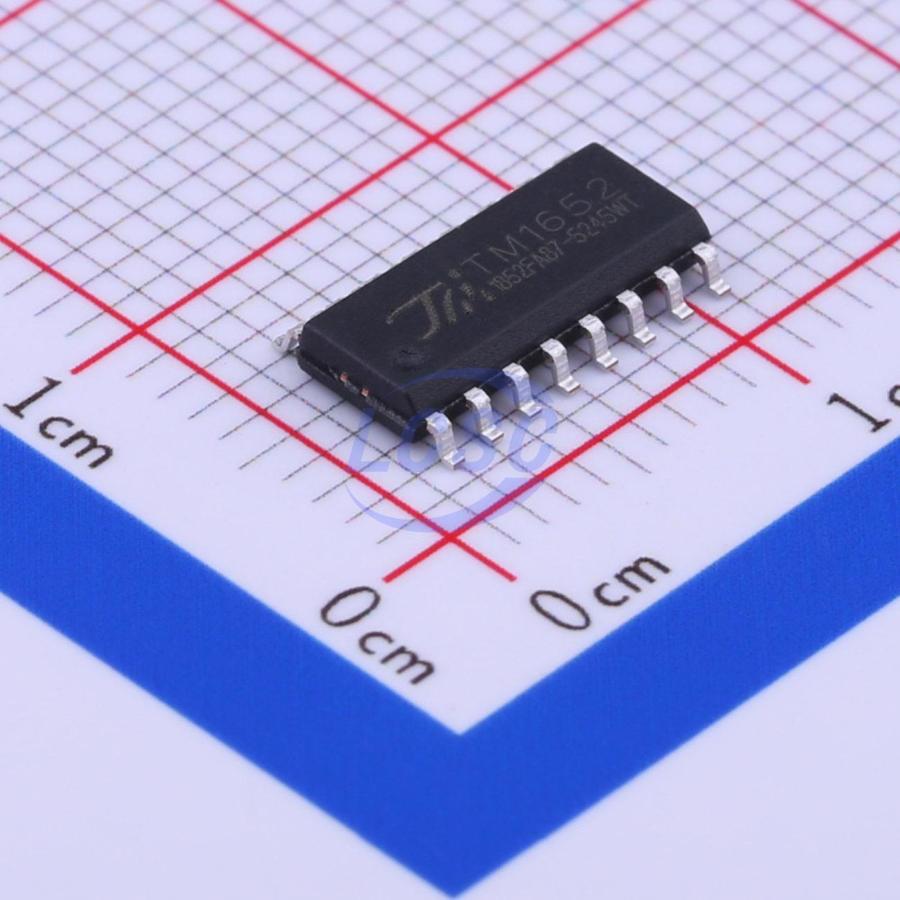

TM(Shenzhen Titan Micro Elec)

TM1652

5V~6V 2.5MHz 20mA 80mA SOP-16 Display Drivers

SOP-16RoHSActive

Special-purpose circuit for LED driver control

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TM1652
Store part #: C52186
Package / case: SOP-16
Category: Display Drivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

37,670 in stock

#C52186

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.62	₹63.10
50+	₹9.76	₹488.00
150+	₹8.33	₹1,249.50
500+	₹7.25	₹3,625.00
2,500+	₹6.39	₹15,975.00
5,000+	₹5.96	₹29,800.00

Quantity (min 5, multiples of 5)

5 × ₹12.62

₹63.10

excl. GST

₹74.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

TM1652

₹63.10 for 5 + GST

Specifications

Voltage - Supply: 5V~6V
Configuration: 7 Segment x 6 Digit;8 Segment x 5 Digit
Operating Temperature: -40℃~+80℃
Pd - Power Dissipation: 400mW
Clock Frequency: 2.5MHz
Features: Built-in auto blanking;PWM dimming;Internal reset function
Segment Drive Current: 20mA
Digit Drive Current: 80mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.28 g

Overview

TM1652 is a dedicated LED (LED indicators, numeric displays, and dot matrix panels) driver control IC with integrated digital communication circuitry, decoding circuitry, data latches, oscillator, and LED driver circuitry. It communicates via the UART protocol — since the chip only receives data from the MCU, only a single TX pin from the MCU is required to send data to the chip, enabling single-wire communication. For display driving, the chip employs dynamic scanning with two selectable display modes, 8-level adjustable segment drive current, and 16-level adjustable digit duty cycle. TM1652 incorporates a built-in blanking optimization circuit.

Applications

Air conditioner panel
Washing machine panel
DVD display panel
Set-top box display

Key features

Power CMOS process
Typical operating voltage: 5V
Common-cathode 7-segment display support
Two display modes (7-segment × 6-digit, 8-segment × 5-digit)
Brightness adjustment circuit (digit duty cycle: 16 levels adjustable, segment drive current: 8 levels adjustable)
Serial interface (SDA), compatible with UART protocol, supports baud rate 19200bps
Built-in OSC frequency: 2.5M
Built-in power-on reset circuit
Built-in optimization circuit for dim/bright issues
Package: SOP16
