TM(Shenzhen Titan Micro Elec)

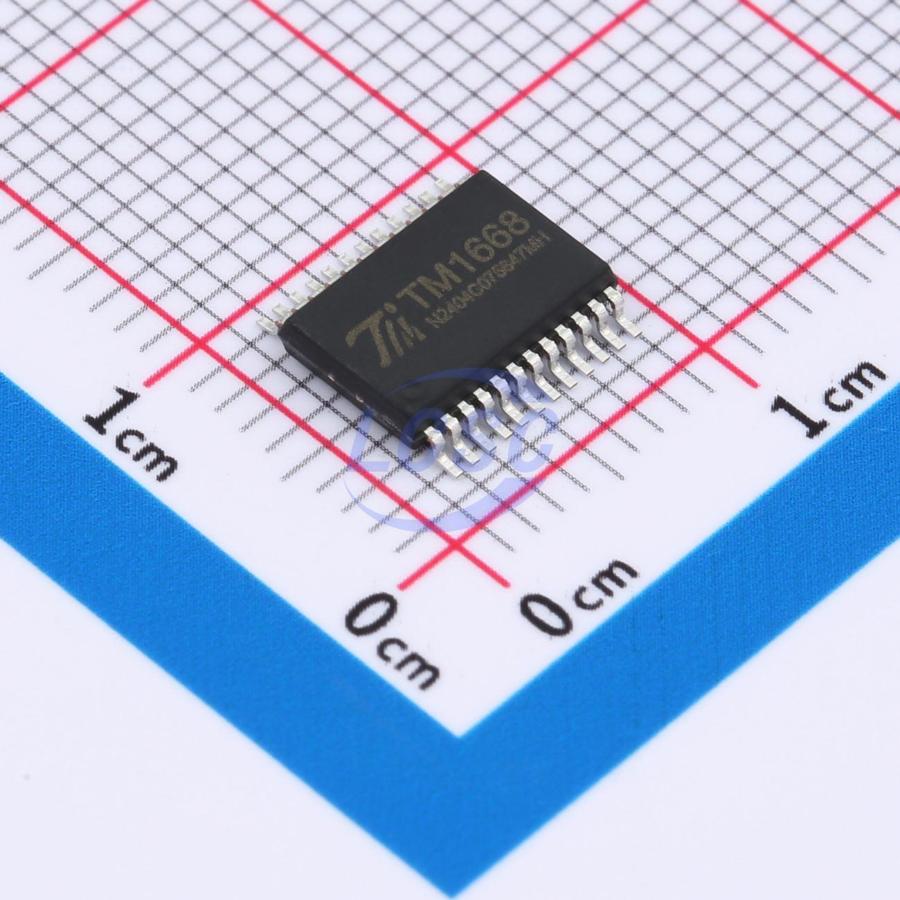

TM1668-SSOP24-TA2108

7 DC-DC 3V~6V SSOP-24 LED Drivers ICs

SSOP-24RoHSActive

Dedicated circuit for LED drive control

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TM1668-SSOP24-TA2108
Store part #: C42418156
Package / case: SSOP-24
Category: LED Drivers ICs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,850 in stock

#C42418156

Stock & price checked 45 h ago

Quantity	Unit price	Pack price
5+	₹20.63	₹103.15
50+	₹16.47	₹823.50
120+	₹14.41	₹1,729.20
480+	₹12.85	₹6,168.00
2,520+	₹11.87	₹29,912.40
4,980+	₹11.25	₹56,025.00

Quantity (min 5, multiples of 5)

5 × ₹20.63

₹103.15

excl. GST

₹121.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 60 per tube

TM1668-SSOP24-TA2108

₹103.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Keyboard scanning
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 7
Type: DC-DC
Output Current: 120mA;60mA
Voltage - Input(DC): 3V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 60 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.353 g

Overview

TM1668 is a dedicated LED (Light Emitting Diode display) driver control IC with keyboard scan interface, integrating MCU digital interface, data latch, LED driver, keyboard scan, and other circuits. This product offers reliable quality, good stability, and strong anti-interference capability. It is primarily applicable to home appliances (smart water heaters, microwave ovens, washing machines, air conditioners, induction cookers), set-top boxes, electronic scales, smart meters, and other digital tube or LED display devices.

Applications

Home Appliances
Set-Top Box
Electronic Scale
Smart Meter

Key features

CMOS process
Multiple display modes (10-segment × 7-digit to 13-segment × 4-digit)
Matrix keypad support up to 10 × 2
Brightness adjustment circuit (8-level duty cycle)
Serial interface (CLK, STB, DIO)
Oscillation: built-in RC oscillator
Built-in power-on reset circuit
Built-in data latch circuit
Built-in optimization circuit for LED reverse-bias leakage-induced dim-glow issues
Strong noise immunity
Package: SOP24, SSOP24
