TM(Shenzhen Titan Micro Elec)

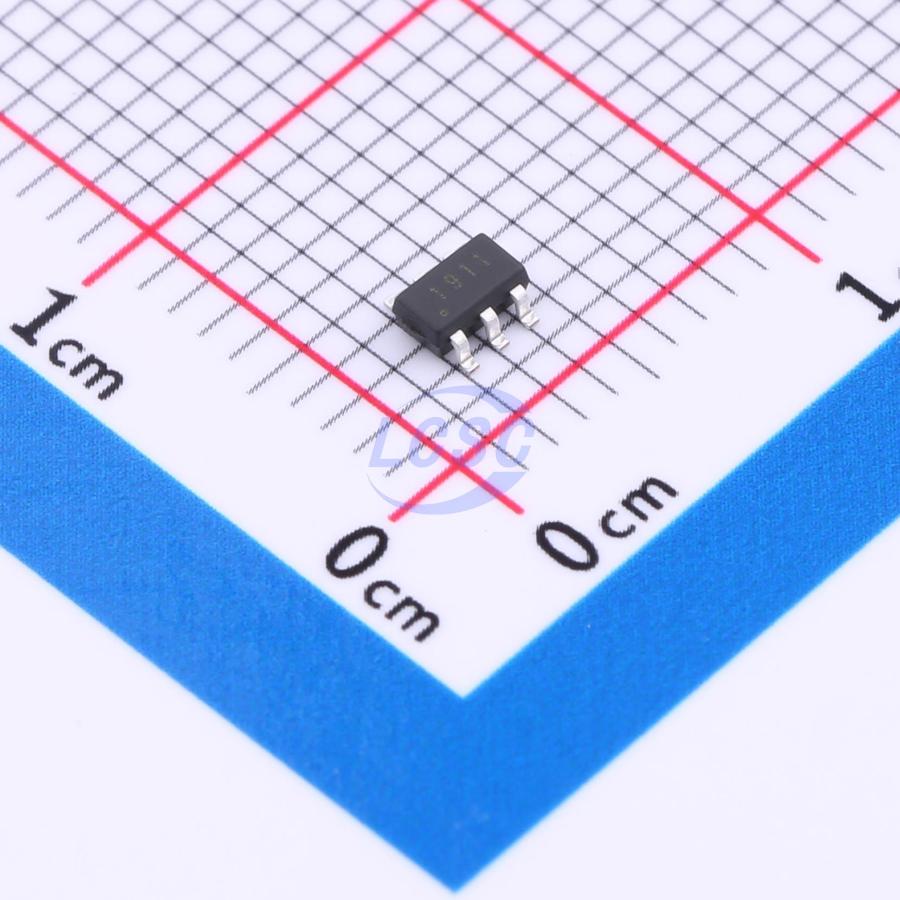

TM1911

LED Driver IC 1 Output PWM Dimming 300mA SOT-23-6

SOT-23-6RoHSActive

Single-channel linear LED constant-current driver IC

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TM1911
Store part #: C5174519
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,880 in stock

#C5174519

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹24.32	₹121.60
50+	₹18.81	₹940.50
150+	₹16.05	₹2,407.50
500+	₹13.98	₹6,990.00
3,000+	₹12.33	₹36,990.00
6,000+	₹11.50	₹69,000.00

Quantity (min 5, multiples of 5)

5 × ₹24.32

₹121.60

excl. GST

₹143.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TM1911

₹121.60 for 5 + GST

Specifications

Features: Over-Temperature Protection (OTP)
Operating temperature: -40℃~+125℃
Number of Channels: 1
Output Current: 300mA
Voltage - Input(DC): 4.5V~24V
Constant Current Accuracy: 5%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

TM1911 is a high-precision single-channel LED constant-current driver IC with output current adjustable via a single external resistor. It features an extremely low constant-current dropout voltage, wide input voltage range, ultra-high constant-current output accuracy, and excellent output stability. It supports PWM dimming within a frequency range of 100Hz~20kHz, achieving a dimming depth of 1024:1 at 100Hz. The device incorporates over-temperature protection: when the junction temperature reaches 135°C, the output current is linearly reduced as the temperature continues to rise. Reliable and high-performance, TM1911 is easy to use across a wide range of LED lighting applications.

Applications

Sign lighting (trademarks, signage, warehouse storage, parking lots, etc.)
Illuminated letters
Light bars, LED strips

Key features

Single-channel constant-current LED driver, 15～300mA, resistor-programmable current
Wide input voltage range: 4.5V～24V
100Hz～20kHz dimming frequency
Ultra-low drop-out voltage (as low as 300mV at 20mA drive current)
±5% output current accuracy
Line and load regulation 0.1%/V
SOT23-6 and ESOP8 lead-free RoHS-compliant packages
