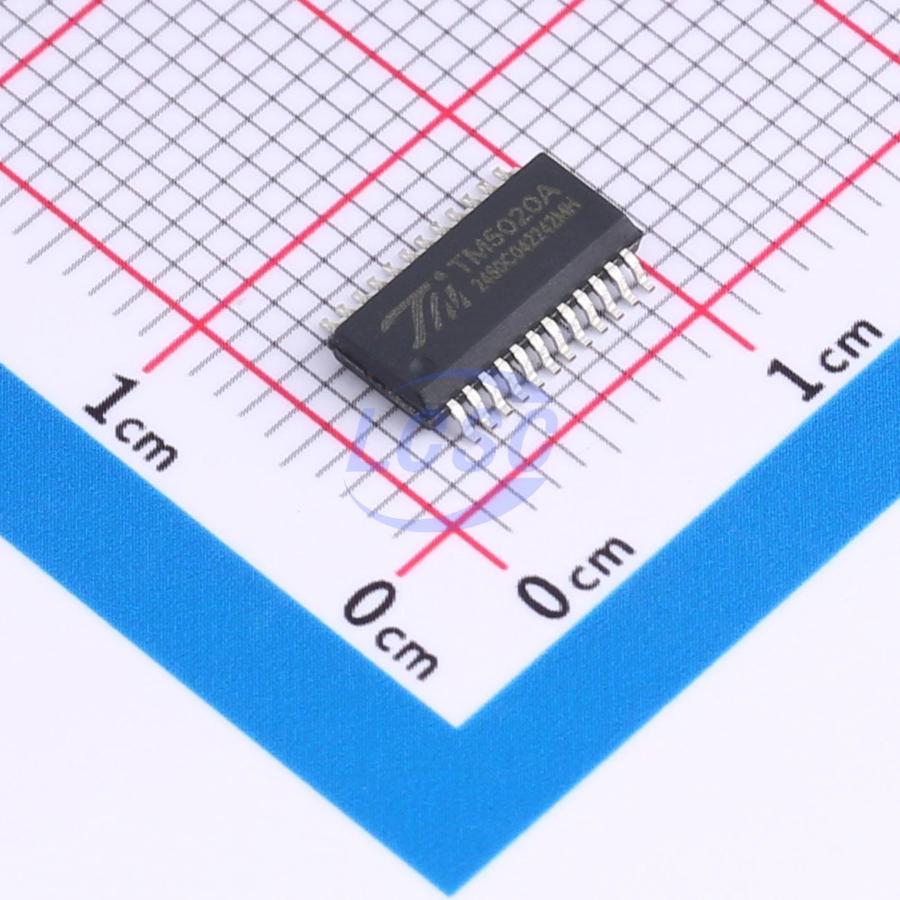

TM5020A

TM5020A is a driver IC designed for LED display panels. It features a built-in CMOS shift register and latch function that converts serial input data into parallel output data format. TM5020A provides 16 constant current sources capable of delivering 3~36 mA constant current at each output port to drive LEDs. Multiple OUT driver channels can be short-circuited together for higher current output, with minimal impact on output current when environmental conditions change. An external resistor R(EXT) of selectable resistance value can be used to adjust the output current at each port of the TM5020A, enabling precise control of LED luminance. This makes it well-suited for high-quality white balance display driver modules.

Applications

• Indoor/outdoor single, dual, and full-color (dynamic/static) LED displays
• Decorative lighting
• Energy-saving lighting

Key features

• 16 constant-current output channels
• OUT port withstand voltage guaranteed up to 11V
• Current output unaffected by load voltage variation at output terminal
• Constant current range: 3~36 mA@VDD = 5V, 3~20 mA@VDD = 3.3V
• Highly accurate current output (channel-to-channel) max error: ≤±2.0%, (chip-to-chip) max error: ≤±3.0%
• Precise current output setting for 16 OUTs via external resistor adjustment
• Fast output current response: minimum pulse width = 35 nS
• Data transfer rate up to 25 MHz
• Schmitt trigger input characteristics
• Operating voltage: 3.3V~5V
• Package: SSOP24-0.635 (QSOP24)
