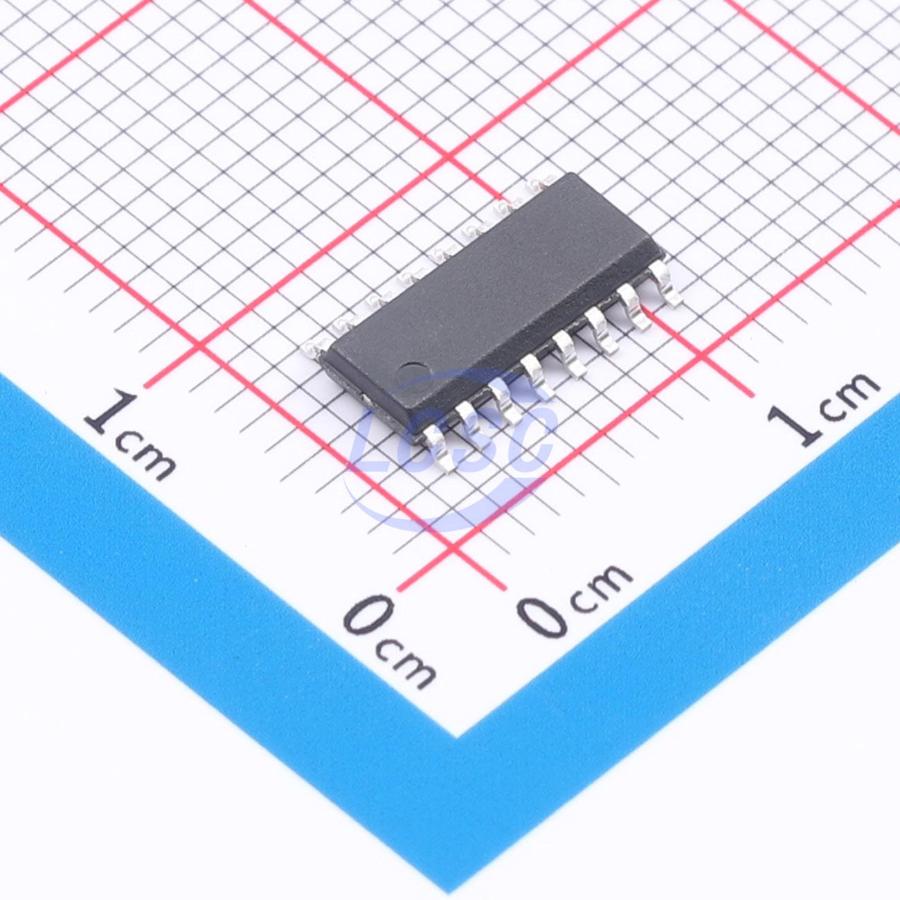

HITENX

TM52E52232S1

51 Series 8 Bit 16.5888MHz SOP-16 Microcontrollers

SOP-16RoHSActive

Manufacturer: HITENX
Manufacturer part #: TM52E52232S1
Store part #: C54565483
Package / case: SOP-16
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,970 in stock

#C54565483

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹16.23	₹81.15
50+	₹12.85	₹642.50
150+	₹11.15	₹1,672.50
500+	₹9.88	₹4,940.00
2,500+	₹8.86	₹22,150.00
4,000+	₹8.35	₹33,400.00

Quantity (min 5, multiples of 5)

5 × ₹16.23

₹81.15

excl. GST

₹95.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TM52E52232S1

₹81.15 for 5 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 14
Operating Temperature: -40℃~+105℃
Voltage - Supply: 1.8V~5.5V
Program Memory Type: FLASH
CPU Core: 51 Series
Program Storage Size: 8KB
EEPROM: 256Byte
Core Size: 8 Bit
CPU Maximum Speed: 16.5888MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

The TM52 E5223 is a new fast, low-voltage, power-saving 8051 architecture — a fully 8051 instruction set compatible 8-bit MCU that retains the 8051 peripheral function modules. Under typical conditions, the TM52 executes instructions six times faster than a conventional 8051 architecture. By integrating multiple functions on-chip, the TM52 E5223 delivers higher performance, lower cost, and faster time-to-market. On-chip features include 8K bytes of MTP program memory, 512 bytes of SRAM, low voltage reset (LVR), low voltage detection (LVD), dual-clock power-saving operating modes, Timer0/Timer1, real-time clock Timer3, 12-bit ADC, 16-bit PWM0 (N/P), 16-bit PWM1/2/3, and a watchdog timer (WDT). Its high reliability and low power consumption make it well-suited for a wide range of consumer electronics applications.
