TMIDatasheet (PDF)

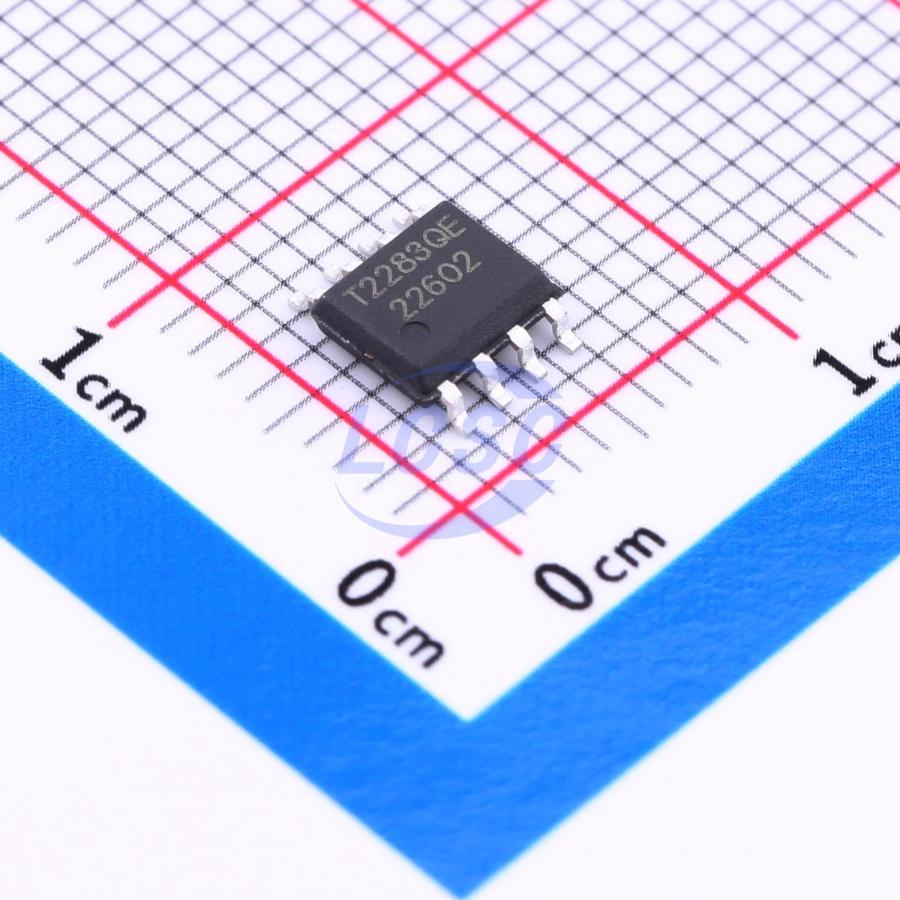

TMI2283QE
Step-down type Adjustable 3.5A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
Wide Input Range High Efficiency Synchronous Step-Down DC/DC Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI2283QE
- Store part #
- C5259209
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C5259209
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.91 | ₹43.91 |
| 10+ | ₹34.81 | ₹348.10 |
| 30+ | ₹30.91 | ₹927.30 |
| 100+ | ₹26.04 | ₹2,604.00 |
| 500+ | ₹23.88 | ₹11,940.00 |
| 1,000+ | ₹22.57 | ₹22,570.00 |
1 × ₹43.91
₹43.91
excl. GST
₹51.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI2283QE
₹43.91 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 270kHz;120kHz
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Hiccup current limiting;Light load efficient mode;Cable compensation;EMI optimization (spread spectrum)
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3.5A
- Quiescent Current
- 800uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.203 g
Overview
TMI2283QE is a wide input voltage, high efficiency active CC step-down DC/DC converter that operates in either CV (Constant Output Voltage) mode or CC (Constant Output Current) mode. TMI2283QE provides up to total 3.5A output current limit at 5V output with floating ISET pin. Switching frequency can be set by external resistor. Maximum 100% duty cycle could be obtained. TMI2283QE internal integrate 45mΩ high side and 25mΩ low side power MOSFET. Advanced production features include UVLO, Thermal Shutdown, Soft Start and input OVP.
Applications
- Car Charger/ Adaptor
- Rechargeable Portable Devices
- General-Purpose CC/CV Power Suppliers
Key features
- P-MOS + N-MOS Switch Structure
- Wide Input Voltage: 4.5V to 30V
- Up to 3.5A Output Current Limit at 5V Output
- Constant Output Power for QC3.0
- High Efficiency up to 94% at 5V/3A
- PFM mode in Light Load Condition
- 120kHz to 380kHz Adjustable Frequency
- Internal Compensation
- Output Line Drop Compensation
- Hiccup Output Short Current Protection
- 2.5% Feedback Voltage Accuracy
- Integrated Soft Start
- Thermal Shutdown
- Duty Cycle up to 100%
- Frequency Jitter for EMI Consideration
- Low BOM Cost
- SOP8 Package
