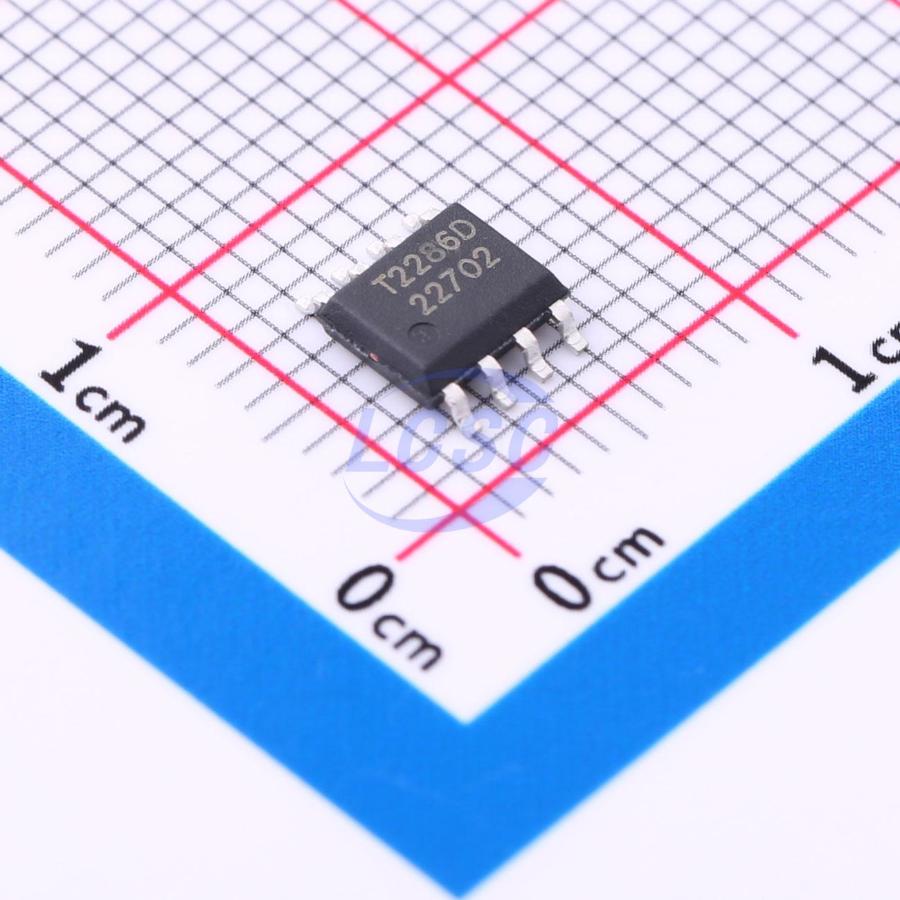

TMI2286D
Step-down type 120kHz Adjustable 3.5A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
Wide Input Range Synchronous Step-Down DC/DC Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI2286D
- Store part #
- C5259210
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,705 in stock
#C5259210
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.12 | ₹205.60 |
| 50+ | ₹36.71 | ₹1,835.50 |
| 150+ | ₹34.83 | ₹5,224.50 |
| 500+ | ₹32.48 | ₹16,240.00 |
| 3,000+ | ₹31.43 | ₹94,290.00 |
| 6,000+ | ₹30.80 | ₹1,84,800.00 |
5 × ₹41.12
₹205.60
excl. GST
₹242.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI2286D
₹205.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 120kHz
- Number of Outputs
- 1
- Features
- Light load efficient mode;Cable compensation;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3.5A
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
TMI2286D is a wide input voltage, high efficiency active CC step-down DC/DC converter that operates in either CV (Constant Output Voltage) mode or CC (Constant Output Current) mode. TMI2286D provides up to typical 3.5A output current at 5V output. Maximum 100% duty cycle could be obtained. TMI2286D internal integrate high side PMOSFET (25mΩ@VIN = 12V, 40mΩ@VIN = 5V) and low side NMOSFET with 25mΩ. The external PMOSFET can be paralleled between VIN and SW to reduce voltage drop in application. Advanced production features include UVLO, Thermal Shutdown, Soft Start and input OVP.
Applications
- Car Charger/ Adaptor
- Rechargeable Portable Devices
- General-Purpose CC/CV Power Suppliers
Key features
- Internal P-MOS+N-MOS Switch Structure
- External P-MOS Driver Wide Input Voltage: 4.5V to 30V
- Up to typical 3.5A Current Limit at 5V Output
- High Efficiency up to 94% to 5V/3A
- PFM in Light Load Condition
- Internal Compensation
- Output Line Drop Compensation
- Hiccup Output Short Current Protection
- ±2% Feedback Voltage Accuracy
- Integrated Soft Start
- Thermal Shutdown
- Duty Cycle up to 100%
- Low BOM Cost SOP8 Package
