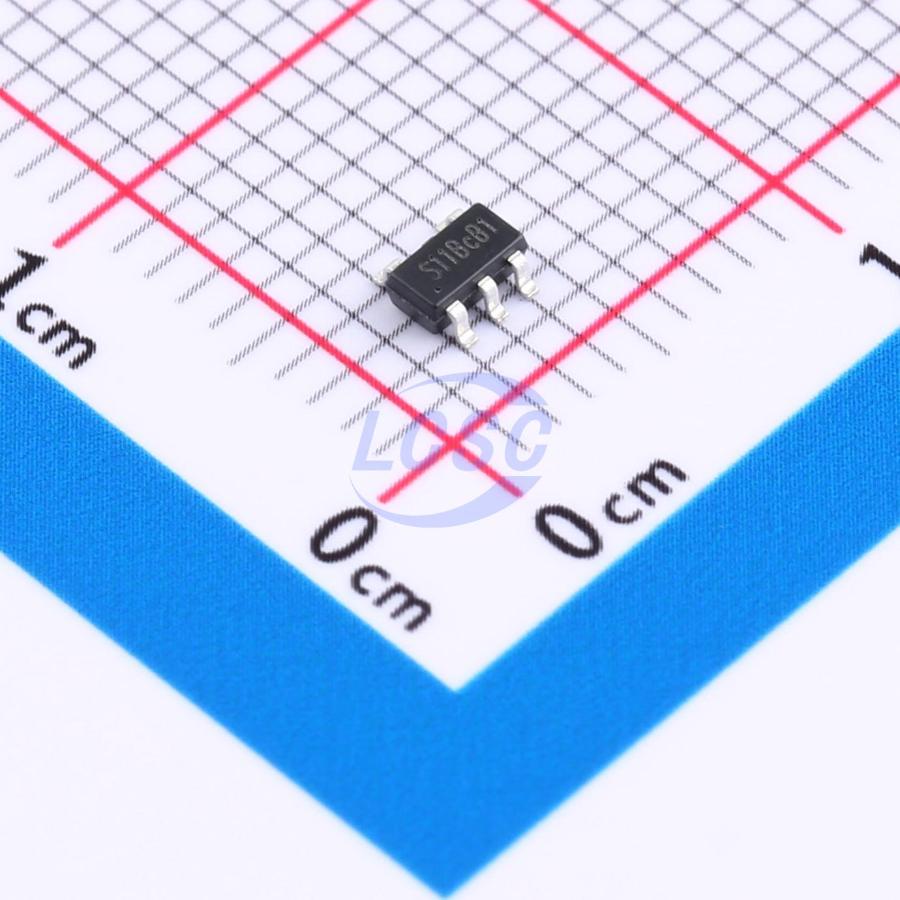

2.3MHz, 6V/1.0A Synchronous Step-Down Converter

Manufacturer: TMI
Manufacturer part #: TMI3101
Store part #: C708876
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,393 in stock

#C708876

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
1+	₹8.49	₹8.49
10+	₹6.77	₹67.70
30+	₹5.91	₹177.30
100+	₹5.27	₹527.00
500+	₹4.75	₹2,375.00
1,000+	₹4.50	₹4,500.00

Quantity (min 1)

1 × ₹8.49

₹8.49

excl. GST

₹10.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TMI3101

₹8.49 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Number of Outputs: 1
Frequency - Switching: 2.3MHz
Features: Overcurrent Protection;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~6V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~6V
Output Current: 1A
Quiescent Current: 40uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.049 g

Overview

The TMI3101 is a constant frequency, current mode PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. The output voltage can be regulated as low as 0.6V. The TMI3101 can also run at 100% duty cycle for low dropout operation, extending battery life in portable system. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load.

Applications

Cellular and Smart Phones
Wireless and DSL Modems
PDA/MID/PAD
Digital Still and Video Cameras

Key features

High Efficiency: Up to 94%
2.3MHz Frequency Operation
1.0A Output Current
Input OVP 6.1V
No Schottky Diode Required
2.5V to 6V Input Voltage Range
Output Voltage as Low as 0.6V
100% Duty Cycle in Dropout
Low Quiescent Current: 40μA
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
Short Circuit Protection
Thermal Fault Protection
Inrush Current Limit and Soft Start
Input over voltage protection (OVP)
<1μA Shutdown Current
SOT23-5 Package
