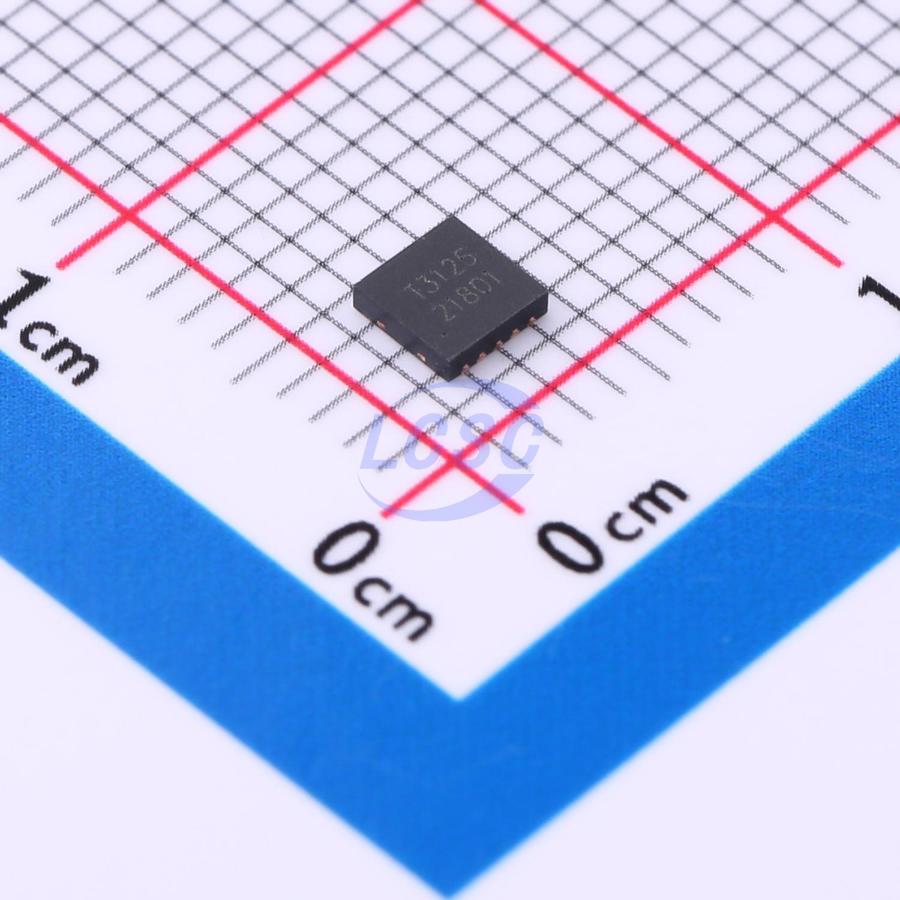

TMI3125
2.1MHz Step-down type Adjustable 600mV~3.3V 5A DFN-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
DFN-10-EP(3x3)ROHS CompliantActive
5.5V Input, 2.1MHz Switching Frequency, 5A High Efficiency Synchronous Buck Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI3125
- Store part #
- C2985063
- Package / case
- DFN-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,104 in stock
#C2985063
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.81 | ₹48.81 |
| 10+ | ₹38.74 | ₹387.40 |
| 30+ | ₹34.41 | ₹1,032.30 |
| 100+ | ₹29.03 | ₹2,903.00 |
| 500+ | ₹26.63 | ₹13,315.00 |
| 1,000+ | ₹25.19 | ₹25,190.00 |
1 × ₹48.81
₹48.81
excl. GST
₹57.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TMI3125
₹48.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Number of Outputs
- 1
- Frequency - Switching
- 2.1MHz
- Function
- Step-down type
- Features
- Light load efficient mode;Cycle-by-cycle current limiting;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~3.3V
- Output Current
- 5A
- Quiescent Current
- 50uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
A high efficiency, 2.1MHz, Synchronous Buck converter that operates in wide input voltage range from 2.7V to 5.5V. Very low standby current ensure high efficiency in light load PFM mode. A COT (Constant On-Time) structure is adaptive to achieve the fixed switching frequency and fast load transient response. Provides up to 5A output current with Integrated 35mΩ (high side) and 25mΩ (low side) power switch typically. Also implement an internal soft-start and cycle-by-cycle over current protection function. In addition, the input UVLO and OVP protection, Thermal shutdown protection. Has power good function and it is offered in DFN3x3-10 package.
Applications
- Wireless and DSL Modems
- PC and Notebook
- Digital and Video Cameras
- TV
Key features
- 2.7V to 5.5V Input Voltage Range
- 2.1MHz Switching Frequency
- Up to 5A Output Current
- COT Control with Fast Transient Performance
- Output Voltage as Low as 0.6V
- PFM Mode for High Efficiency in Light Load
- Low Quiescent Current: 50μA
- Short Circuit Protection
- Thermal Shutdown Protection
- Inrush Current Limit and Soft Start
- Input overvoltage protection (OVP)
- <1μA Shutdown Current
- DFN3x3-10 package
