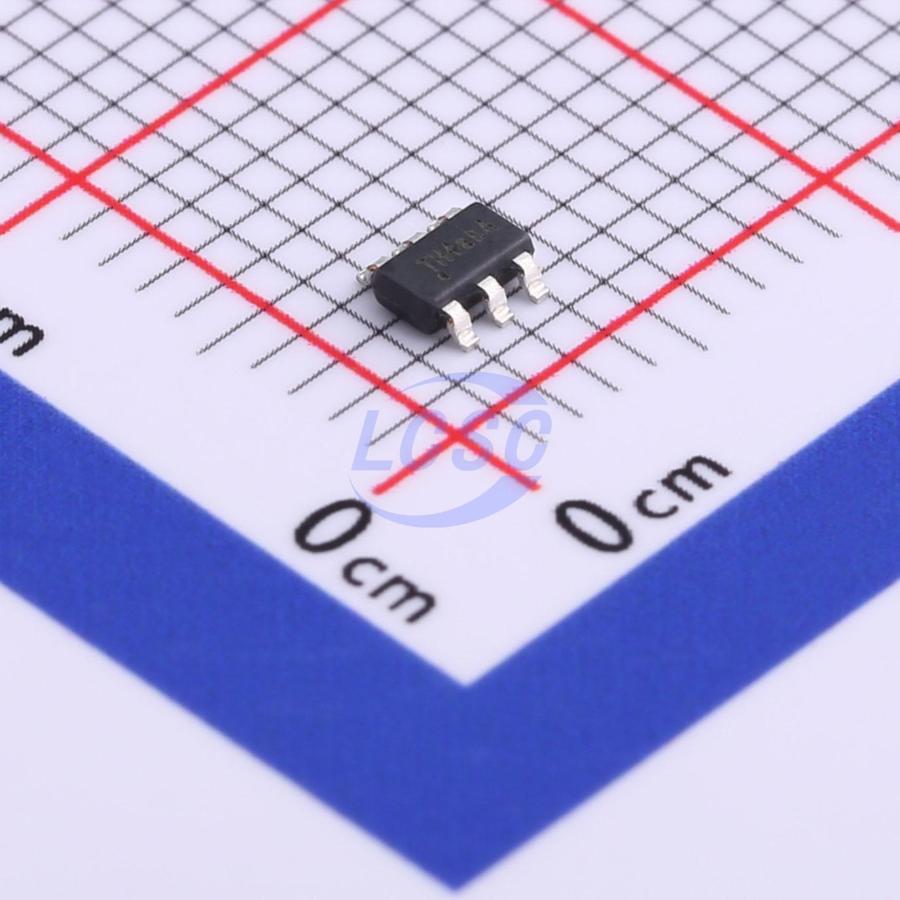

TMI3244T
Step-down type 550kHz Adjustable 4A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
18V, Peak 4A Synchronous COT Step-Down Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI3244T
- Store part #
- C840542
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,816 in stock
#C840542
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹19.13 | ₹19.13 |
| 10+ | ₹15.27 | ₹152.70 |
| 30+ | ₹13.34 | ₹400.20 |
| 100+ | ₹11.89 | ₹1,189.00 |
| 500+ | ₹10.73 | ₹5,365.00 |
| 1,000+ | ₹10.15 | ₹10,150.00 |
1 × ₹19.13
₹19.13
excl. GST
₹22.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI3244T
₹19.13 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 550kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The TMI3244T is a high efficiency 550kHz, Constant-on-Time (COT) control mode, synchronous step-down DC-DC converter capable of delivering up to Peak 4.0A current with 1.2V output voltage. TMI3244T integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor size are achieved with 550kHz switching frequency. It adopts the COT architecture to achieve fast transient responses for high voltage step down applications. The TMI3244T requires a minimum number of readily available standard external components and is available in a 6-pin SOT23-6 ROHS compliant package.
Applications
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Notebook computer
- Wireless and DSL Modems
Key features
- 60mΩ/30mΩ Low RDS(ON) internal FETs
- High Efficiency Synchronous-Mode Operation
- Wide Input Range: 4.5V to 18V
- Output Voltage from 0.765V
- 550kHz Switch Frequency
- Up to 4A Output Current@1.2VOUT
- COT control to achieve fast transient responses
- Power Save Mode at Light Load
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup Mode
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Build in Input Over Voltage Protection
- Available in SOT23-6 Package
