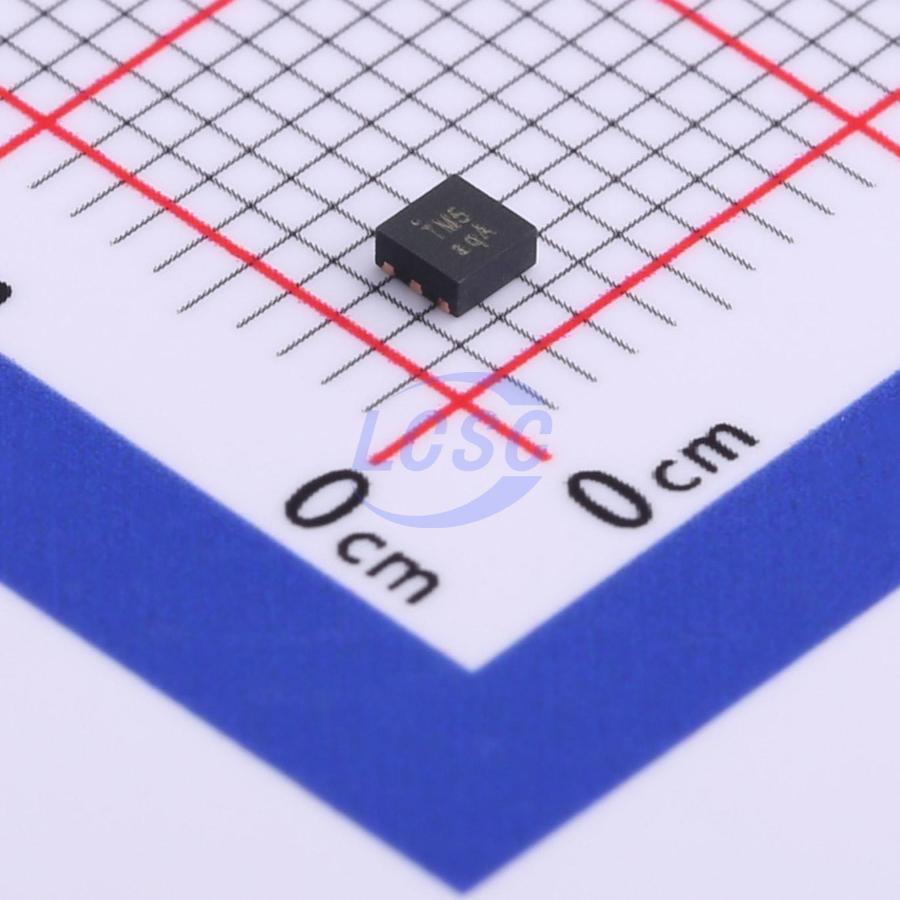

TMI3255
450kHz~750kHz Step-down type Adjustable 5A DFN-6(2x2) Voltage Regulators - DC DC Switching Regulators RoHS
DFN-6(2x2)ROHS CompliantActive
600kHz, 18V, 5A Synchronous Step-Down Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI3255
- Store part #
- C840543
- Package / case
- DFN-6(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
640 in stock
#C840543
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.54 | ₹172.70 |
| 50+ | ₹27.41 | ₹1,370.50 |
| 150+ | ₹24.36 | ₹3,654.00 |
| 500+ | ₹20.55 | ₹10,275.00 |
| 2,500+ | ₹18.85 | ₹47,125.00 |
| 5,000+ | ₹17.83 | ₹89,150.00 |
5 × ₹34.54
₹172.70
excl. GST
₹203.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TMI3255
₹172.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 450kHz~750kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 5A
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.163 g
Overview
The TMI3255 is a high efficiency 600kHz, Constant on-Time (COT) control mode synchronous stepdown DC-DC converter capable of delivering up to 5A current. TMI3255 integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor size are achieved with 600kHz switching frequency. It adopts the COT architecture to achieve fast transient responses for high voltage step down applications. The TMI3255 requires a minimum number of readily available standard external components and is available in a 6-pin DFN2x2-6FC ROHS compliant package.
Applications
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Notebook computer
- Wireless and DSL Modems
Key features
- 45mΩ/25mΩ Low RDS(ON) internal FETs
- High Efficiency Synchronous-Mode Operation
- Wide Input Range: 4.5V to 18V
- Feedback Voltage Accuracy 0.8V±2%
- 600kHz Switch Frequency
- Up to 5A Output Current
- COT control to achieve fast transient responses
- Power Save Mode at Light Load
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup Mode
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Build in Input Over Voltage Protection
- Available in DFN2x2-6FC Package
