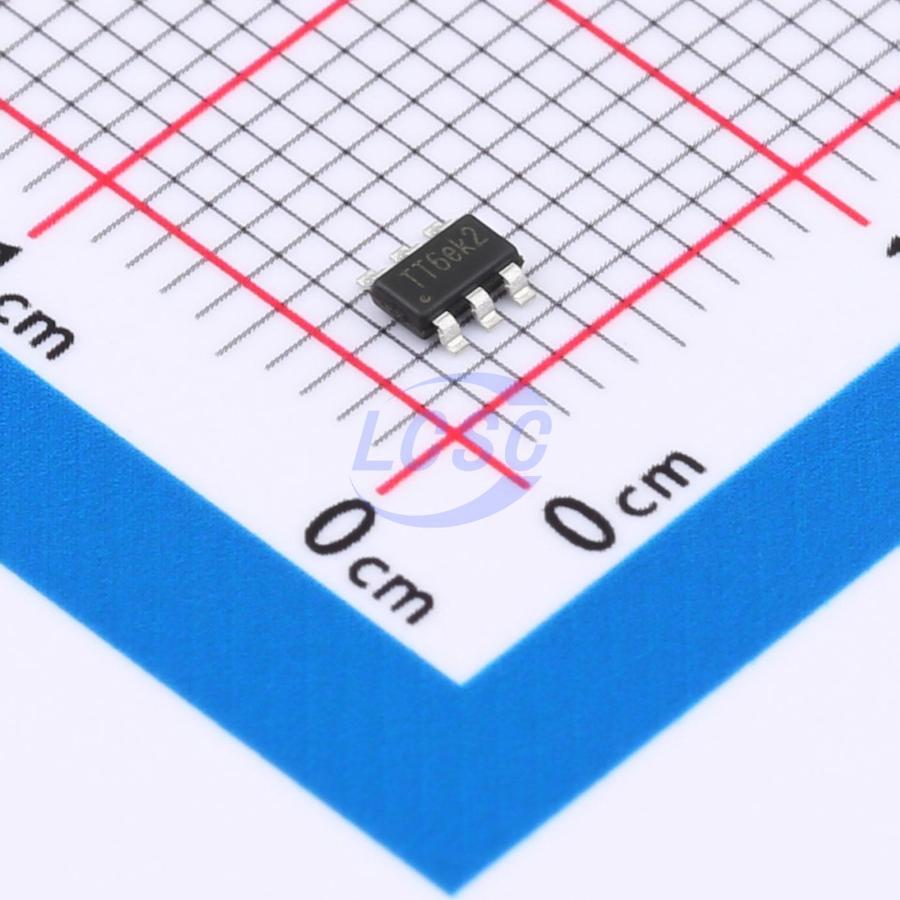

TMI3255S
450kHz~800kHz Step-down type Adjustable 5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
600kHz, 18V, 5A Synchronous COT Step-Down Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI3255S
- Store part #
- C2985065
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,785 in stock
#C2985065
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.93 | ₹179.65 |
| 50+ | ₹28.52 | ₹1,426.00 |
| 150+ | ₹25.34 | ₹3,801.00 |
| 500+ | ₹21.38 | ₹10,690.00 |
| 3,000+ | ₹19.61 | ₹58,830.00 |
| 6,000+ | ₹18.55 | ₹1,11,300.00 |
5 × ₹35.93
₹179.65
excl. GST
₹211.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI3255S
₹179.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Number of Outputs
- 1
- Frequency - Switching
- 450kHz~800kHz
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 5A
- Quiescent Current
- 340uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.099 g
Overview
The TMI3255S is a high efficiency, Constant on-Time (COT) control mode synchronous step-down DC-DC converter capable of delivering up to 5A current. TMI3255S integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor size are achieved with typical 600kHz switching frequency. It adopts the COT architecture to achieve fast transient responses for high voltage step down applications. The TMI3255S requires a minimum number of readily available standard external components and is available in a 6-pin SOT23-6 RoHS compliant package.
Applications
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Wireless and DSL Modems
Key features
- 39mΩ/20mΩ Low RDS(ON) internal FETs
- High Efficiency Synchronous-Mode Operation
- Wide Input Range: 4.5V to 18V
- Feedback Voltage Accuracy 0.6V ± 1.5%
- 600kHz Switch Frequency Typical
- Up to 5A Output Current
- COT control to achieve fast transient responses
- Power Save Mode at Light Load
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup Mode
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Build in Input Over Voltage Protection
- Available in SOT23-6 Package
