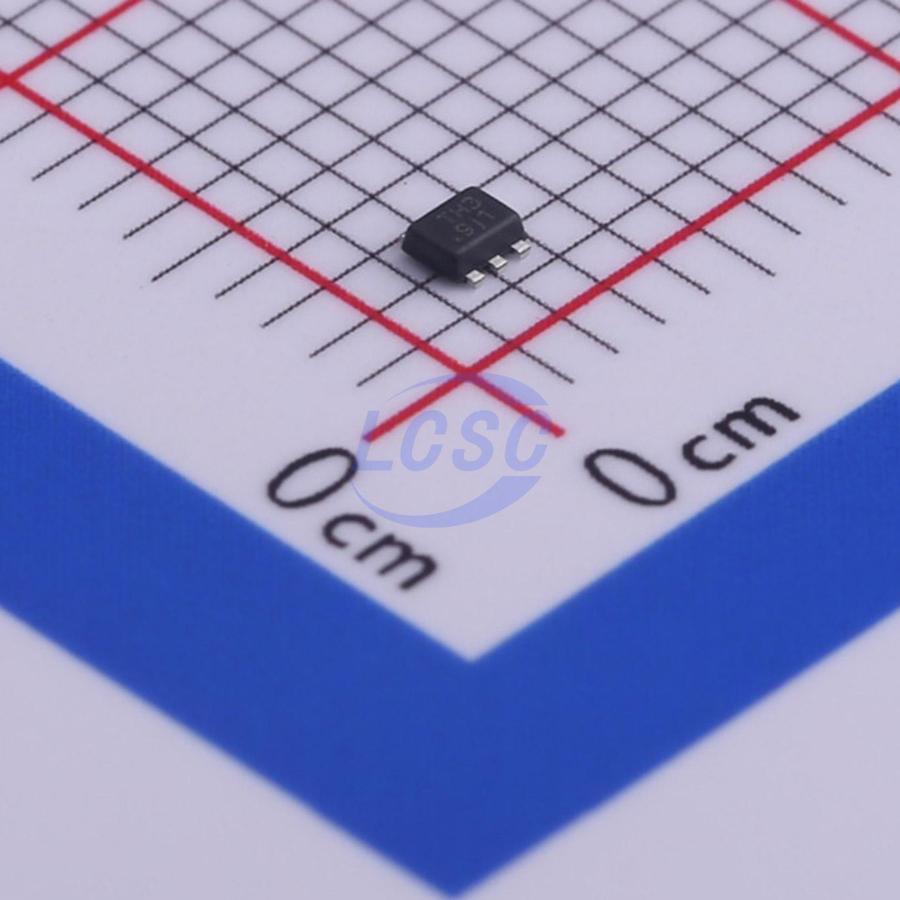

TMI3258
Step-down type 500kHz~700kHz Adjustable 3A SOT-563 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-563ROHS CompliantActive
High Efficiency 600kHz 3A Synchronous Step-Down Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI3258
- Store part #
- C478949
- Package / case
- SOT-563
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,068 in stock
#C478949
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹15.97 | ₹15.97 |
| 10+ | ₹12.73 | ₹127.30 |
| 30+ | ₹11.11 | ₹333.30 |
| 100+ | ₹9.90 | ₹990.00 |
| 500+ | ₹8.93 | ₹4,465.00 |
| 1,000+ | ₹8.44 | ₹8,440.00 |
1 × ₹15.97
₹15.97
excl. GST
₹18.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TMI3258
₹15.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 500kHz~700kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.012 g
Overview
A high efficiency 600kHz current mode constant on-time (CM-COT) control mode synchronous step-down DC-DC converter capable of delivering 3A current. Integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor size are achieved with 600kHz switching frequency. Adopts the CM-COT architecture to achieve fast transient responses for high voltage step down applications. Requires a minimum number of readily available standard external components and is available in a space saving 6-pin SOT563 ROHS compliant package.
Applications
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Notebook computer
- Wireless and DSL Modems
Key features
- High Efficiency: Up to 93%(@3.3V)
- 600kHz Frequency Operation
- Up to 3.0A Output Current
- Low RDS(ON) for internal switches: 70mΩ/35mΩ(top/bottom)
- 4.5V to 18V Input Voltage Range
- 0.807V Reference
- Current mode COT control to achieve fast transient responses
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup Mode
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Available in SOT563 Package
