TMIDatasheet (PDF)

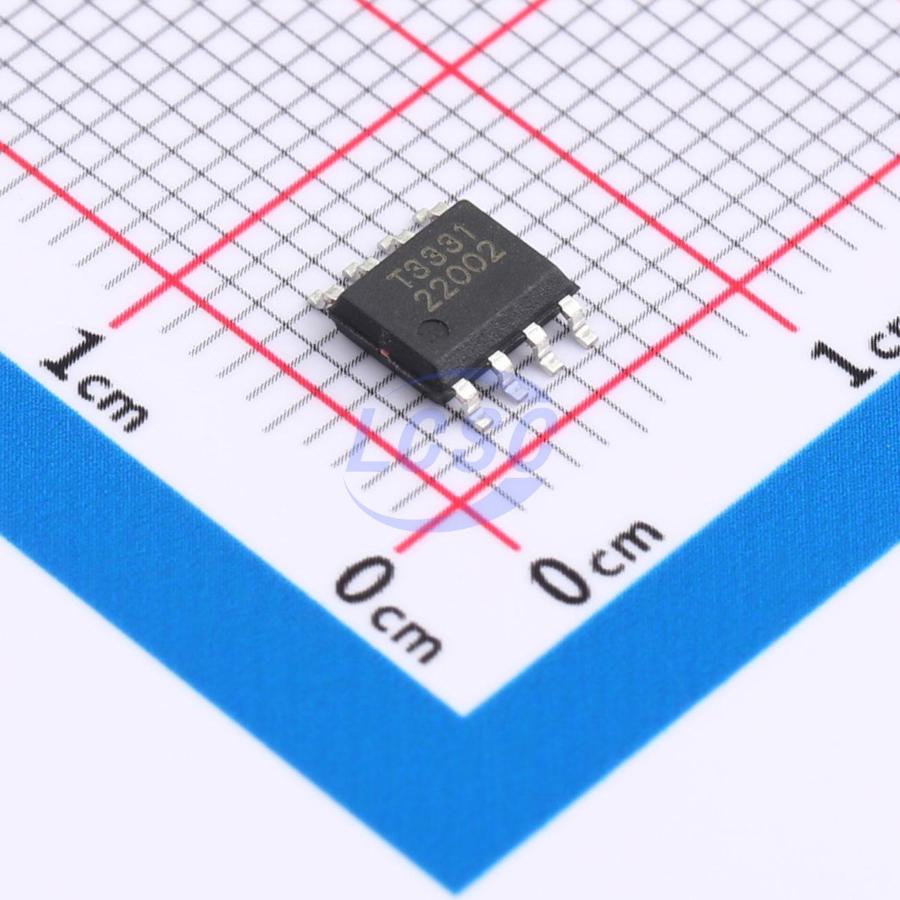

TMI3331
Step-down type 130kHz~500kHz Adjustable 3A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive
30V, 3A Wide-Input Range Synchronous Step-Down DC/DC Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI3331
- Store part #
- C7470272
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,645 in stock
#C7470272
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.02 | ₹105.10 |
| 50+ | ₹17.08 | ₹854.00 |
| 150+ | ₹15.11 | ₹2,266.50 |
| 500+ | ₹13.63 | ₹6,815.00 |
| 3,000+ | ₹12.45 | ₹37,350.00 |
| 6,000+ | ₹11.85 | ₹71,100.00 |
5 × ₹21.02
₹105.10
excl. GST
₹124.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI3331
₹105.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 130kHz~500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable current limiting;Cable compensation;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.105 g
Overview
TMI3331 and TMI3331A are wide input voltage, high efficiency step-down DC/DC converter. TMI3331 operates in force PWM mode with adjustable switching frequency, and TMI3331A operates in PFM mode at light load condition. TMI3331 and TMI3331A provide up to 3A output current. Switching frequency can be set by external resistor. TMI3331 and TMI3331A internal Integrate 80mΩ high side and 60mΩ low side power MOSFET, which allows a high efficiency over the wider range of the load. Advanced production features include input UVLO, thermal shutdown, soft start and input and output OVP. The TMI3331 and TMI3331A require a minimum number of readily available standard external components and is available in an 8-pin ESOP ROHS compliant package.
Applications
- Auto Electronic Equipment
- TV/Monitor
- Distributed Power Systems
- Networking Systems
Key features
- 36V Input Voltage Surge
- Wide input voltage Range: 8V~30V
- Up to 3A Output Current
- 130kHz~500kHz Adjustable Frequency
- Internal Compensation
- 32V Input OVP Protection
- Output OVP Protection
- Efficiency up to 93%
- Force PWM Operation: TMI3331
- PFM Operation in Light Load: TMI3331A
- ±2% Feedback Voltage Accuracy
- Integrated Soft Start
- Thermal Shutdown
- Constant Current Limit
- Short Circuit Hiccup Mode
- Cycle-by-Cycle Current Limit
- ESOP8 Package
