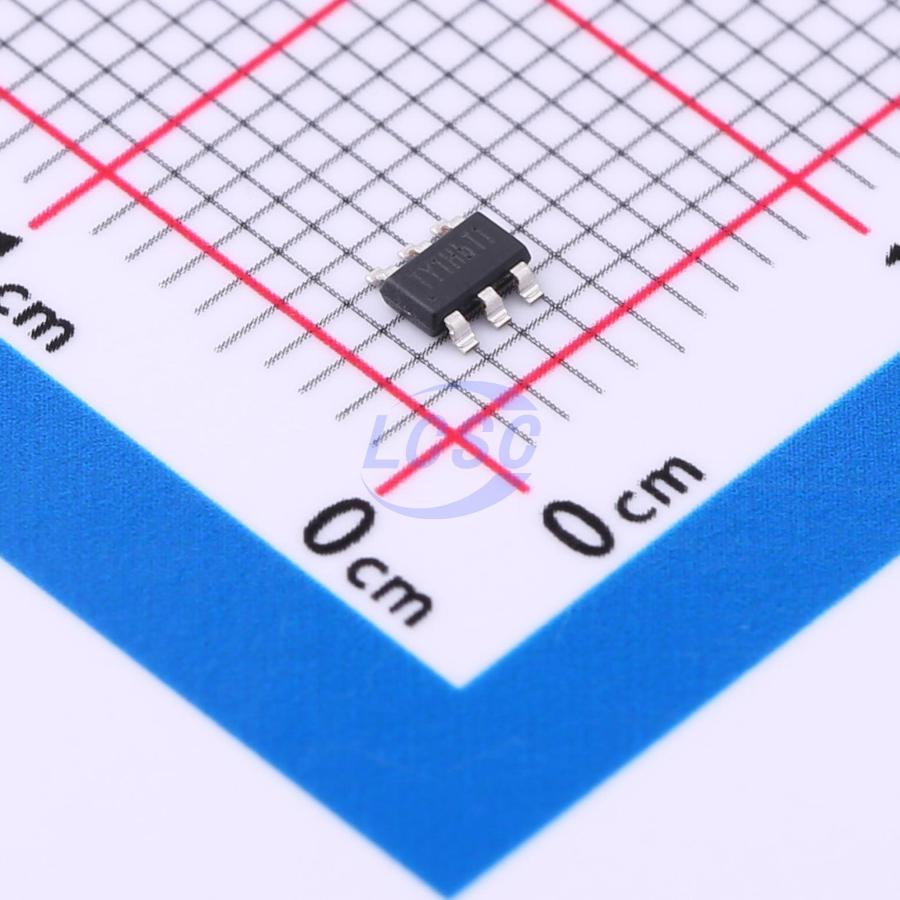

TMI3341
Step-down type 1.2MHz~1.8MHz Adjustable 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
1.5MHz, 30V, 1.2A Synchronous Step-Down Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI3341
- Store part #
- C5182732
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,265 in stock
#C5182732
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.68 | ₹93.40 |
| 50+ | ₹15.21 | ₹760.50 |
| 150+ | ₹13.48 | ₹2,022.00 |
| 500+ | ₹12.18 | ₹6,090.00 |
| 3,000+ | ₹11.14 | ₹33,420.00 |
| 6,000+ | ₹10.62 | ₹63,720.00 |
5 × ₹18.68
₹93.40
excl. GST
₹110.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI3341
₹93.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 1.2MHz~1.8MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 350uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The TMI3341 is a high efficiency 1.5MHz, synchronous step-down DC-DC converter capable of delivering up to 1.2A current. TMI3341 integrates both high and low side MOSFETs with low RDS(ON) to minimize the conduction loss. In light load condition, TMI3341 operates in PFM mode to provide high efficiency in light load mode. Low output voltage ripple and small external inductor and capacitor size are achieved with 1.5MHz switching frequency. The TMI3341 requires a minimum number of readily available standard external components and is available in a 6-pin SOT23-6 ROHS compliant package.
Applications
- Distributed Power Systems
- Flat Panel Television and Monitors
- Smart Home
- Industrial Power Systems
Key features
- Wide Input Range: 4.5V to 30V
- Feedback Voltage: 0.8V±2%
- 1.5MHz Switch Frequency
- Up to 1.2A Output Current
- Power Save Mode at Light Load
- COT control to achieve fast transient responses
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- 250mΩ/120 mΩ Low RDS(ON) internal FETs
- Over Current Protection with Hiccup Mode
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Build in Input Over Voltage Protection
- Available in SOT23-6 Package
