TMI

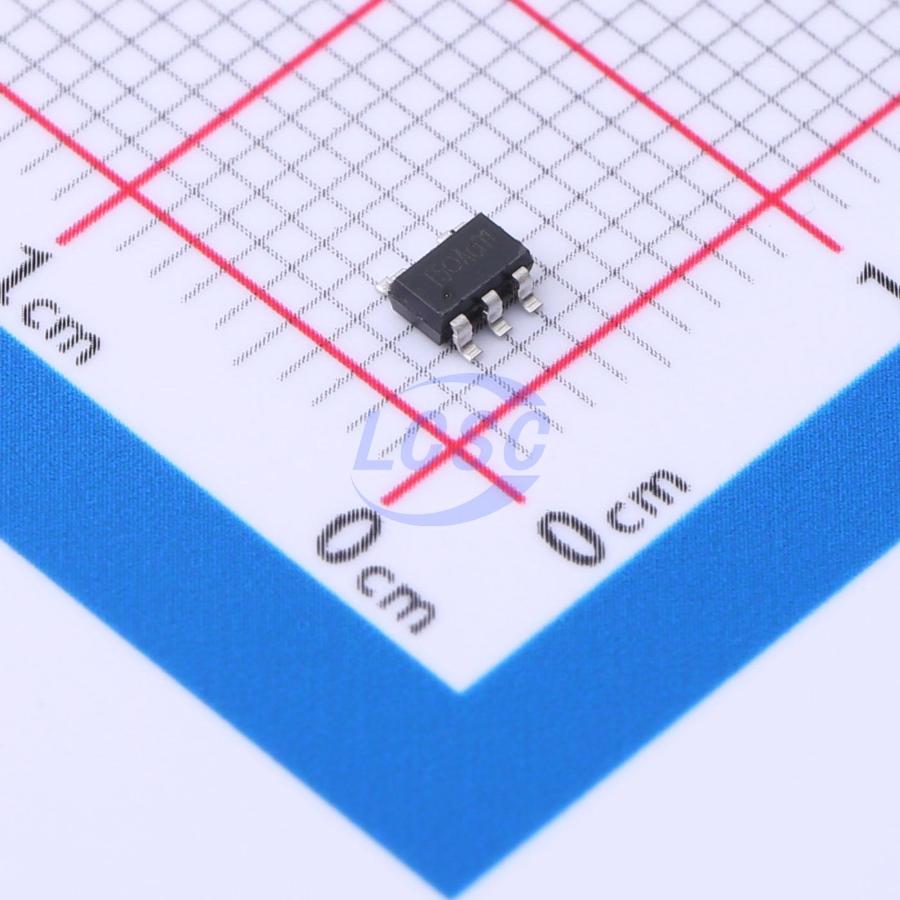

TMI3408C

Step-down type 1.5MHz Adjustable 600mV~5.5V 1.5A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5ROHS CompliantActive

1.5MHz 1.5A Synchronous Step-Down Converter

Manufacturer: TMI
Manufacturer part #: TMI3408C
Store part #: C5116078
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,170 in stock

#C5116078

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
10+	₹5.20	₹52.00
100+	₹4.15	₹415.00
300+	₹3.63	₹1,089.00
3,000+	₹3.24	₹9,720.00
6,000+	₹2.92	₹17,520.00
9,000+	₹2.77	₹24,930.00

Quantity (min 10, multiples of 10)

10 × ₹5.20

₹52.00

excl. GST

₹61.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TMI3408C

₹52.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Features: Overcurrent Protection;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 1.5A
Quiescent Current: 50uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.049 g

Overview

The TMI3408C is a constant frequency, current mode PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion battery. The output voltage can be regulated as low as 0.6V. The TMI3408C can also run at 100% duty cycle for low dropout operation, extending battery life in portable system. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load.

Applications

Cellular and Smart Phones
Wireless and DSL Modems
PDA/MID/PAD
Digital Still and Video Cameras

Key features

High Efficiency: Up to 96%
1.5MHz Constant Frequency Operation
Up to 1.5A Output Current (Vout = 1.2V)
No Schottky Diode Required
2.5V to 5.5V Input Voltage Range
Output Voltage as Low as 0.6V
100% Duty Cycle in Dropout
Low Quiescent Current: 50μA
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
Short Circuit Protection
Thermal Fault Protection
Inrush Current Limit and Soft Start
Input over voltage protection (OVP)
<1μA Shutdown Current
SOT23-5 Package
