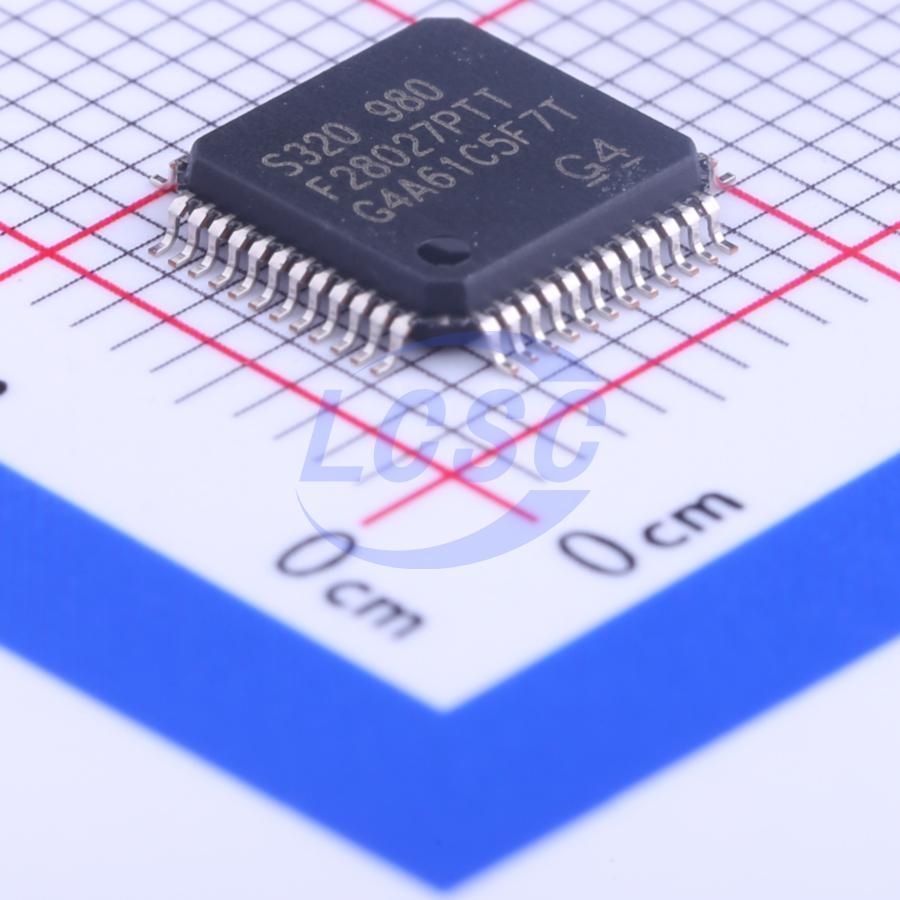

TMS320F28027PTT

The F2802x Piccolo™ family of microcontrollers provides the power of the C28xTM core coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, as well as providing a high level of analog integration. An internal voltage regulator allows for single rail operation. Enhancements have been made to the HRPWM module to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3-V fixed full scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead/latency.

Key features

• High-Efficiency 32-Bit CPU (TMS320C28x™) 60-MHz, 50-MHz, and 40-MHz Devices Single 3.3-V Supply
• Integrated Power-on and Brown-out Resets
• Two Internal Zero-pin Oscillators
• Up to 22 Multiplexed GPIO Pins
• Three 32-Bit CPU Timers
• On-Chip Flash, SARAM, OTP Memory
• Code-security Module
• Serial Port Peripherals (SCI/SPI/I2C)
• Enhanced Pulse Width Modulator (ePWM)
• High-Resolution PWM (HRPWM)
• Enhanced Capture (eCAP)
• Analog-to-Digital Converter (ADC)
• On-Chip Temperature Sensor
• Comparator
• 38-Pin and 48-Pin Packages
• 60 MHz (16.67-ns Cycle Time)
• 50 MHz (20-ns Cycle Time)
• 40 MHz (25-ns Cycle Time)
• 16 x 16 and 32×32 MAC Operations
• 16× 16 Dual MAC
• Harvard Bus Architecture
• Atomic Operations
• Fast Interrupt Response and Processing
• Unified Memory Programming Model
• Code-Efficient (in c/c++ and Assembly)
• Low Device and System Cost: Single 3.3-V Supply, No Power Sequencing Requirement, Integrated Power-on and Brown-out Resets, Small Packaging, as Low as 38-Pin Available, Low Power, No Analog Support Pins
• Clocking: Two Internal Zero-pin Oscillators, On-Chip Crystal Oscillator/External Clock Input, Dynamic PLL Ratio Changes Supported, Watchdog Timer Module, Missing Clock Detection Circuitry
• Up to 22 Individually Programmable, Multiplexed GPIO Pins With Input Filtering
• Peripheral Interrupt Expansion (PIE) Block That Supports All Peripheral Interrupts
• Three 32-Bit CPU Timers
• Independent 16-Bit Timer in Each ePWM Module
• On-Chip Memory – Flash, SARAM, OTP, Boot ROM Available
• 128-Bit Security Key/Lock – Protects Secure Memory Blocks, Prevents Firmware Reverse Engineering
• Serial Port Peripherals – One SCI (UART) Module, One SPI Module, One Inter-Integrated-Circuit (I2C) Bus
• Advanced Emulation Features – Analysis and Breakpoint Functions, Real-Time Debug via Hardware
• 2802x, 2802xx Packages – 38-Pin DA Thin Shrink Small-Outline Package (TSSOP), 48-Pin PT Low-Profile Quad Flatpack (LQFP)
