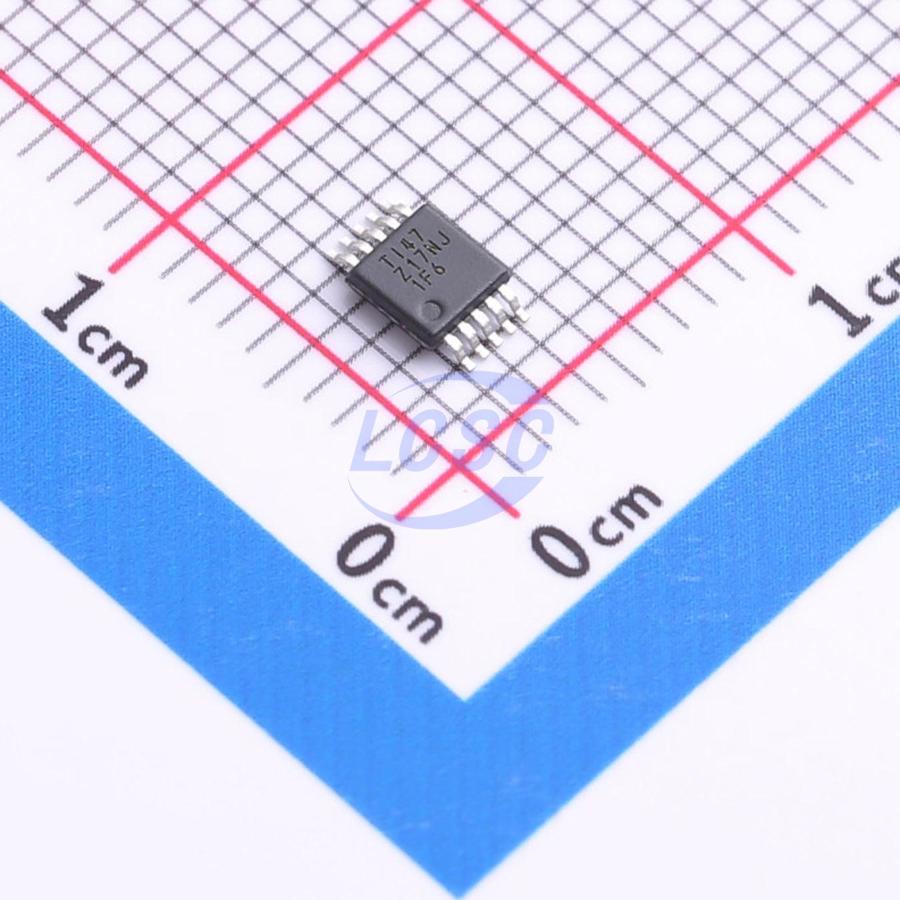

TMUX1204DGSR

1.08V~5.5V VSSOP-10-0.5mm Analog Switches, Multiplexers, Demultiplexers RoHS

VSSOP-10-0.5mmROHS3 CompliantActive

4:1 general-purpose analog multiplexer

Manufacturer: TI
Manufacturer part #: TMUX1204DGSR
Store part #: C2840022
Package / case: VSSOP-10-0.5mm
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,052 in stock

#C2840022

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹63.01	₹63.01
10+	₹49.55	₹495.50
30+	₹42.80	₹1,284.00
100+	₹36.94	₹3,694.00
500+	₹35.42	₹17,710.00
1,000+	₹34.33	₹34,330.00

Quantity (min 1)

1 × ₹63.01

₹63.01

excl. GST

₹74.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TMUX1204DGSR

₹63.01 for 1 + GST

Specifications

Features: Break-before-make function
Operating Temperature: -40℃~+125℃
Quiescent Current: 0.01uA
Voltage - Supply: 1.08V~5.5V
Propagation Delay: 14ns@5V,15pF
Voltage Supply Source: Single Supply

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.39 g

Overview

TMUX1204 is a modern CMOS analog MUX offering a 4:1 single-ended (1-channel) configuration. Powered by a single supply (1.08V to 5.5V), it suits applications ranging from personal electronics to building automation systems. The 10nA low supply current makes it suitable for portable applications. All logic inputs feature 1.8V logic-level compatible thresholds, ensuring TTL and CMOS logic compatibility when the device operates within the valid supply voltage range. Failsafe logic circuitry allows voltage to be applied to control pins before the supply pin, protecting the device from potential damage.
