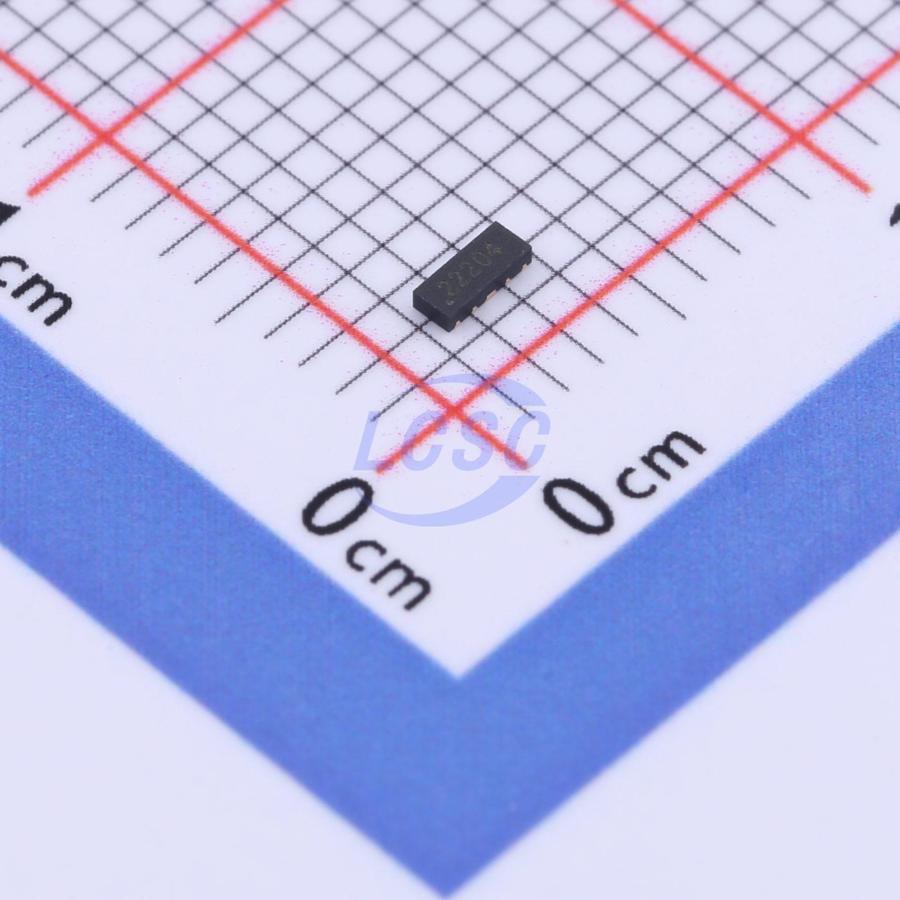

TMUX1204DQAR
4 Circuit IC SWITCH 4:1 5Ω USON-10(1x2.5)
USON-10(1x2.5)ROHS3 CompliantActive
TMUX1204 5V 4:1 General Purpose Analog Multiplexer
- Manufacturer
- TI
- Manufacturer part #
- TMUX1204DQAR
- Store part #
- C1849379
- Package / case
- USON-10(1x2.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,957 in stock
#C1849379
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.25 | ₹57.25 |
| 10+ | ₹45.10 | ₹451.00 |
| 30+ | ₹39.03 | ₹1,170.90 |
| 100+ | ₹33.62 | ₹3,362.00 |
| 500+ | ₹32.10 | ₹16,050.00 |
| 1,000+ | ₹31.22 | ₹31,220.00 |
1 × ₹57.25
₹57.25
excl. GST
₹67.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMUX1204DQAR
₹57.25 for 1 + GST
Specifications
- Features
- Bidirectional analog channel;Fault protection
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 1.08V~5.5V
- Ron
- 5Ω
- Number of Channels
- 4
- Con
- 42pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
TMUX1204 is a modern CMOS analog MUX offering a 4:1 single-ended (1-channel) configuration. Powered by a single supply (1.08V to 5.5V), it suits applications ranging from personal electronics to building automation systems. The 10nA low supply current makes it suitable for portable applications. All logic inputs feature 1.8V logic-level compatible thresholds, ensuring TTL and CMOS logic compatibility when the device operates within the valid supply voltage range. Failsafe logic circuitry allows voltage to be applied to control pins before the supply pin, protecting the device from potential damage.
Applications
- Analog and digital multiplexing or demultiplexing
- Motor drivers
- Servo driver control modules
- Building automation
- Barcode scanners
- Analog input modules
- Power delivery
- Smoke detectors
- Video surveillance
- Thermal imaging cameras
- Electronic point-of-sale terminals
- Appliances
- Consumer audio
Key features
- Rail-to-rail operation
- Bidirectional signal path
- 1.8V logic compatible
- Fail-safe logic
- Low on-resistance: 5Ω
- Wide supply voltage range: 1.08V to 5.5V
- -40℃ to +125℃ operating temperature
- Low supply current: 10nA
- Transition time: 14ns
- Break-before-make switching
- ESD protection HBM: 2000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TMUX1104DQAR#C2865387TI · USON-10(1x2.5) | TI | USON-10(1x2.5) | On request | ₹616.84 · 0 in stock | View |
