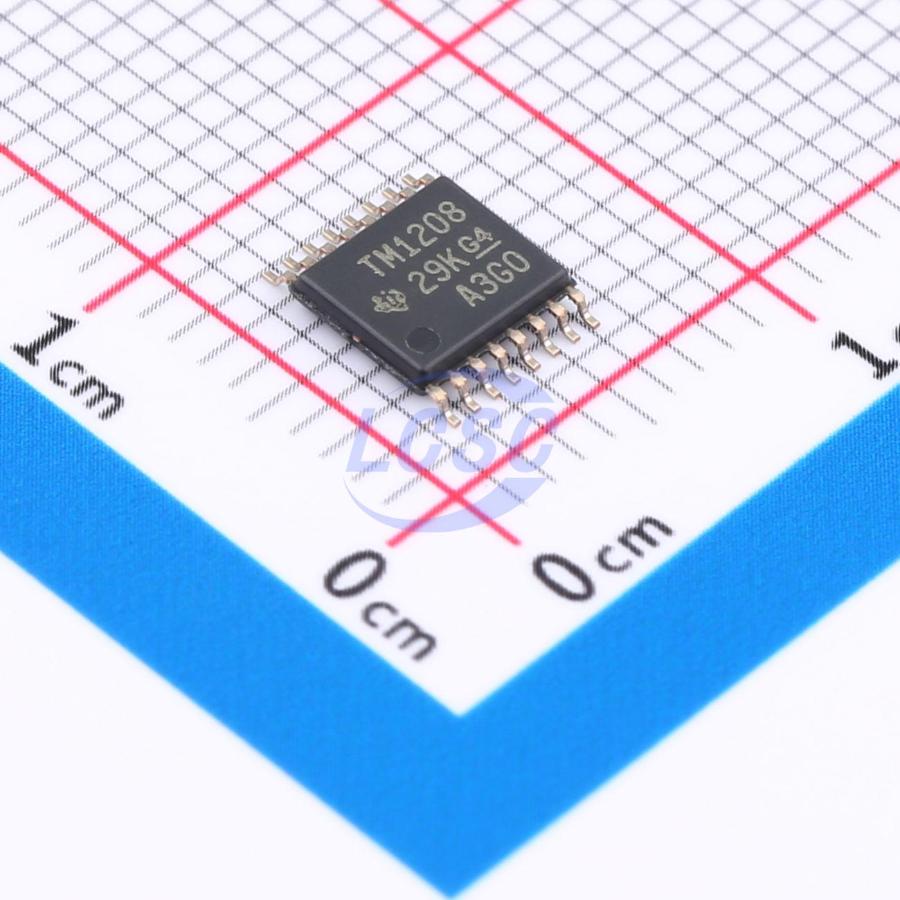

TMUX1208PWR

The TMUX1208 and TMUX1209 are general purpose complementary metal-oxide semiconductor (CMOS) multiplexers (MUX). The TMUX1208 offers 8:1 single-ended channels, while the TMUX1209 offers differential 4:1 or dual 4:1 single-ended channels. Wide operating supply of 1.08 V to 5.5 V allows for use in a broad array of applications from personal electronics to building automation applications. The device supports bidirectional analog and digital signals on the source (Sx) and drain (D) pins ranging from GND to VDD. All logic inputs have 1.8 V logic compatible thresholds, ensuring both TTL and CMOS logic compatibility when operating in the valid supply voltage range. Fail-Safe Logic circuitry allows voltages on the control pins to be applied before the supply pin, protecting the device from potential damage.

Applications

• Analog and Digital Multiplexing / Demultiplexing
• HVAC: Heating, Ventilation, and Air Conditioning
• Smoke Detectors
• Video Surveillance
• Electronic Point of Sale
• Battery-Powered Equipment
• Appliances
• Consumer Audio

Key features

• Rail to Rail Operation
• Bidirectional Signal Path
• Low On-Resistance: 5 Ω
• Wide Supply Range: 1.08 V to 5.5 V
• -40°C to +125°C Operating Temperature
• 1.8 V Logic Compatible
• Fail-Safe Logic
• Low Supply Current: 10 nA
• Transition Time: 14 ns
• Break-Before-Make Switching
• ESD Protection HBM: 2000 V
• Industry-Standard TSSOP and QFN Packages
