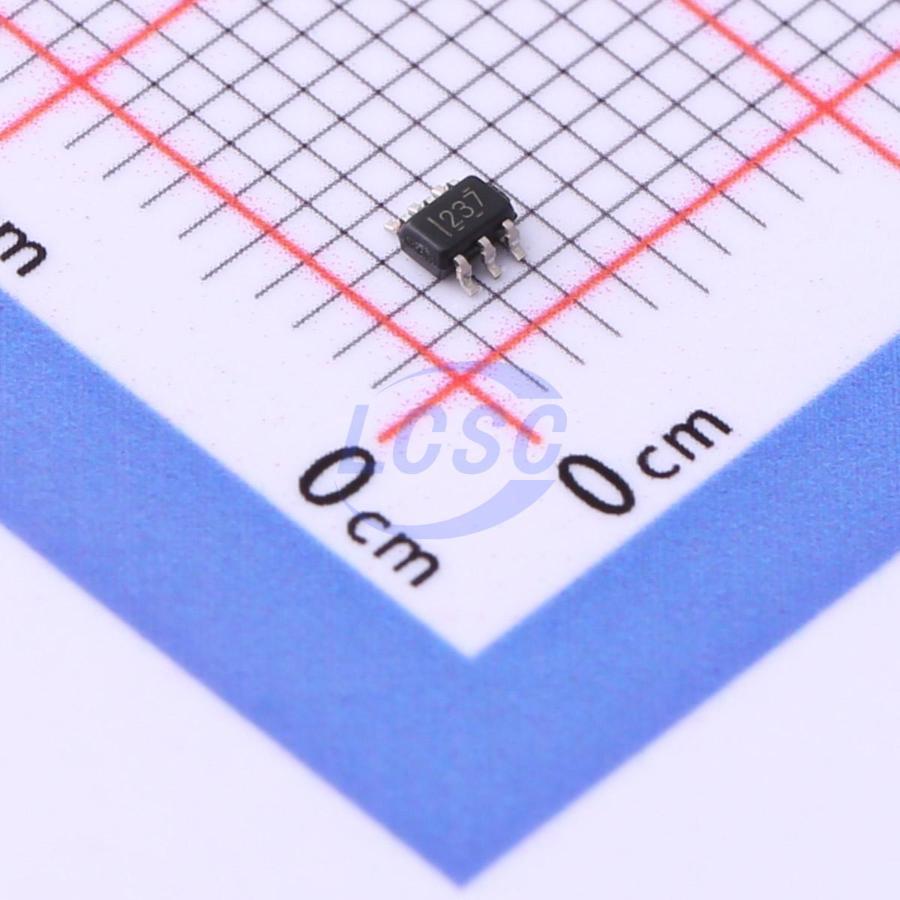

TMUX1237DCKR

The TMUX1237 is a general purpose 2:1, single-pole double-throw (SPDT), switch that supports a wide operating range of 1.08 V to 5.5 V. The device supports bidirectional analog and digital signals on the source (Sx) and drain (D) pins ranging from GND to VDD. The state of the select pin (SEL) controls which of the two sources pins are connected to the drain pin. Additionally, the TMUX1237 has a low supply current of 7 nA which enables the device to be used in a host of handheld or low power applications. The TMUX1237 improves system reliability by eliminating overshoot that might occur in a system due to switching between two voltage levels on the source (Sx) pins. In addition, the TMUX1237 also maintains fast switching times, enabling it to improve system performance for a wide range of applications from communications equipment to building automation. All logic inputs have 1.8 V logic compatible thresholds, ensuring both TTL and CMOS logic compatibility when operating in the valid supply voltage range. Fail-Safe Logic circuitry allows voltages on the control pins to be applied before the supply pin, protecting the device from potential damage.

Applications

• Analog and Digital Switching
• I2C and SPI Bus Multiplexing
• Remote Radio Units (RRU)
• Active Antenna System mMIMO (AAS)
• Rack Server
• Network Interface Card (NIC)
• Barcode Scanner
• Building Automation
• Analog Input Module
• Motor Drives
• Video Surveillance
• Electronic Point of Sale
• Desktop PC
• Appliances

Key features

• No Overshoot When Switching Inputs
• Rail-to-rail Operation
• Bidirectional Signal Path
• 1.8 V Logic Compatible
• Fail-safe Logic
• Low On-resistance: 3 Ω
• Wide Supply Range: 1.08 V to 5.5 V
• -40°C to +125°C Operating Temperature
• Low Supply Current: 7 nA
• Break-before-make Switching
• ESD Protection HBM: 2000 V
