TMUX136MRSER
IC SWITCH 2:1 5.7Ω UQFN-10(1.5x2)
UQFN-10(1.5x2)ROHS3 CompliantActive

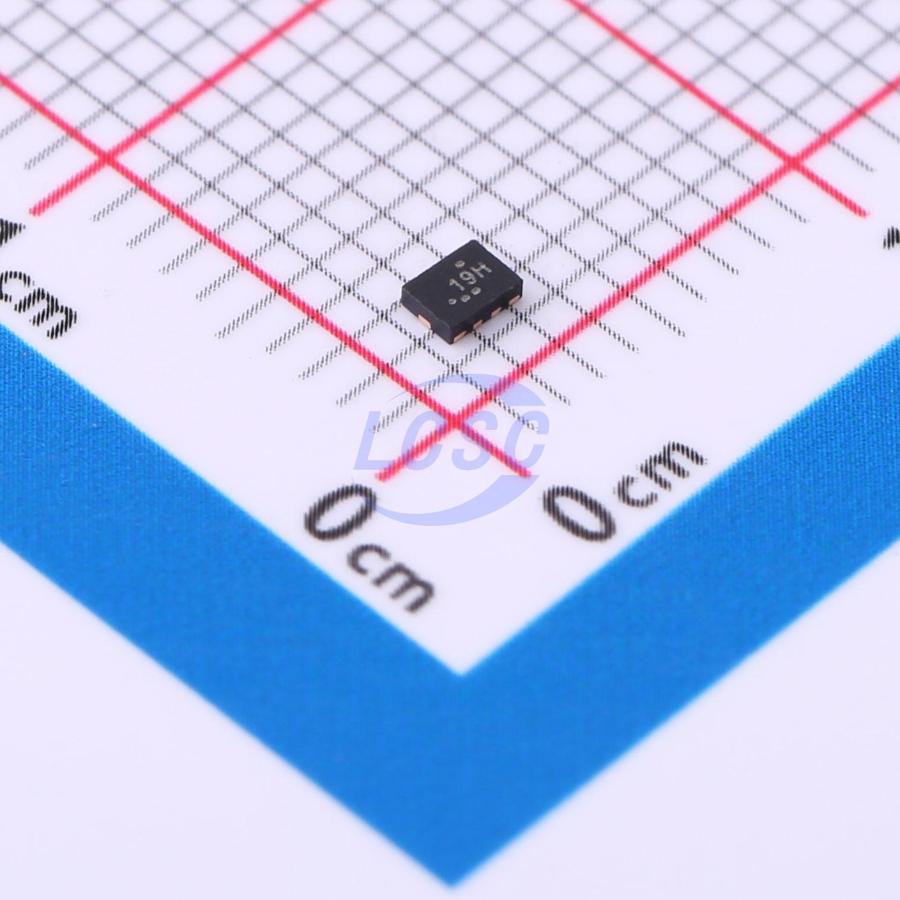

TMUX136 6GHz 2-Channel 2:1 Switch with Power-Off Isolation
- Manufacturer
- TI
- Manufacturer part #
- TMUX136MRSER
- Store part #
- C2673277
- Package / case
- UQFN-10(1.5x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,453 in stock
#C2673277
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.05 | ₹104.05 |
| 10+ | ₹87.98 | ₹879.80 |
| 30+ | ₹76.68 | ₹2,300.40 |
| 100+ | ₹67.34 | ₹6,734.00 |
| 500+ | ₹64.30 | ₹32,150.00 |
| 1,000+ | ₹62.56 | ₹62,560.00 |
1 × ₹104.05
₹104.05
excl. GST
₹122.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMUX136MRSER
₹104.05 for 1 + GST
Specifications
- Features
- Power-off isolation;Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 2.3V~4.8V
- Ron
- 5.7Ω
- Number of Channels
- 2
- Propagation Delay
- 100ps
- Con
- 1.6pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.076 g
Overview
The TMUX136 is a high-performance 6GHz 2-channel 2:1 switch supporting both differential and single-ended signals. The device features a wide VCC range of 2.3V to 4.8V and supports power-off protection, forcing all I/O pins into high-impedance mode when the VCC pin is powered off. Select pins on the TMUX136 support 1.8V control voltage, allowing direct connection to GPIO pins of low-voltage processors. The TMUX136 is available in a compact 10-pin UQFN package measuring only 1.5mm×2mm, making it ideal for space-constrained PCB designs.
Applications
- Handheld terminals: smartphones
- Laptops
- Tablets
- Multimedia electronic point-of-sale terminals
- Portable field instrument monitors
Key features
- VCC range: 2.3V to 4.8V
- High-performance switching characteristics:
- Bandwidth (-3dB): 6.1GHz
- RON (typical): 5.7Ω
- CON (typical): 1.6pF
- Current consumption: 30μA (typical)
- I protection prevents leakage current in power-off state
- 1.8V compatible control inputs (SEL, EN)
- ESD performance:
- 5kV Human Body Model (A114B, Class II)
- 1kV Charged Device Model (C101)
- Compact 10-pin UQFN package (1.5mm×2mm, 0.5mm pitch)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPG3USB3000YP#C42449025TECH PUBLIC · QFN-10(1.5x2) | TECH PUBLIC | QFN-10(1.5x2) | 278 | ₹80.05 · 278 in stock | View |
 | TS3USB3000RSER#C882807TI · UQFN-10(1.5x2) | TI | UQFN-10(1.5x2) | 5,045 | ₹97.09 · 5,045 in stock | View |
| PSMUX136ZUAEX#C19950428DIODES · UQFN-10(1.5x2) | DIODES | UQFN-10(1.5x2) | 4 | ₹116.73 · 4 in stock | View | |
| PI3USB3000ZUAEX#C19950416DIODES · UQFN-10(1.5x2) | DIODES | UQFN-10(1.5x2) | 2 | ₹131.10 · 2 in stock | View | |
 | TS3USB3000RSER-TP#C49451971TECH PUBLIC · QFN-10(1.5x2) | TECH PUBLIC | QFN-10(1.5x2) | 2,401 | ₹72.58 · 2,401 in stock | View |
