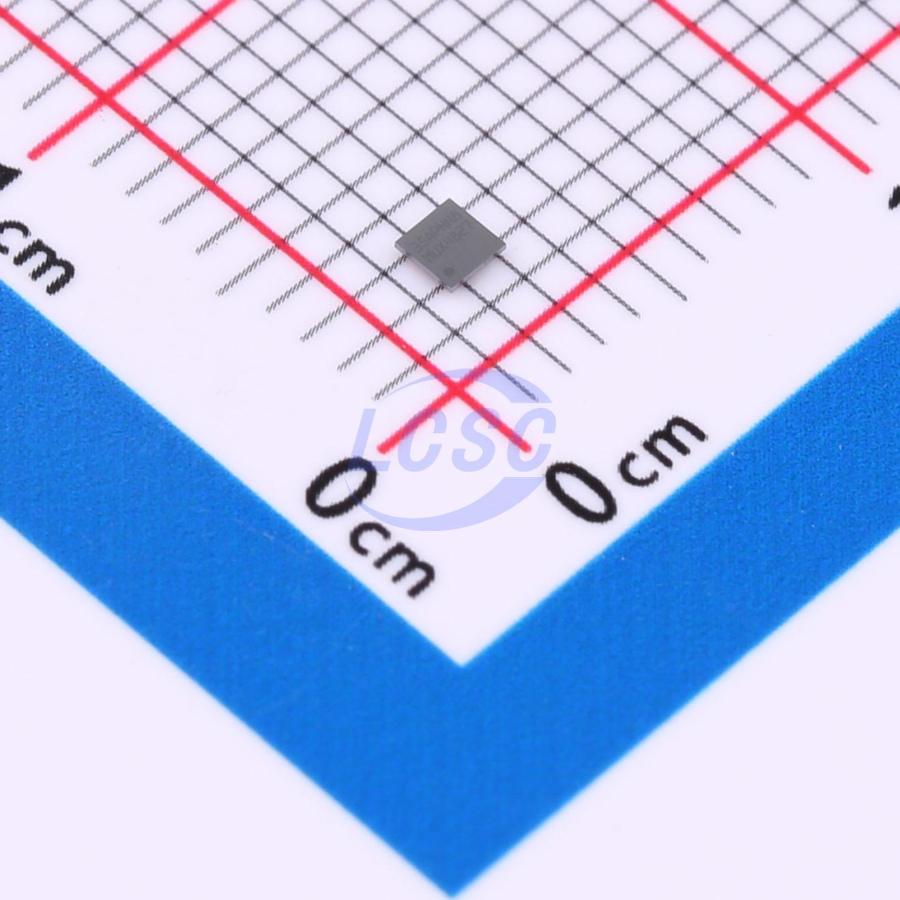

TMUX4827YBHR

TMUX4827 is a CMOS multiplexer featuring two selectable 2:1 SPDT switch channels. The device operates from a single supply (1.8V to 5.5V) while passing bidirectional analog and digital signals beyond the supply range, from -12V to 12V. The TMUX4827 also provides bidirectional power-off protection up to ±12V, isolating the switch even when no supply voltage is present (VDD = 0V). Without this protection, any voltage on the switch could back-power the supply rail through internal ESD diodes, potentially damaging the rest of the system. With a THD+N of 0.001% and RON flatness of 1mΩ, the TMUX4827 is ideal for transmitting precision analog and audio signals without introducing distortion.

Applications

• Audio input/output switching
• Ultrasonic gas flow transmitter
• Analog input module
• Industrial module detection

Key features

• Supply range: 1.8 to 5.5V
• Signal range beyond supply: -12V to 12V
• High current support: >1A (maximum)
• Ultra-low on-resistance: 0.13Ω
• Low on-resistance flatness: 1.0mΩ
• Low THD+N: 0.001% (-100dB)
• Operating temperature: -40°C to +125°C
• Power-off protection
• Over-temperature protection
• 1.8V logic compatible
• Fail-safe logic
• Break-before-make switching
