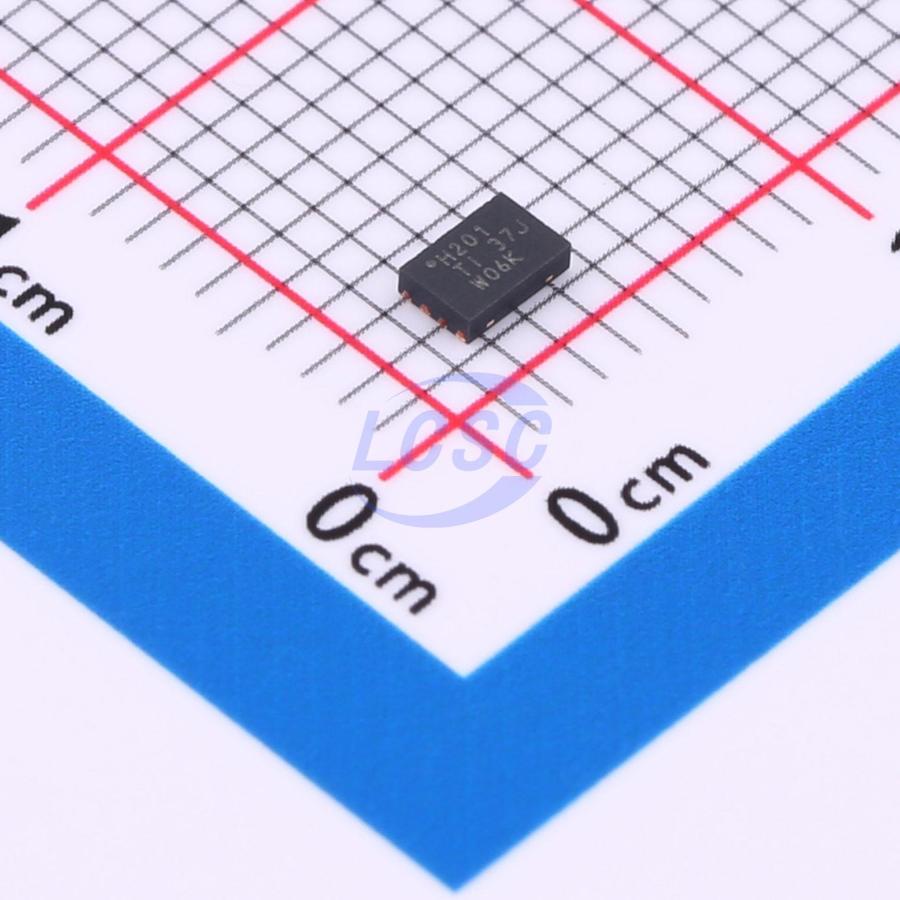

TMUX6201RQXR

The TMUX620x is a CMOS precision switch in a single-channel 1:1 (SPST) configuration. The device operates from a single supply (4.5V to 36V), dual supply (±4.5V to ±18V), or asymmetric supply (e.g., VDD = 12V, VSS = −5V). The TMUX620x supports bidirectional analog and digital signals ranging from VSS to VDD on the source (S) and drain (D) pins. The TMUX620x can be enabled or disabled by controlling the SEL pin. When disabled, the signal path switch is open. All logic control inputs support logic levels from 1.8V to VDD, compatible with TTL and CMOS logic when the device operates within the valid supply voltage range. A fault-protected logic circuit allows voltage to be applied to the control pins before the supply pins, protecting the device from potential damage.

Applications

• Fiber optic networks
• Optical test equipment
• Wired networks
• Factory automation and industrial control
• Programmable Logic Controller (PLC)
• Semiconductor test
• Ultrasonic scanners
• Patient monitoring and diagnostics
• Remote radio units
• Data acquisition systems

Key features

• Dual supply voltage range: ±4.5V to ±18V
• Single supply voltage range: 4.5V to 36V
• Low on-resistance: 1.2Ω
• Low charge injection: −10pC
• Operating temperature range: -40℃ to +125℃
• Integrated pull-down resistors on logic pins
• 1.8V logic level compatible
• Fail-safe logic
• Rail-to-rail operation
• Bidirectional signal path
• Break-before-make switching
