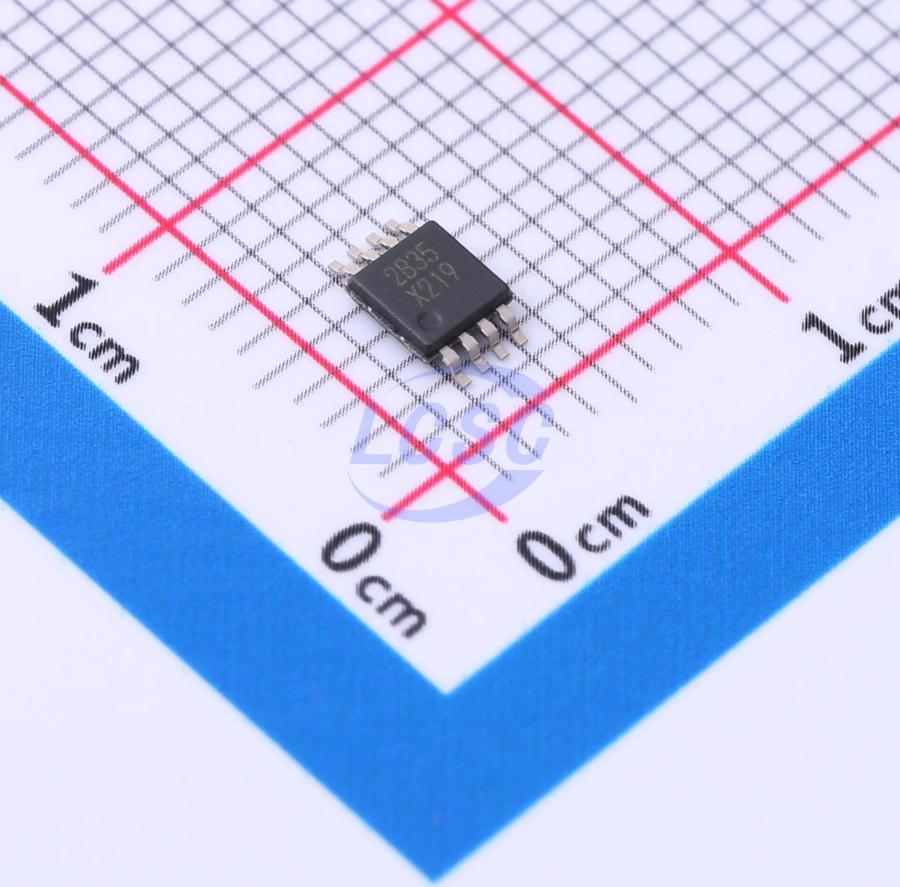

TMUX6219DGKR

The TMUX6219 is a CMOS switch in a single-channel 2:1 (SPDT) configuration. This device operates from a single supply (4.5V to 36V), dual supply (±4.5V to ±18V), or asymmetric supply (e.g., VDD=5V, VSS=-8V). The TMUX6219 supports bidirectional analog and digital signals ranging from VSS to VDD on the source (Sx) and drain (D) pins. The TMUX6219 can be enabled or disabled via the EN pin. When disabled, both signal path switches are turned off. When enabled, the SEL pin selects either signal path 1 (S1 to D) or signal path 2 (S2 to D). All logic control inputs support logic levels from 1.8V to VDD, ensuring TTL and CMOS logic compatibility across the valid supply voltage range. A fault-protection logic circuit allows voltage to be applied to the control pins before the supply pins, protecting the device from potential damage. The TMUX6219 is part of a family of precision switches and multiplexers. These devices feature very low on- and off-state leakage current and low charge injection, making them suitable for high-precision measurement applications.

Applications

• Factory automation and industrial control
• Programmable Logic Controller (PLC)
• Analog input modules
• Semiconductor testing
• AC charging stations
• Ultrasonic scanners
• Patient monitoring and diagnostics
• Fiber optic networks
• Optical test equipment
• Remote radio units
• Wired networks
• Data acquisition systems
• Gas meters
• Flow transmitters

Key features

• Dual supply voltage range: ±4.5V to ±18V
• Single supply voltage range: 4.5V to 36V
• Low on-resistance: 2.1Ω
• Low charge injection: -10pC
• High current support: 330mA (max) (VSSOP)
• High current support: 440mA (max) (WSON)
• -40°C to +125°C operating temperature
• 1.8V logic level compatible
• Fault-protected logic
• Rail-to-rail operation
• Bidirectional signal path
• Break-before-make switching
