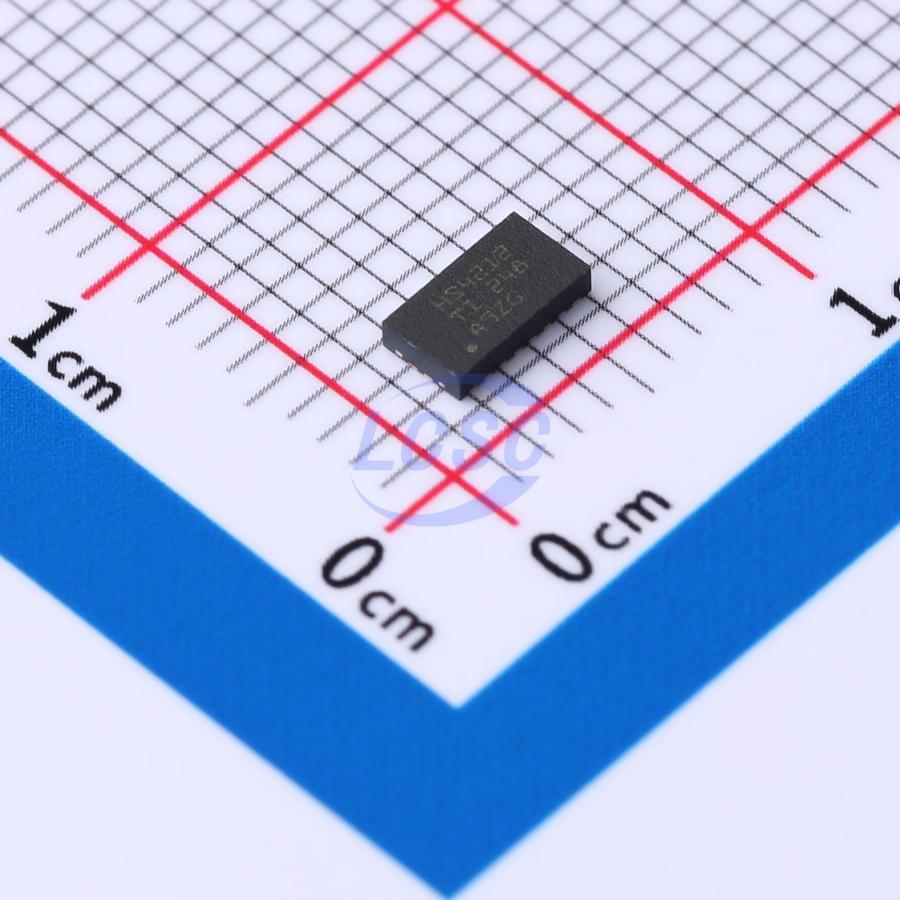

TMUXHS4212RKSR
2 Circuit IC SWITCH 2:1 8.4Ω VQFN-20(2.5x4.5)
VQFN-20(2.5x4.5)ROHS3 CompliantActive
Dual-channel differential 2:1 multiplexer or 1:2 demultiplexer
- Manufacturer
- TI
- Manufacturer part #
- TMUXHS4212RKSR
- Store part #
- C2869871
- Package / case
- VQFN-20(2.5x4.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,271 in stock
#C2869871
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.29 | ₹119.29 |
| 10+ | ₹108.86 | ₹1,088.60 |
| 30+ | ₹103.19 | ₹3,095.70 |
| 100+ | ₹96.66 | ₹9,666.00 |
| 500+ | ₹93.62 | ₹46,810.00 |
| 1,000+ | ₹92.31 | ₹92,310.00 |
1 × ₹119.29
₹119.29
excl. GST
₹140.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMUXHS4212RKSR
₹119.29 for 1 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- 0℃~+70℃
- Voltage - Supply
- 1.71V~1.98V;3V~3.6V
- Number of Channels
- 2
- Ron
- 8.4Ω
- Propagation Delay
- 70ps
- Con
- 0.6pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
Provides bidirectional 2:1 mux or 1:2 demux Supports USB 3.2 up to 10 Gbps (Gen 2.0) and PCI Express up to 16 Gbps (Gen 4.0) Also supports SATA, SAS, Mipi DSI/CSI, FPDLink III, LVDS, SFI and Ethernet interfaces −3-dB differential BW of 13 GHz Adaptive common mode voltage tracking Supports common mode voltage up to 0 to 1.8 V Single supply voltage VCC of 3.3 or 1.8 V Ultra low active (180 μA) and standby power consumption (<2 μA) Industrial temperature option with -40°C to 105°C Available in 2.5 mm×4.5 mm QFN package
Applications
- PC and notebooks
- Smartphone, tablets, and TV
- Gaming, home theater, and entertainment
- Data center and enterprise computing
- Medical applications
- Test and measurements
- Factory automation and control
- Electronic point of sale (EPOS)
- Wireless infrastructure
Key features
- Supports USB 3.2 up to 10 Gbps (Gen 2.0) and PCI Express up to 16 Gbps (Gen 4.0)
- Also supports SATA, SAS, Mipi DSI/CSI, FPDLink III, LVDS, SFI and Ethernet interfaces
- −3-dB differential BW of 13 GHz
- Adaptive common mode voltage tracking
- Supports common mode voltage up to 0 to 1.8 V
- Single supply voltage VCC of 3.3 or 1.8 V
- Ultra low active (180 μA) and standby power consumption (<2 μA)
- Industrial temperature option with -40°C to 105°C
- Available in 2.5 mm×4.5 mm QFN package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TMUXHS4212IRKST#C3656907TI · VQFN-20(4.5x2.5) | TI | VQFN-20(4.5x2.5) | 305 | ₹247.18 · 305 in stock | View |
 | TMUXHS4212IRKSR#C3656912TI · VQFN-20(4.5x2.5) | TI | VQFN-20(4.5x2.5) | 2,977 | ₹165.00 · 2,977 in stock | View |
 | TMUXHS4212RKST#C3009915TI · VQFN-20(2.5x4.5) | TI | VQFN-20(2.5x4.5) | On request | ₹368.55 · 0 in stock | View |
