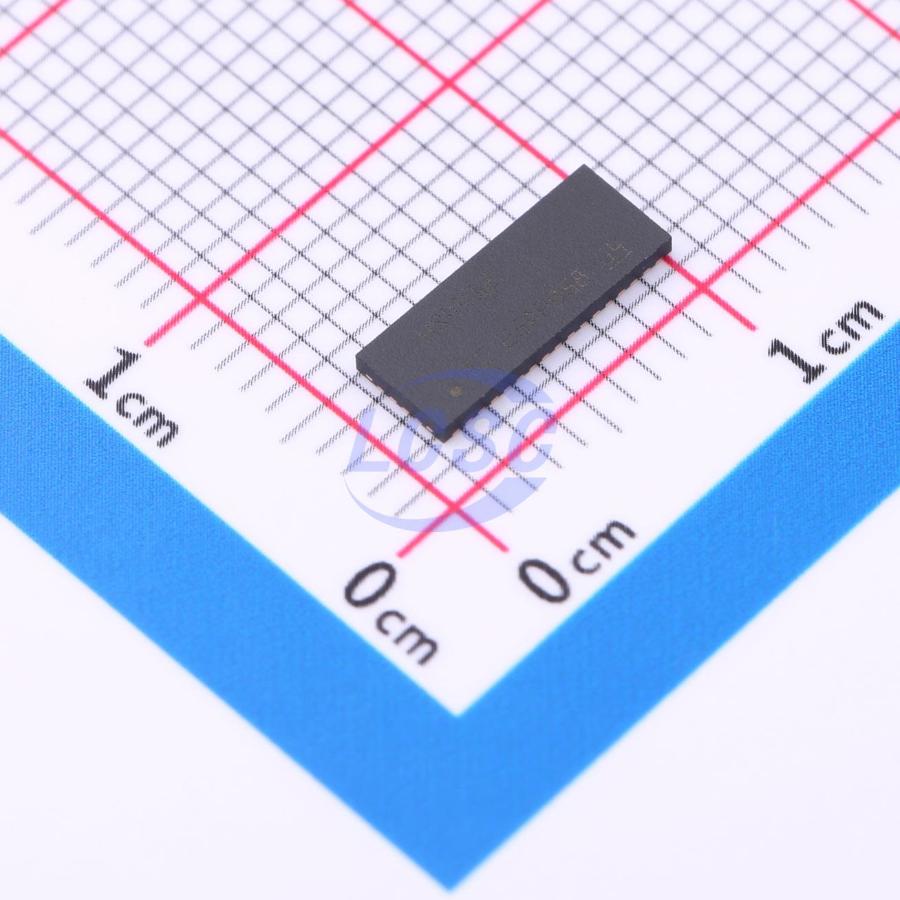

TMUXHS4412IRUAR

Provides bidirectional passive 2:1 MUX / 1:2 DEMUX for four differential channels Data rate support up to 20 Gbps Supports PCI Express 4.0 up to 16 Gbps Also supports USB 3.2, USB 4.0, TBT 3.0, DP 2.0, SATA, SAS, MIPI DSI/CSI, FPD-Link III, LVDS, SFI and Ethernet Interfaces –3-dB differential BW of 13 GHz Excellent dynamic characteristics for PCIe 4.0 signaling Insertion loss = -1.3 dB at 8 GHz Return loss = -22 dB at 8 GHz Cross-talk = -58 dB at 8 Ghz Adaptive common mode voltage tracking Supports common mode voltage up to 0 to 1.8 V Single supply voltage VCC of 3.3 or 1.8 V Ultra low active (320 μA) and standby power consumption (0.1 μA) Industrial temperature option with -40°C to 105°C Pin-to-pin PCIe 4.0 linear redriver option with DS160PR421 and DS160PR412 Available in 3.5 mm x 9 mm QFN package

Applications

• PC and notebooks
• Gaming, Home theater & entertainment and TV
• Data center and enterprise computing
• Medical applications
• Test and measurements
• Factory automation and control
• Electronic point of sale (EPOS)
• Wireless infrastructure

Key features

• Data rate support up to 20 Gbps
• Supports PCI Express 4.0 up to 16 Gbps
• Also supports USB 3.2, USB 4.0, TBT 3.0, DP 2.0, SATA, SAS, MIPI DSI/CSI, FPD-Link III, LVDS, SFI and Ethernet Interfaces
• –3-dB differential BW of 13 GHz
• Excellent dynamic characteristics for PCIe 4.0 signaling
• Insertion loss = -1.3 dB at 8 GHz
• Return loss = -22 dB at 8 GHz
• Cross-talk = -58 dB at 8 Ghz
• Adaptive common mode voltage tracking
• Supports common mode voltage up to 0 to 1.8 V
• Single supply voltage VCC of 3.3 or 1.8 V
• Ultra low active (320 μA) and standby power consumption (0.1 μA)
• Industrial temperature option with -40°C to 105°C
• Pin-to-pin PCIe 4.0 linear redriver option with DS160PR421 and DS160PR412
• Available in 3.5 mm x 9 mm QFN package
