MICROCHIPDatasheet (PDF)

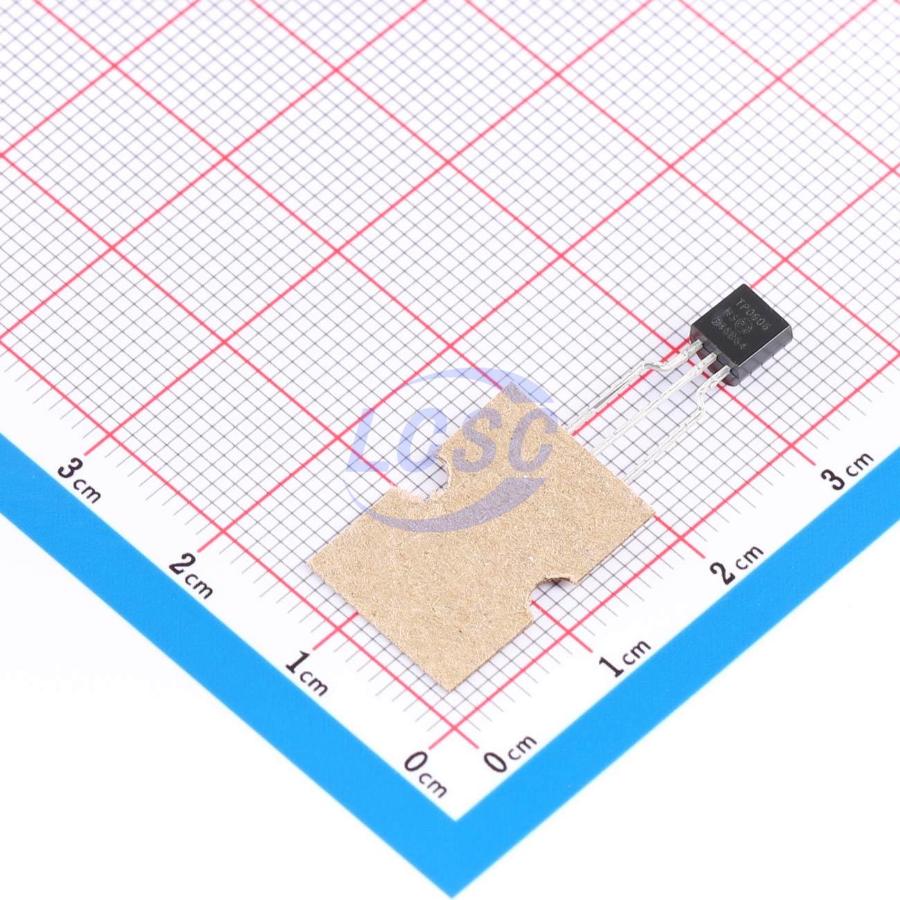

TP0606N3-G-P002
740mW 40V 1.5Ω@10V 1 P-Channel P-Channel TO-92-3 Single FETs, MOSFETs RoHS
TO-92-3ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TP0606N3-G-P002
- Store part #
- C629200
- Package / case
- TO-92-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C629200
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹307.23 | ₹307.23 |
| 10+ | ₹300.29 | ₹3,002.90 |
| 30+ | ₹295.52 | ₹8,865.60 |
| 100+ | ₹290.76 | ₹29,076.00 |
1 × ₹307.23
₹307.23
excl. GST
₹362.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TP0606N3-G-P002
₹307.23 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 85pF
- Ciss-Input Capacitance
- 150pF
- Pd - Power Dissipation
- 740mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 1.5Ω@10V
- Number
- 1 P-Channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.418 g
Overview
The TP0604 low-threshold enhancement-mode (normally-on) transistor employs a Vertical Double-diffused Metal Oxide Semiconductor (VDMOS) structure combined with a proven silicon-gate fabrication process. This combination gives the device the power-handling capability of a bipolar transistor, along with the high input impedance and positive temperature coefficient inherent to MOS devices. As a characteristic of all MOS structures, this device is immune to thermal runaway and thermally induced second breakdown. Microchip's vertical DMOS FETs are well suited for a wide range of switching and amplification applications requiring ultra-low threshold voltage, high breakdown voltage, high input impedance, low input capacitance, and fast switching speed.
Applications
- Logic level interface (TTL and CMOS compatible)
- Solid state relay
- Battery-powered systems
- Photovoltaic drivers
- Analog switches
- General-purpose line drivers
- Telecom switches
Key features
- Maximum low threshold 2.4V
- High input impedance
- Low input capacitance (95pF)
- Fast switching speed
- Low on-resistance
- No secondary breakdown
- Low input and output leakage current
