MICROCHIPDatasheet (PDF)

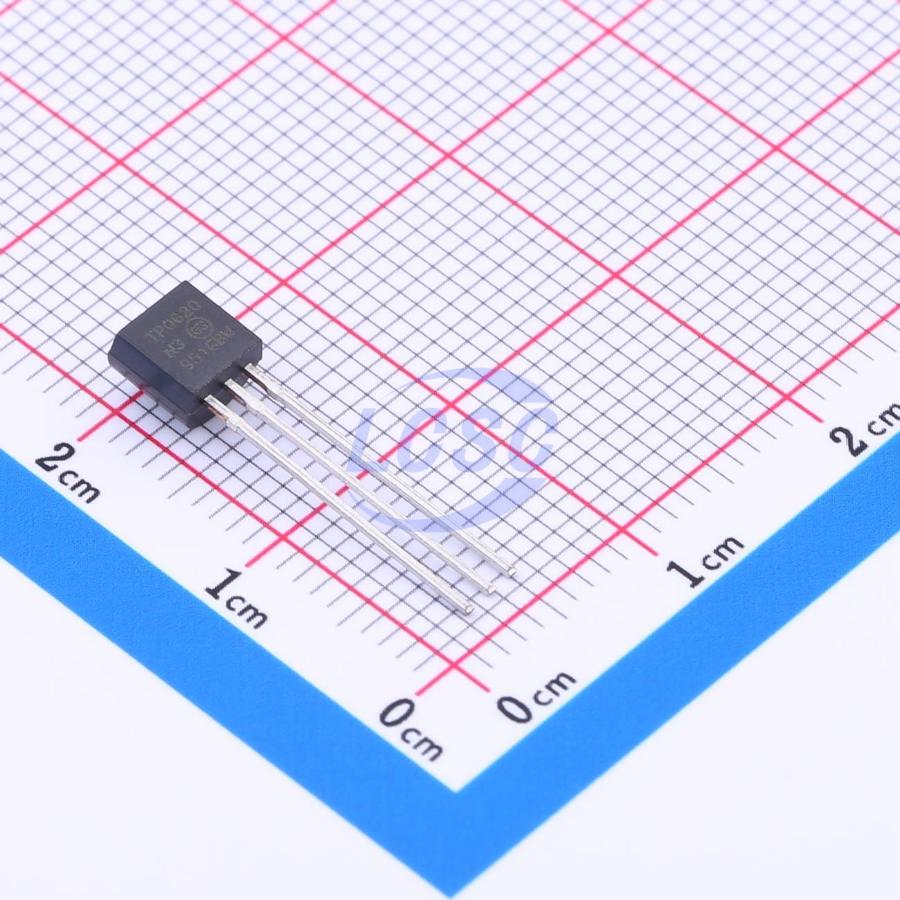

TP0620N3-G
1W 200V 750mA 7Ω@10V 1 P-Channel P-Channel TO-92-3 Single FETs, MOSFETs RoHS
TO-92-3ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TP0620N3-G
- Store part #
- C632587
- Package / case
- TO-92-3
- Category
- Single FETs, MOSFETs
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C632587
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹539.72 | ₹539.72 |
| 10+ | ₹531.77 | ₹5,317.70 |
| 30+ | ₹526.61 | ₹15,798.30 |
| 100+ | ₹504.68 | ₹50,468.00 |
1 × ₹539.72
₹539.72
excl. GST
₹636.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
TP0620N3-G
₹539.72 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 30pF
- Ciss-Input Capacitance
- 85pF
- Pd - Power Dissipation
- 1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 750mA
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 7Ω@10V
- Number
- 1 P-Channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
The TP0620 low-threshold enhancement-mode (normally-off) transistor employs a vertical double-diffused metal-oxide-semiconductor (DMOS) structure combined with a proven silicon-gate fabrication process. This combination gives the device the power-handling capability of a bipolar transistor along with the high input impedance and positive temperature coefficient inherent to MOS devices. As with all MOS structures, the device is immune to thermal runaway and thermally induced second breakdown. Microchip's vertical DMOS FETs are well suited for a wide range of switching and amplification applications that typically demand ultra-low threshold voltage, high breakdown voltage, high input impedance, low input capacitance, and fast switching speed.
Applications
- Logic level interface (TTL and CMOS compatible)
- Solid state relay
- Battery-powered systems
- Photovoltaic drivers
- Analog switches
- General-purpose line drivers
- Telecom switches
Key features
- Maximum low threshold 2.4V
- High input impedance
- Low input capacitance (typical 85pF)
- Fast switching speed
- Low on-resistance
- No secondary breakdown
- Low input and output leakage current
