TECH PUBLICDatasheet (PDF)

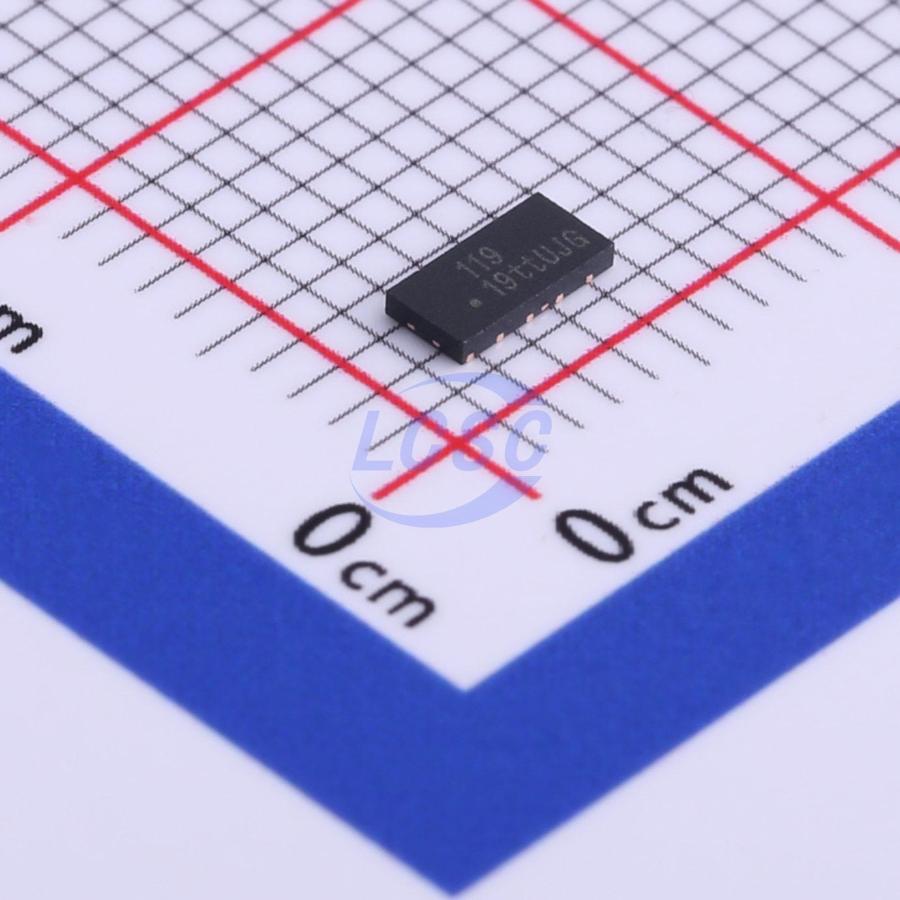

TP1065-06F
23VC Clamp ESD DIODE DFN4120-10
DFN4120-10RoHSActive
ESD DIODE 5VWM 23VC DFN4120-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP1065-06F
- Store part #
- C521961
- Package / case
- DFN4120-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,425 in stock
#C521961
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.67 | ₹73.35 |
| 50+ | ₹11.47 | ₹573.50 |
| 150+ | ₹9.87 | ₹1,480.50 |
| 500+ | ₹8.67 | ₹4,335.00 |
| 3,000+ | ₹7.71 | ₹23,130.00 |
| 6,000+ | ₹7.22 | ₹43,320.00 |
5 × ₹14.67
₹73.35
excl. GST
₹86.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP1065-06F
₹73.35 for 5 + GST
Specifications
- Clamping Voltage
- 23V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- 6
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
Applications
- USB 3.0
- HDMI 1.4
- High-Speed Data Lines
Key features
- Ultra low capacitance: 0.3pF typical
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 3A (8/20μs)
- RoHS Compliant
