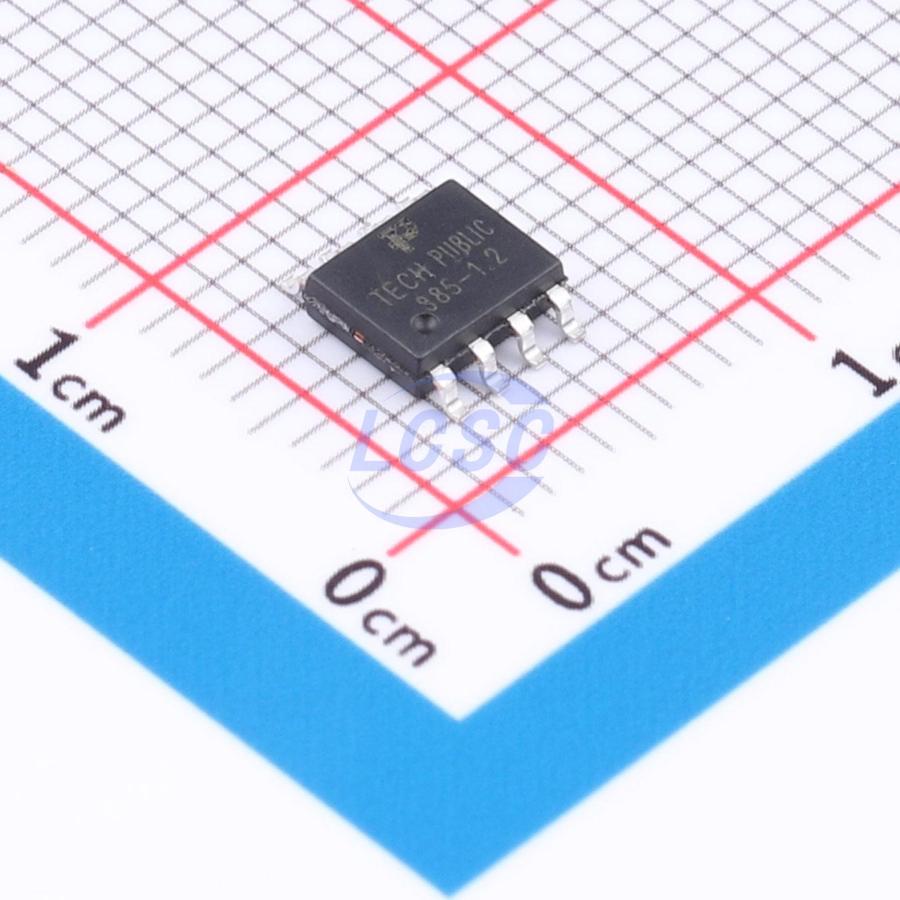

TP385S8-1.2
1.24V ±0.3% 20mA Fixed SOP-8 Voltage Reference
SOP-8RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP385S8-1.2
- Store part #
- C51886173
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C51886173
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.34 | ₹66.70 |
| 50+ | ₹11.64 | ₹582.00 |
| 150+ | ₹10.80 | ₹1,620.00 |
| 500+ | ₹10.16 | ₹5,080.00 |
| 3,000+ | ₹9.66 | ₹28,980.00 |
| 6,000+ | ₹9.39 | ₹56,340.00 |
5 × ₹13.34
₹66.70
excl. GST
₹78.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP385S8-1.2
₹66.70 for 5 + GST
Specifications
- Output Voltage
- 1.24V
- Tolerance
- ±0.3%
- Minimum Cathode Current for Regulation
- 65uA
- Reference Type
- Parallel
- Output Current
- 20mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 60uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
This is a versatile, easy-to-use shunt voltage reference suitable for a wide range of applications. This pin-fixed output device requires no external capacitors and remains stable when driving all capacitive loads. Additionally, the reference features low dynamic impedance, low noise, and a low temperature coefficient, ensuring stable output voltage over a wide operating current and temperature range. The SOP-8 package saves board space. The typical minimum operating current of 25μA makes it an ideal choice for portable applications. Rated operating temperature range is -40°C to +125°C.
Applications
- Battery-powered equipment
- Data acquisition systems
- Precision audio components
- Instrumentation
- Process control
Key features
- Low output noise
- No output capacitor required
- Capacitive load tolerant
- Low temperature drift: typical 4mV
- Low temperature coefficient: max 100 ppm/°C
- Fixed reverse breakdown voltage 1.24V
- Output voltage tolerance ±0.3%
- SOP-8 package
