TECH PUBLIC

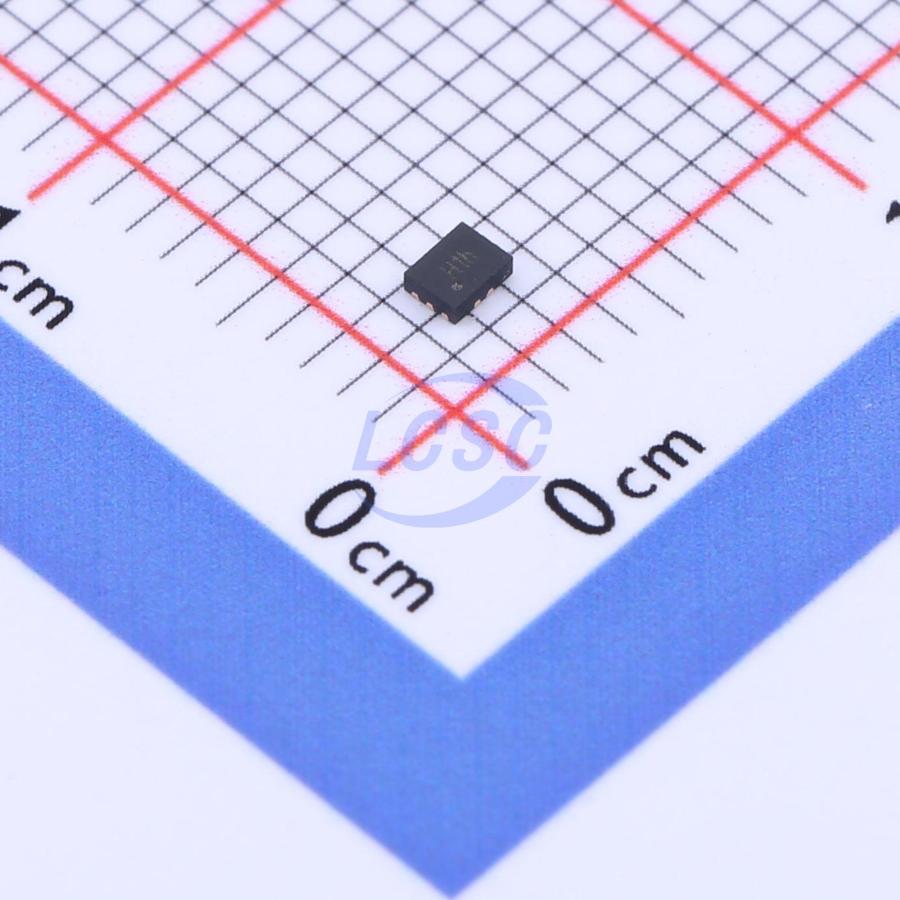

TP3USB31Q10

2 480Mbps USB 2.0 UTQFN-10L(1.4x1.8) Interface Controllers

UTQFN-10L(1.4x1.8)RoHSActive

LOW-POWER, TWO-PORT, HIGH-SPEED, USB2.0 (480Mbps) DPDT ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: TP3USB31Q10
Store part #: C2987071
Package / case: UTQFN-10L(1.4x1.8)
Category: Interface Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,819 in stock

#C2987071

Stock & price checked 47 h ago

Quantity	Unit price	Pack price
1+	₹56.16	₹56.16
10+	₹50.31	₹503.10
30+	₹47.50	₹1,425.00
100+	₹44.68	₹4,468.00
500+	₹38.82	₹19,410.00
1,000+	₹37.96	₹37,960.00

Quantity (min 1)

1 × ₹56.16

₹56.16

excl. GST

₹66.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP3USB31Q10

₹56.16 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.3V~5V
Number of ports: 2
Features: Power-off protection
Data Rate: 480Mbps
Quiescent Supply Current: 1uA
USB Protocol: USB 2.0

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.026 g

Overview

The TP3USB31 is a Low-Power, Two-Port, High-Speed, USB2.0(480Mbps) double-pole double-throw (DPDT) Analog Switch featuring an On-Resistance of 4.5Ω at VCC = 3V and a Low On Capacitance 3.7pF Typical. The TP3USB31 is compatible with the requirements of USB2.0 and the wide bandwidth needed to pass the third harmonic, resulting in signals with minimum edge and phase distortion. Superior channel-to-channel crosstalk also minimizes interference. Break-before-make function for both parts eliminates signal disruption during switching from preventing both switches being enabled simultaneously. The TP3USB31 contains special circuitry on the switch 1/O pins for applications where the Vcc supply is powered-off (vcc = 0), which allows the device to withstand an over-voltage condition. This device is designed to minimize current consumption even when the control voltage applied to the Sel pin is lower than the supply voltage (VCC). This feature is especially valuable to ultra-portable applications, such as cell phones, allowing for direct interface with the general purpose I/Os of the baseband processor. Other applications include switching and connector sharing in portable cell phones, PDAs, digital cameras, printers, and notebook computers. The TP3USB31 is available in TQFN10 (1.8x1.4) and MSOP10 packages.
