TECH PUBLICDatasheet (PDF)

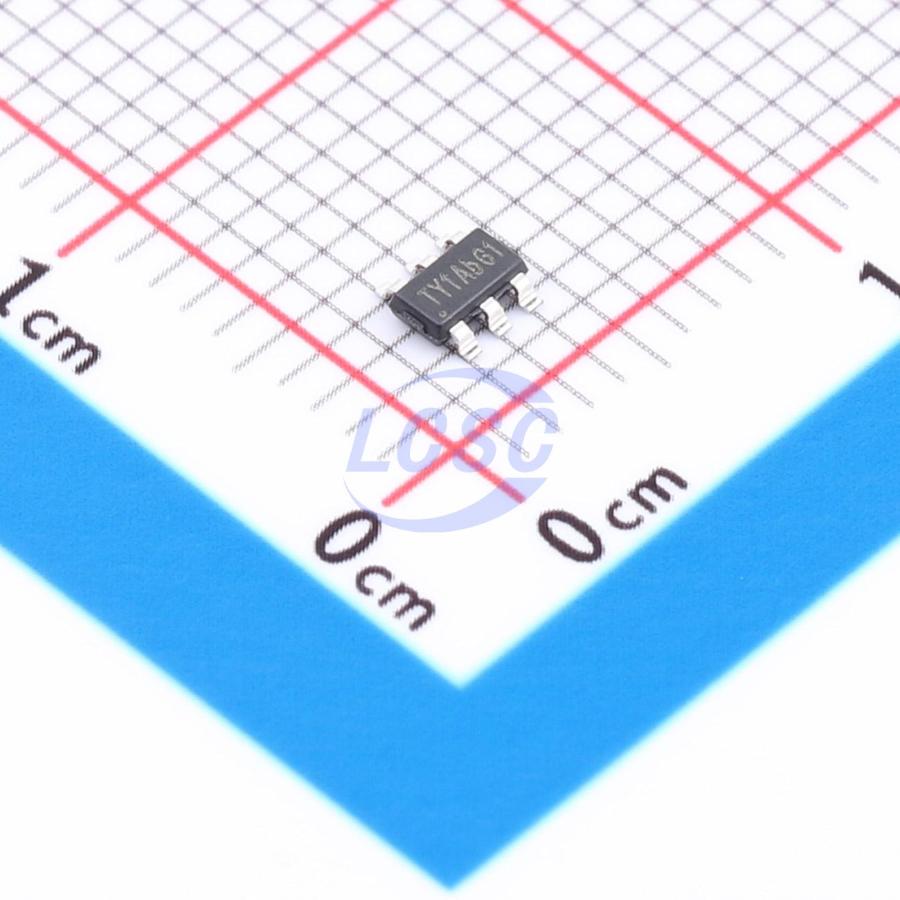

TP6130LS6-A
Step-down type 1.4MHz Adjustable 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP6130LS6-A
- Store part #
- C52205267
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
975 in stock
#C52205267
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.67 | ₹128.35 |
| 50+ | ₹20.04 | ₹1,002.00 |
| 150+ | ₹17.64 | ₹2,646.00 |
| 500+ | ₹14.62 | ₹7,310.00 |
| 3,000+ | ₹13.28 | ₹39,840.00 |
| 6,000+ | ₹12.48 | ₹74,880.00 |
5 × ₹25.67
₹128.35
excl. GST
₹151.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP6130LS6-A
₹128.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 1.4MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 410uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
This device is a high-frequency, synchronous rectification, step-down switch-mode converter with integrated internal power MOSFETs. It delivers a compact solution across a wide input supply range, capable of 1.5A peak output current with excellent load and line regulation. The device requires minimal external general-purpose components and comes in a space-saving SOT23-6 package.
Applications
- Network equipment
- IP cameras
- LCD TVs
- DSL modems
- Access point routers
- Digital TVs
- Set-top boxes
Key features
- Wide input voltage range: 4.0V to 30V
- Guaranteed 1.2A continuous load current
- 0.807V reference voltage with 2% accuracy
- Cycle-by-cycle peak current limiting
- Instant-on PWM architecture for fast transient response
- Internal soft-start for inrush current limiting
- Current limit protection
- Internal switch (high-side/low-side) low RDS(on): 200/150 mΩ
- Fixed 1.4MHz switching frequency
- RoHS and halogen-free compliant
- Compact package: SOT23-6
