TECH PUBLICDatasheet (PDF)

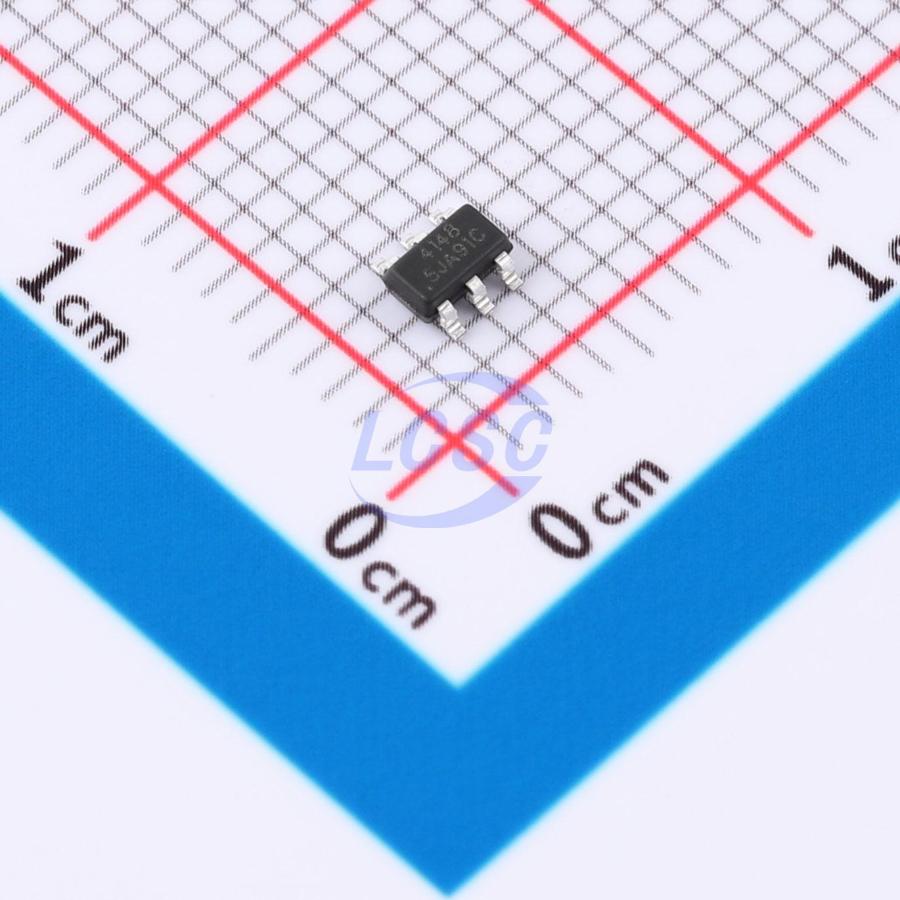

TP6158BS6
Step-down type 900kHz Adjustable 600mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP6158BS6
- Store part #
- C52205268
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,670 in stock
#C52205268
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.29 | ₹92.29 |
| 10+ | ₹74.75 | ₹747.50 |
| 30+ | ₹65.98 | ₹1,979.40 |
| 100+ | ₹57.21 | ₹5,721.00 |
| 500+ | ₹51.99 | ₹25,995.00 |
| 1,000+ | ₹49.28 | ₹49,280.00 |
1 × ₹92.29
₹92.29
excl. GST
₹108.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP6158BS6
₹92.29 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 900kHz
- Features
- Light load efficient mode;Cycle-by-cycle current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~48V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
This device features a wide input voltage range of 8V to 48V, minimizing the need for external surge suppression components, making it ideal for industrial applications with wide input ranges and multi-cell battery pack applications. It integrates a power MOSFET and employs a peak current sensing mode architecture with internal compensation, delivering a rated maximum output current of 0.6A along with excellent load and input transient response.
Applications
- IP cameras
- LCD TVs
- Smart home applications
- Telecom and data communication systems
- Power over Ethernet applications
Key features
- Wide input voltage range: 8V~48V
- Output current up to 0.6A
- 900kHz switching frequency
- Typical shutdown current as low as 1μA
- Stable operation with low ESR ceramic output capacitors
- SKIP mode for ultra-high light-load efficiency
- 0.8V voltage reference
- Integrated 450mΩ high-side MOSFET
- Cycle-by-cycle current limit protection
- Peak current mode with internal compensation
- Thermal shutdown protection
- Compact package: SOT23-6
