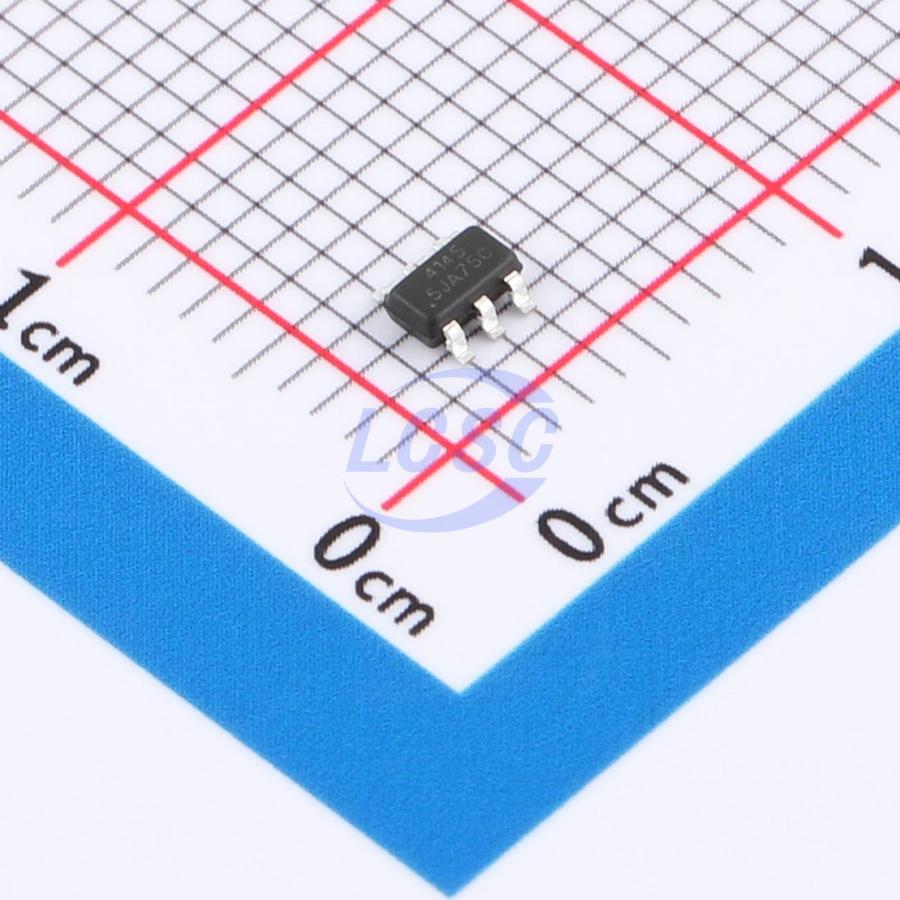

TP6168BS6

This is a step-down DC/DC regulator with an integrated switch, operating in SKIP control mode. By combining low quiescent current with high switching frequency, it achieves high efficiency across a wide load current range. In SKIP mode, the internal power MOSFET switches the inductor current in short "burst" cycles, followed by a sleep period during which the power switch turns off and the load current is supplied by the output capacitor. Under light-load conditions, the burst period occupies a small fraction of the total cycle time, minimizing average supply current and significantly improving light-load efficiency.

Applications

• IP cameras
• LCD TVs
• Smart home applications
• Telecom & datacom systems
• Power over Ethernet (PoE) applications
• General-purpose voltage regulators and buck converters

Key features

• Wide input voltage range: 4.5V~55V
• Up to 1A output current
• 1.2MHz switching frequency
• Typical shutdown current as low as 4μA
• Stable operation with low-ESR ceramic output capacitors
• SKIP mode for high light-load efficiency
• 0.812V voltage reference
• Integrated 600mΩ high-side MOSFET
• Cycle-by-cycle current limit protection
• Peak current mode with internal compensation
• Thermal shutdown protection
• Compact SOT23-6 package
