TECH PUBLICDatasheet (PDF)

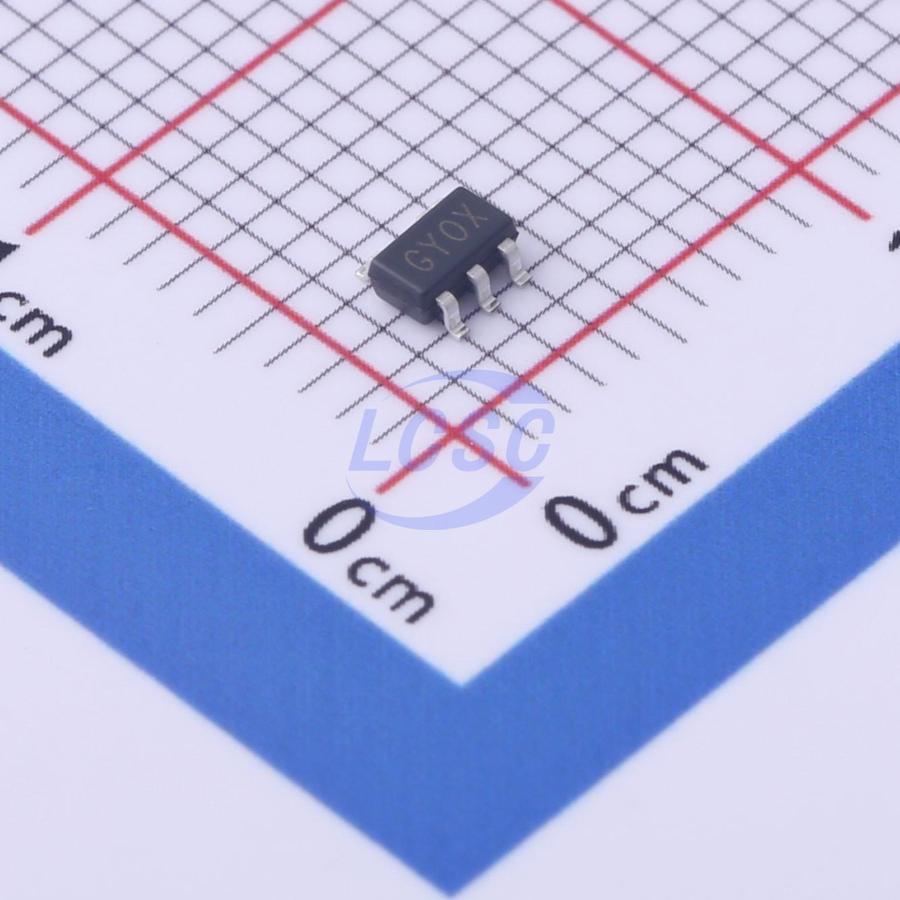

TP62565DBVR
Step-down type 1.5MHz Adjustable 1.5A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
1.5A 1.5MHz Synchronous Buck Converter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP62565DBVR
- Store part #
- C2841425
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,935 in stock
#C2841425
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.40 | ₹207.00 |
| 50+ | ₹32.64 | ₹1,632.00 |
| 150+ | ₹28.88 | ₹4,332.00 |
| 500+ | ₹24.20 | ₹12,100.00 |
| 3,000+ | ₹21.51 | ₹64,530.00 |
| 6,000+ | ₹20.26 | ₹1,21,560.00 |
5 × ₹41.40
₹207.00
excl. GST
₹244.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP62565DBVR
₹207.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
TP62565 is a high-efficiency monolithic synchronous buck regulator featuring a fixed-frequency, current-mode architecture. An adjustable version is available. Quiescent current at no load is 40 μA, dropping to <1 μA in shutdown. The 2.5 V to 6 V input voltage range makes the TP6815S5 well suited for single-cell Li-ion battery-powered applications. 100% duty cycle enables low-dropout operation, extending battery life in portable systems. PWM/PFM mode operation provides very low output ripple voltage for noise-sensitive applications. The switching frequency is internally set at 1.5 MHz, allowing the use of small SMD inductors and capacitors. The 0.6 V feedback reference voltage readily supports low output voltages. The TP62565 is available in a SOT23-5 package.
Key features
- High efficiency: up to 96%
- Input voltage range: 2.5V to 6V
- 1.5MHz constant frequency operation
- No Schottky diode required
- Low dropout operation: 100% duty cycle
- High-efficiency PFM mode at light load
- Over-temperature protection
- Low quiescent current: 40μA
- Short-circuit protection
- Inrush current limiting and soft-start
- Available in SOT23-5 package
