TECH PUBLIC

TP6326BS6

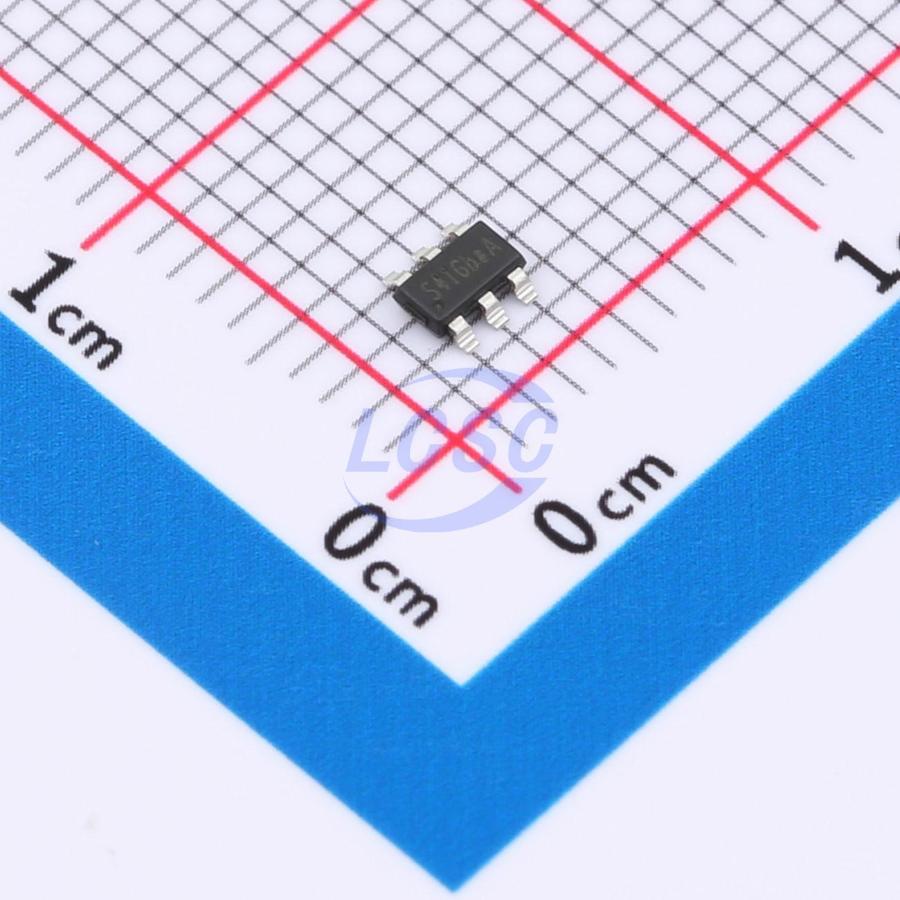

Buck Switching Regulator IC Adjustable 1 Output 3A SOT-23-6

SOT-23-6RoHSActive

3.0A Synchronous Step-Down Converter

Manufacturer: TECH PUBLIC
Manufacturer part #: TP6326BS6
Store part #: C22435124
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,925 in stock

#C22435124

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹21.96	₹109.80
50+	₹17.08	₹854.00
150+	₹14.99	₹2,248.50
500+	₹12.37	₹6,185.00
3,000+	₹11.21	₹33,630.00
6,000+	₹10.52	₹63,120.00

Quantity (min 5, multiples of 5)

5 × ₹21.96

₹109.80

excl. GST

₹129.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP6326BS6

₹109.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 500kHz
Number of Outputs: 1
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 300uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.032 g

Overview

This product features a wide input voltage range of 4.5V to 18V, minimizing the need for external surge suppression components, making it ideal for wide-input-range industrial applications and multi-cell battery pack applications. It integrates a power MOSFET and employs a peak current sensing mode architecture with internal compensation, delivering a rated maximum output current of 3.0A along with excellent load and input transient response.
